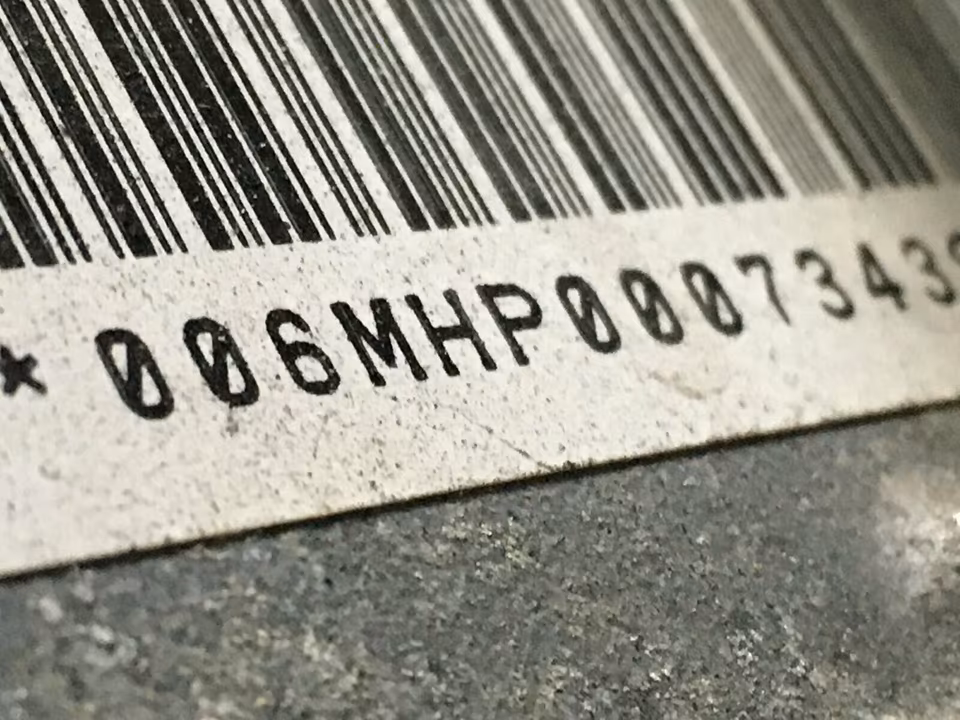

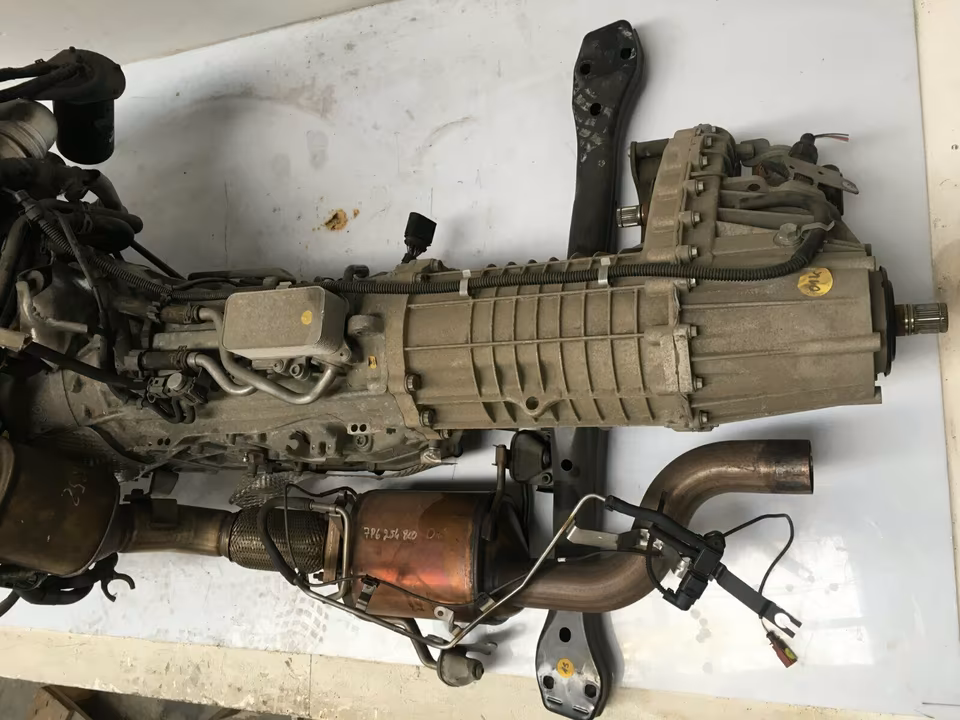

4×4 automatic transmission Audi Q7 3.0tdi code MHP year 2006 with 9,599km

Transmission Type: 6-Speed Tiptronic (Aisin Warner 09D) Mileage: 9,599 km (Extremely Low / Collector-Grade Condition) Year: 2006

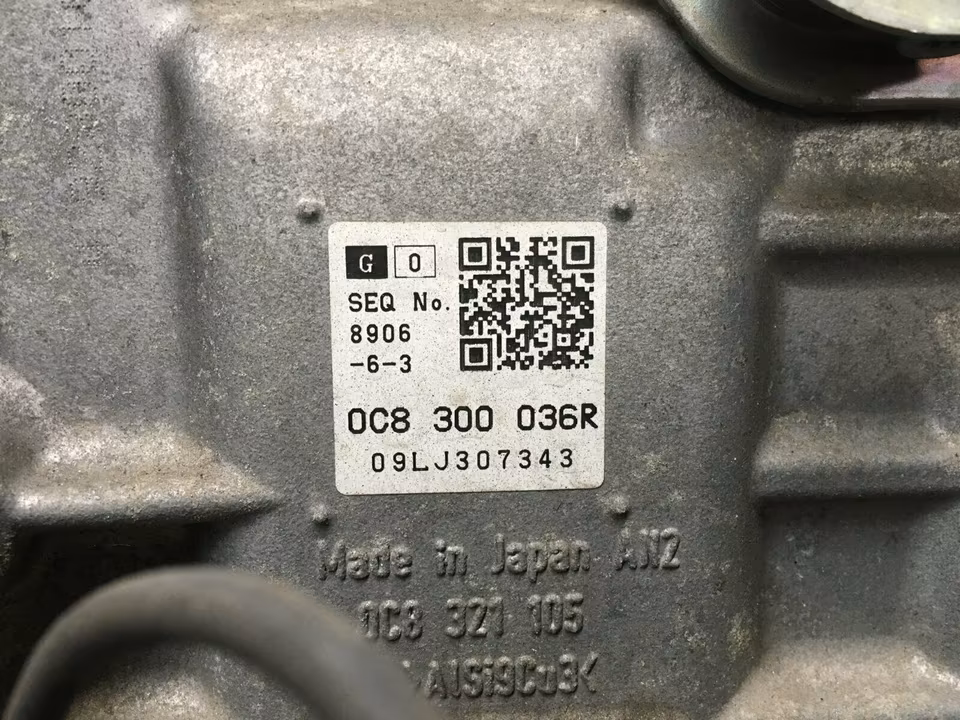

The MHP code refers to the robust 6-speed automatic gearbox used in the early first-generation (4L) Audi Q7. Manufactured by Aisin Warner (the TR-60SN model), this transmission was specifically chosen for the Q7 to handle the high-torque output of the 3.0 TDI V6 (BUG/ASB engine) while maintaining towing capacities of up to 3,500 kg.

Technical Specifications

• Gearbox Architecture: 6-Speed Longitudinal Automatic with Torque Converter.

• Torque Capacity: Rated for up to 750 Nm, providing a significant safety margin for the 3.0 TDI’s 500 Nm.

• All-Wheel Drive: Integrated Torsen-based Quattro system (permanent 4×4).

• Shift Logic: DSP (Dynamic Shift Program) which adapts to the driver’s style and road conditions.

Key Performance Characteristics

• Low Mileage Note: At 9,599 km, this unit is essentially in “factory-new” mechanical condition. It is a rare find for a 2006 component, likely sourced from a dry-storage vehicle or a low-use government/exhibition car.

• Towing Prowess: The MHP gearbox features heavy-duty planetary gear sets and a reinforced valve body, making it significantly more durable for heavy loads than the later 8-speed units used in lighter applications.

• Off-Road Utility: Paired with the Q7’s low-range transfer case logic, the MHP provides steady, high-torque delivery at low speeds, essential for navigating steep inclines or loose terrain.

Professional Installation & Technical Notes

Despite the ultra-low mileage, a 20-year-old transmission requires specific care before being put back into service:

1. Fluid & Seals: Rubber seals and transmission fluid can age even without use.

   • Fluid: Requires Audi G 055 025 A2 (standard JWS 3309 spec).

   • Action: It is highly recommended to flush the old fluid and replace the pan gasket/filter before installation to prevent “dried seal” leaks once the unit reaches operating temperature.

2. Coding (VCDS/ODIS): Unlike later “Component Protection” units, the 2006 09D transmissions are generally easier to swap. However, you must perform a Kick-Down Alignment and Adaptation Reset via VCDS (Ross-Tech) so the TCU (Transmission Control Unit) can learn the specific wear-in characteristics of the new vehicle’s engine.

3. Oil Cooler Inspection: Ensure the Q7’s external transmission oil cooler is flushed. Any debris from a previous transmission failure can contaminate this pristine MHP unit instantly.

4. Harness Check: Inspect the 14-pin round connector for “oil wicking.” Even with low mileage, oil can sometimes seep into the harness over decades of sitting, which causes communication errors with the ECU.

Condition Tip: Given the 9,599 km mileage, this unit should have zero “clunking” or “flare” between shifts. If any shifting irregularities occur, they are almost certainly software-related or due to old fluid, not mechanical wear.
