Aston Martin DB11 control unit HY5312650AA

part number HY53-12A650-AA (or HY5312A650AA) refers to the Bosch Engine Control Unit (ECU/ECM) for the Aston Martin DB11 equipped with the 5.2L Twin-Turbo V12 engine.

It is a sophisticated Bosch ME17.8.31 management system responsible for controlling fueling, boost pressure for the twin turbochargers, and the cylinder deactivation system that allows the V12 to run as a straight-six under low load.

1. Technical Overview

• Manufacturer: Bosch (Hardware type ME17.8.31).



• Application: DB11 V12 (2016–2023), DBS Superleggera, and the 2019+ Vantage V12.



• Engine Type: AE31 (5.2L V12 Twin-Turbo).

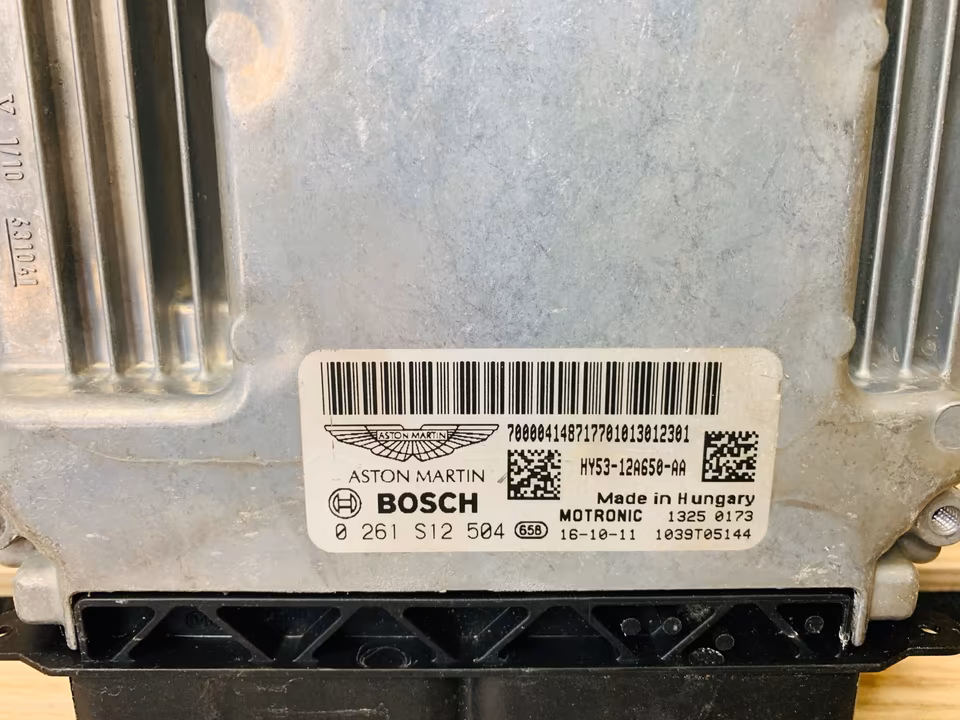

• Common Bosch IDs: You may see cross-referenced numbers like 0261S12504 or A0939010800 on the label.

2. Critical Coding Information

If you are purchasing a replacement unit (new or used), be aware that it is not “Plug and Play.”

• Immobilizer Binding: This ECU is part of the car’s security handshake. A used ECU from another car will be “locked” to the donor VIN.

• The “Virgin” State: A brand-new unit from Aston Martin comes as a blank slate and must be programmed using the AMDS (Aston Martin Diagnostic System).

• Cloning Option: If your original ECU is physically damaged but the internal data is intact, specialists (like ECU Maverick or Bosch Repair Service) can “clone” your data onto a used unit, making it a direct swap without dealer programming.

3. Common Faults & Symptoms

If you are diagnosing a failure of this unit, look for:

• Misfires across multiple banks: The V12 ECU manages two banks of six cylinders; internal driver failure can cause an entire bank to go “dark.”

• No Communication: If the OBDII scanner cannot “see” the ECU, check the main power relay and the grounding pins on the connector first, as these are prone to corrosion if moisture enters the engine bay.

• Turbo Gate Errors: Incorrect boost readings or limp-mode triggers that aren’t resolved by replacing the sensors can sometimes point to a corrupted ECU map or hardware failure in the boost-controller circuit.

Quick Reference Table
