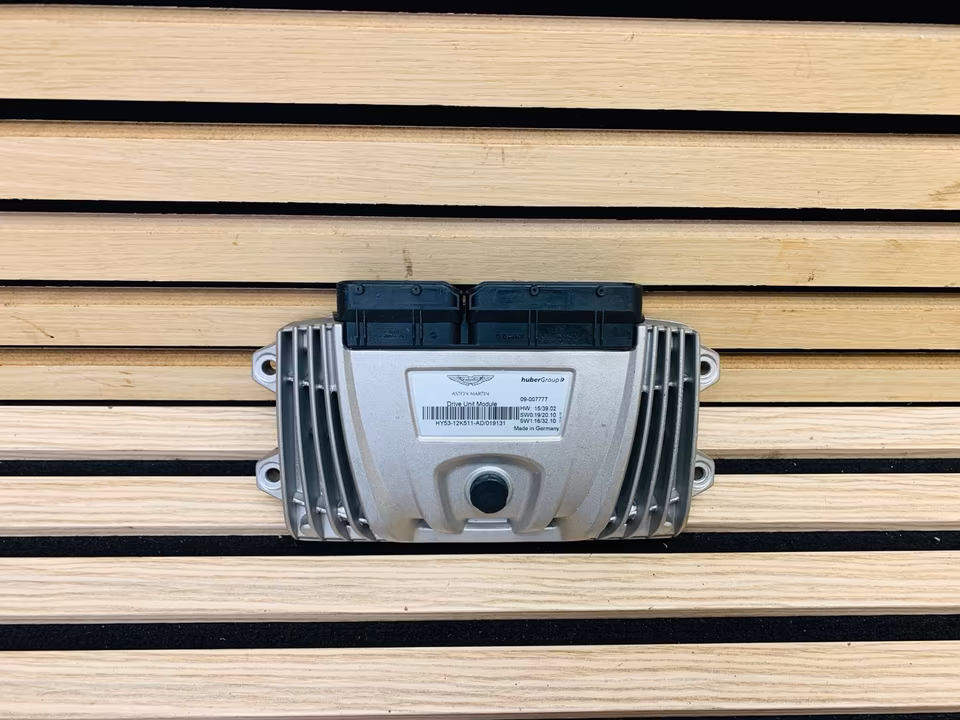

Aston Martin DB11 control unit HY5312K511AD

part number HY53-12K511-AD (or HY5312K511AD) identifies the Drivetrain Control Module (often categorized as the Chassis Control Module) for the Aston Martin DB11.

Unlike the ECU which manages the engine, this module acts as the “brain” for the vehicle’s dynamic behavior, coordinating the relationship between the engine, transmission, and active suspension.

1. Core Functions

This module is responsible for interpreting the driver’s selected modes (GT, Sport, and Sport+) and adjusting the following systems in real-time:

• Adaptive Damping: Controls the stiffness of the Skyhook suspension system.

• Torque Vectoring by Braking: Manages individual wheel braking to assist with turn-in and cornering stability.

• Active Aerodynamics: Operates the AeroBlade system (the air intakes in the C-pillar that exit through the rear decklid).

• Powertrain Handshaking: Communicates directly with the Bosch engine ECU and the ZF 8-speed transmission controller to ensure smooth shifts and throttle response.

2. Part Number Evolution

The “AD” suffix indicates a later-revision hardware or software version.

• HY53-12K511-AB/AC: Earlier versions found on 2017–2018 Launch Edition V12s.

• HY53-12K511-AD: A common replacement and production part for 2019+ models, featuring refined algorithms for the suspension damping and smoother AeroBlade deployment.

3. Common Diagnostic Symptoms

If this module fails or develops a communication fault (CAN bus error), you will likely see:

• Suspension Fault Warning: The car may default to its firmest setting (Limp Mode for the shocks).

• “AeroBlade Failure” Message: The active aero system will stay in a fixed position.

• Drive Mode Selection Disabled: The car may get “stuck” in GT mode and refuse to switch to Sport+.

• Traction/Stability Control Warnings: Since it handles torque vectoring, a failure here usually triggers the ESC/DSC yellow warning lights.

4. Technical & Installation Notes

• Coding Required: Like most DB11 modules, this unit is not “Plug and Play.” If you install a new or used unit, it must be configured to the vehicle’s VIN using the AMDS (Aston Martin Diagnostic System) to ensure it knows whether the car is a V8 or V12, as the damping and aero maps differ.

• Location: The module is typically housed in a protected area of the cabin or trunk (boot) area to keep it away from engine heat and moisture.
