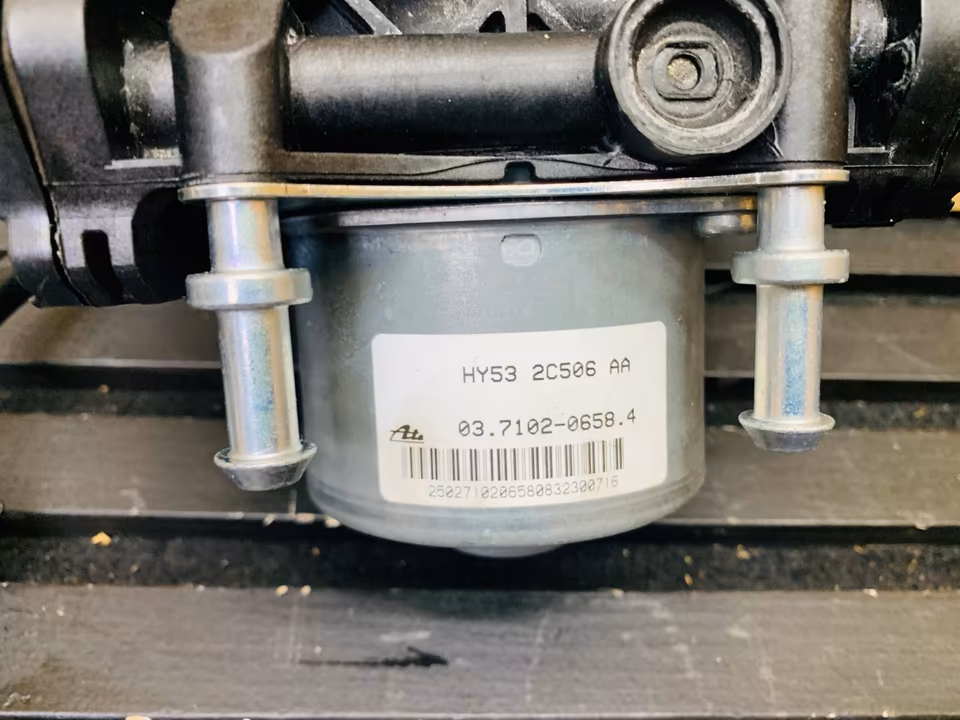

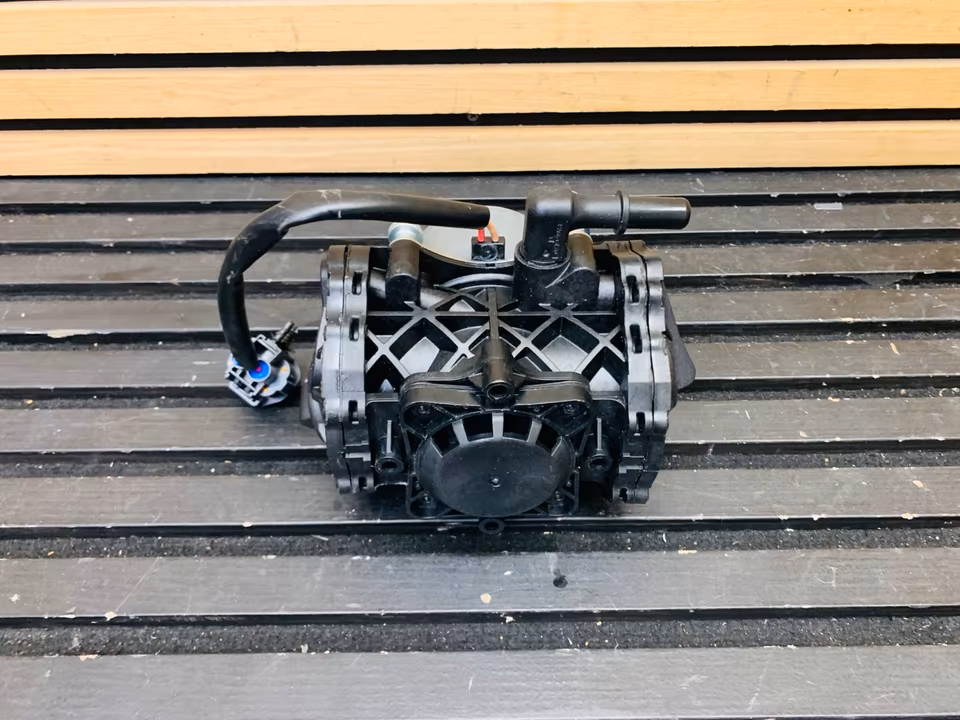

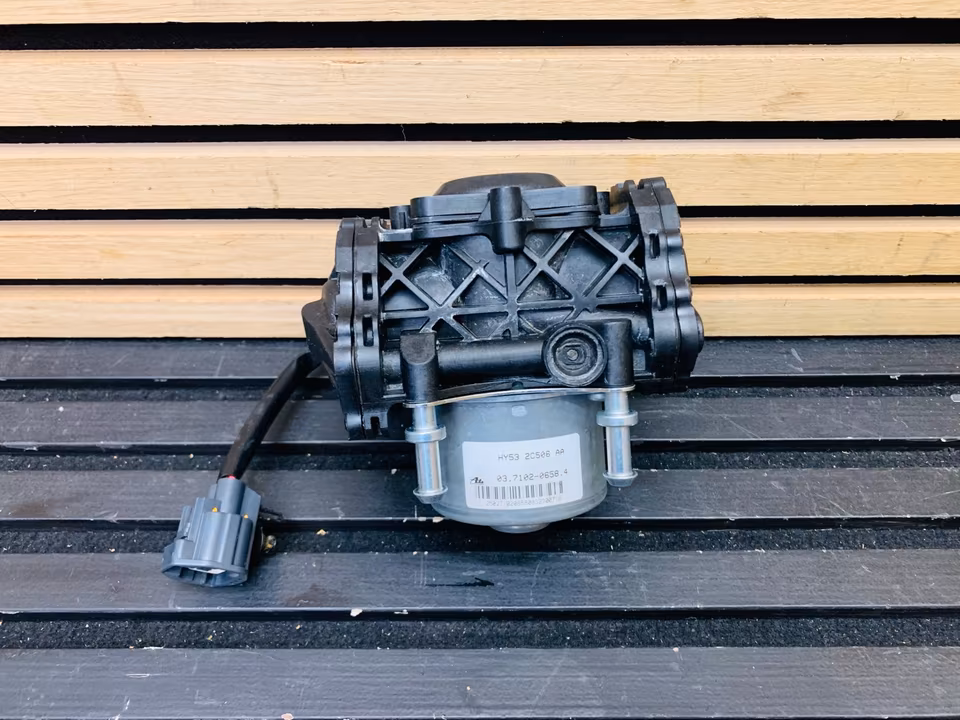

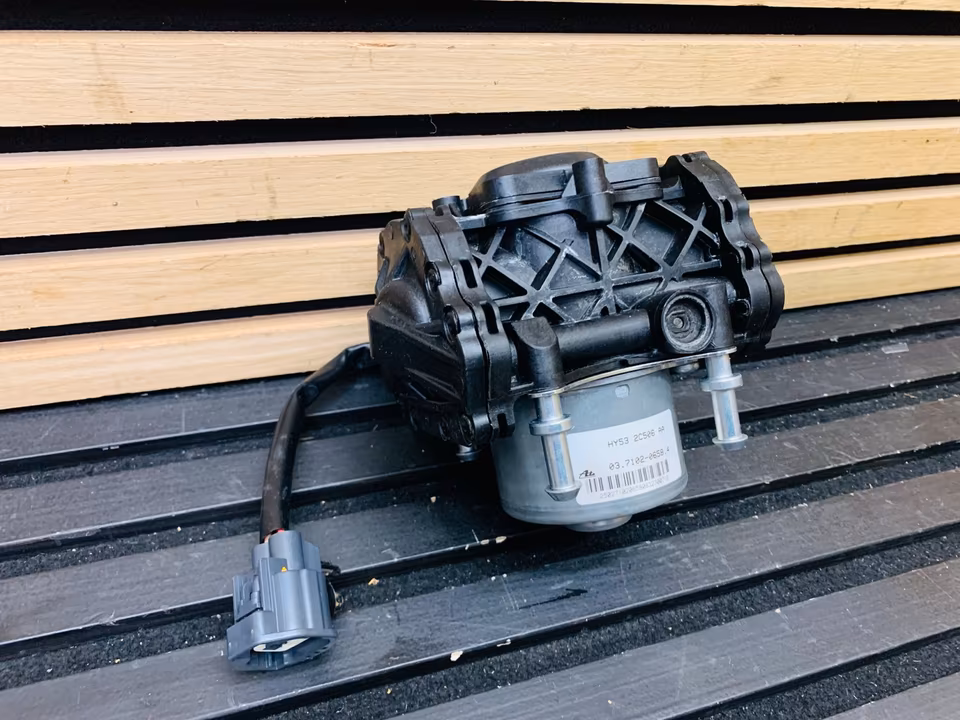

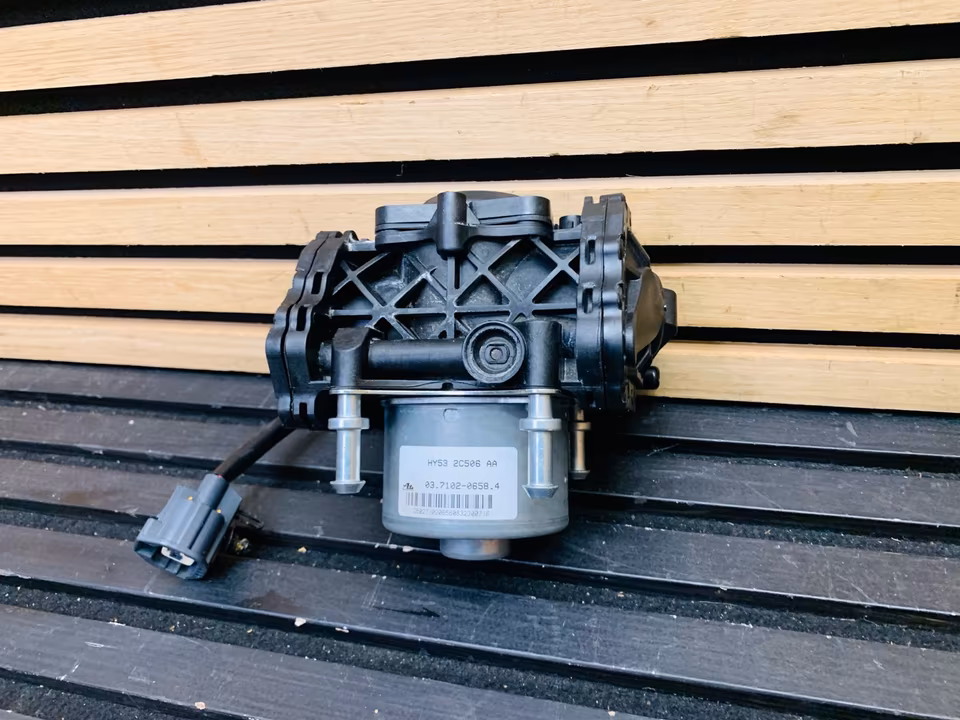

Aston Martin DB11 pump HY532C506AA

part number HY53-2C506-AA (or HY532C506AA) identifies the Electronic Brake System Vacuum Pump for the Aston Martin DB11.

In modern turbocharged cars like the DB11, engine vacuum can be inconsistent. This electric pump ensures that the brake booster always has a steady supply of vacuum, providing you with consistent power-assisted braking regardless of engine load or turbo boost levels.

1. Technical Role

• System: Brake Actuation / Power Brakes.

• Function: It provides supplemental vacuum to the brake servo (booster). This is especially critical during cold starts or high-load maneuvers where the engine’s intake manifold vacuum is insufficient.

• Compatibility: * Aston Martin DB11 (V8 & V12 models, 2016–2023)

  • Aston Martin DBS Superleggera (2018–2024)

  • Aston Martin Vantage (AM6, 2019+ models)

2. Common Symptoms of Failure

If this electric pump begins to fail, you will likely encounter the following:

• “Hard” Brake Pedal: You may notice the brake pedal feels significantly stiffer, especially immediately after a cold start or during spirited driving.

• Audible Whirring/Buzzing: Since it is an electric motor, a failing internal bearing often results in a loud, high-pitched buzzing sound coming from the engine bay or near the firewall when the ignition is on.

• Brake System Warning Lights: The car’s ECU monitors the vacuum pressure; if the pump fails to meet the required threshold, it will trigger a “Brake System Fault” or “Service Required” message on the digital instrument cluster.

3. Market Pricing & Sourcing
