Aston Martin DB11 Radiator JY536A642AB

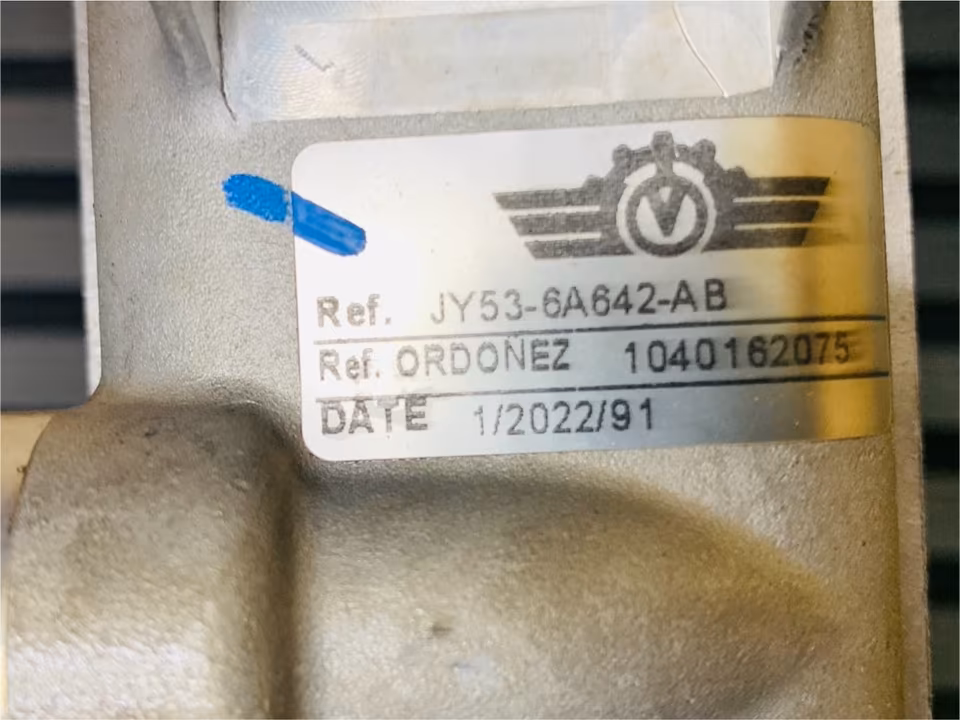

part number JY53-6A642-AB (or JY536A642AB) refers to the Engine Oil Cooler for the Aston Martin DB11 and the Vantage (AM6).

While often listed under “Radiators” in broad parts catalogs, it is specifically an oil-to-air heat exchanger. Because these cars use Mercedes-AMG sourced V8 engines (and specific V12 oil circuits), maintaining this part is vital for preventing thermal degradation of the engine oil.

1. Technical Specifications

• Application: * Aston Martin DB11 V8 (4.0L Twin-Turbo)

  • Aston Martin Vantage (AM6, 2018–2024)

• Type: Engine Oil Cooler (Secondary Cooling Pack).

• Material: Aluminum core with high-pressure fluid fittings.

• Location: Typically mounted in the lower front cooling stack, often behind the main radiator or in the side “cheek” of the front bumper to receive direct airflow.

2. Common Confusion: Radiator vs. Oil Cooler

If you are looking for a complete cooling overhaul, note that the DB11 has a complex “Cooling Pack” consisting of several different units:

• JY53-6A642-AB (This Part): The Engine Oil Cooler.

• HY53-8005-AA: The Main High-Temperature Radiator (for engine coolant).

• JY53-7041-AA: The Transmission Oil Cooler (specific to the rear-mounted transaxle).

3. Why This Part Fails

1. Road Debris Impact: Because it is mounted low and in the direct path of incoming air, it is highly susceptible to stone chips that can cause microscopic punctures and slow oil leaks.

2. Corrosion: Over time, salt and moisture can corrode the aluminum fins, reducing its thermal efficiency.

3. Oil Contamination: If an engine suffers a major internal failure (like spun bearings), metallic debris will become trapped in the tiny “veins” of this cooler. In these cases, it is mandatory to replace the cooler, as it is nearly impossible to flush it 100% clean.
