Aston Martin DBS DB9 Exhaust System 8G43-5E211-AB + 8G43-5E211

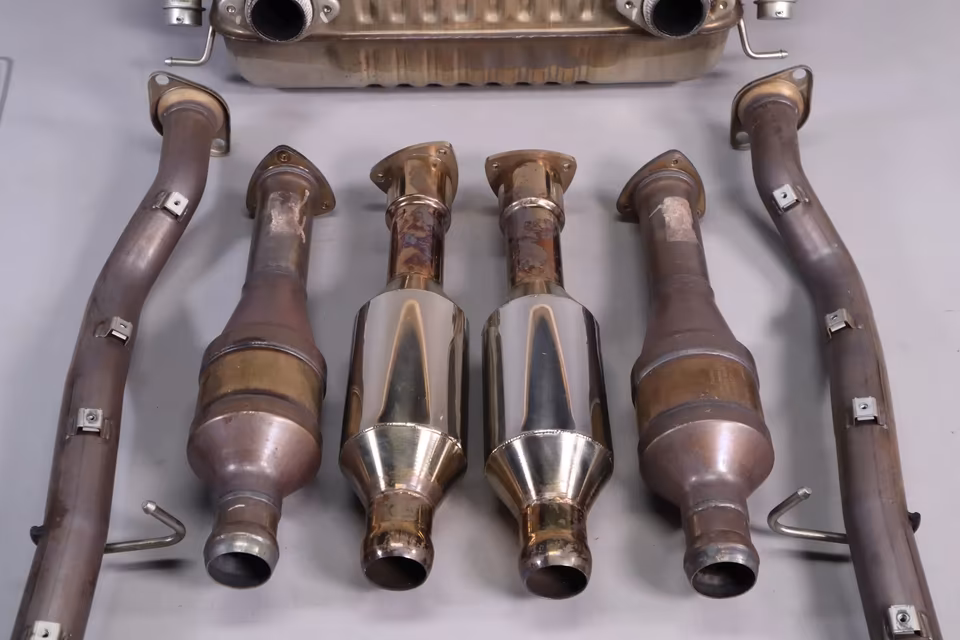

part numbers 8G43-5E211-AB and 8G43-5E211 refer to the Secondary Catalytic Converter and Pipe Assembly for the naturally aspirated 6.0L V12 engine found in the Aston Martin DB9 and DBS (2008–2012).

These units are part of the mid-section exhaust and are crucial for meeting emissions standards while maintaining the distinct V12 acoustic profile.

1. Technical Overview

• Application: Aston Martin DB9 (2004–2016) and DBS V12 (2008–2012).

• Part Type: Secondary Catalyst (Downpipe assembly).

• Material: High-grade stainless steel with a ceramic catalytic core.

• Placement: These are located “underfloor,” downstream from the primary manifold catalysts. They are often replaced in pairs (Left and Right).

2. Part Number Evolution

Aston Martin frequently updated this component. While you listed the -AB version, you may encounter these newer revisions which are generally backward compatible:

• 8G43-5E211-AB: Original production spec.

• 8G43-5E211-AC/AD: Later revisions with improved internal brick density and refined pipe welds to prevent the common “heat shield rattle.”

3. Common Maintenance & Issues

• The “Death by Misfire”: If your V12 has a faulty ignition coil (a common DB9/DBS issue), unburnt fuel can dump into these catalysts, causing them to overheat and melt the ceramic internal structure. This leads to a significant loss of power and a “sulfur” smell.

• Heat Shield Rattle: The outer heat shielding is spot-welded to the pipe. Over time, these welds can fail, causing a metallic buzzing sound at specific RPMs. Many owners “fix” this with stainless steel worm clamps, but a replacement is the only permanent solution.

• O2 Sensor Bung Corrosion: The secondary Oxygen (O2) sensors thread directly into these pipes. In wet or salty climates, the threads can seize, often requiring the whole pipe to be replaced if the sensor snaps during removal.

Cost & Sourcing (2026 Estimates)

The “Primary vs. Secondary” Warning

If you are diagnosing a “Check Engine” light with codes like P0420 or P0430, be aware that the Primary Manifold Catalysts are the ones that typically fail and can potentially damage the engine (due to ceramic dust being sucked back into the cylinders). Replacing the 8G43-5E211 secondary cats will not fix a primary cat failure.
