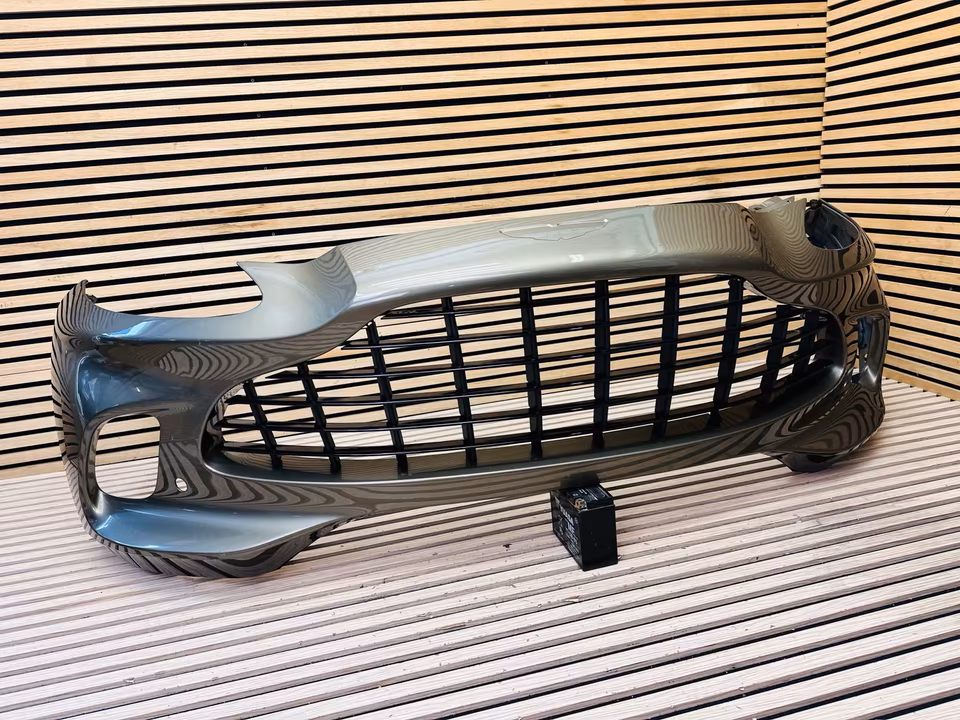

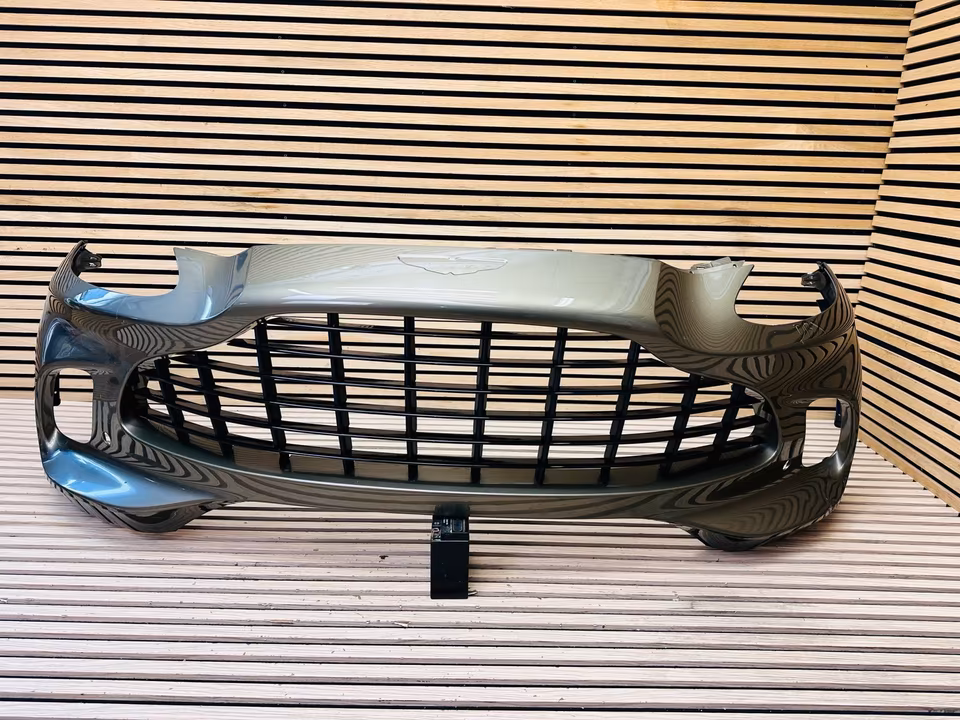

Aston Martin DBX Front Bumper Grille MY8317D957AD

part number MY83-17D957-AD refers to the Front Bumper Cover (Shell) for the Aston Martin DBX (2021–2025).

While the “grille” is often the most visible part, this specific number identifies the main structural composite panel that houses the grille, parking sensors, and air intakes.

1. Component Details

• Application: Aston Martin DBX (Base model) and early DBX707 builds.

• Material: Reinforced composite, typically supplied primed (ready for paint).

• Suffix “-AD”: This indicates a specific engineering revision. In the Aston Martin parts system, “-AD” usually denotes a version updated for better fitment or to accommodate specific hardware like the 360-degree camera or Distronic radar sensors.

2. The Grille vs. The Bumper Shell

It is important to clarify which part you need, as the “grille” is a separate insert that bolts into this shell:

• The Shell (MY83-17D957-AD): The painted outer “skin.”

• The Grille Insert (MY83-8A100-AD): The actual metal/plastic mesh (available in “Satin Chrome” or “Gloss Black”).

• Air Intakes: The side “D-shaped” LED daytime running light surrounds are also separate components.

3. Common Repair Notes

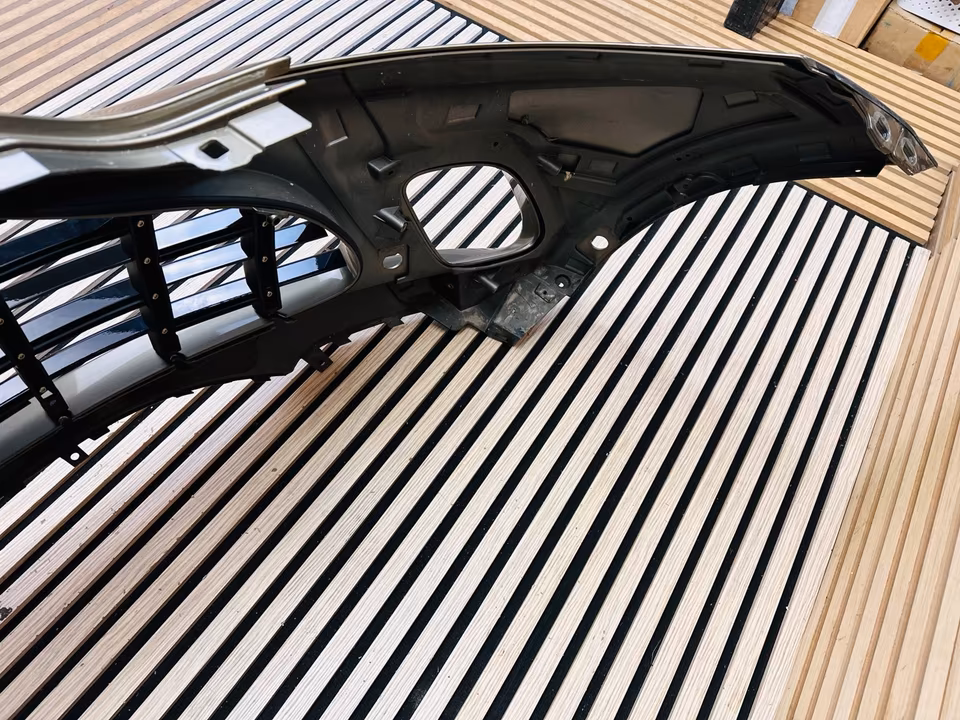

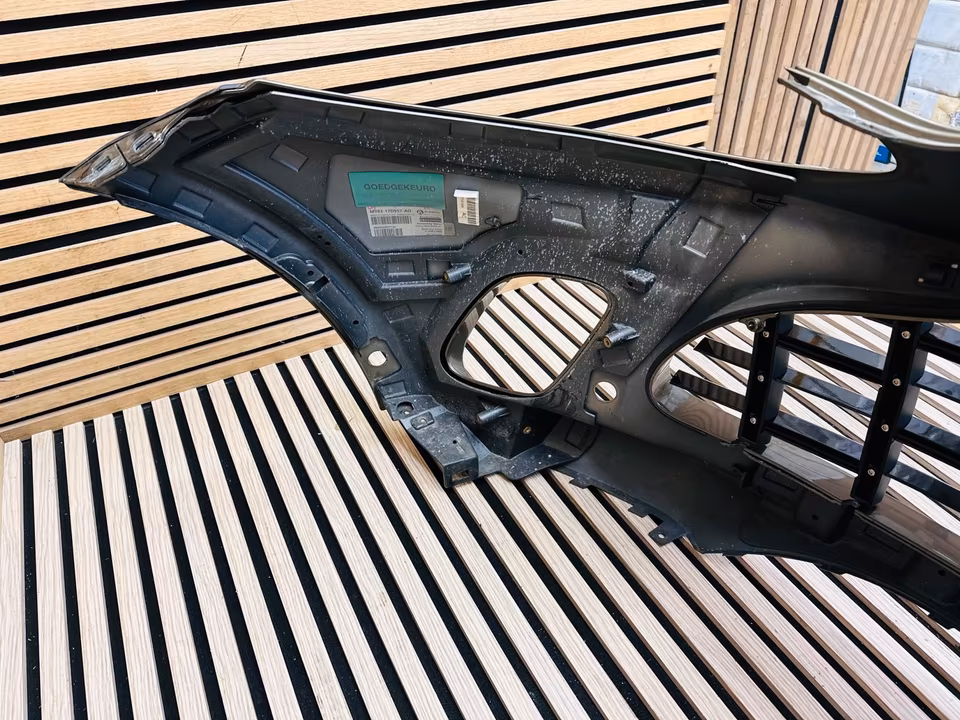

1. Sensor Brackets: This bumper shell includes internal mounts for the ultrasonic parking sensors. In an impact, these brackets often snap before the bumper skin does; verify they are intact if buying a used unit.

2. Paint Matching: Because the DBX uses complex “Q-Special” paint colors (like Satin Solar Bronze or Minotaur Green), getting a perfect match on a new primed bumper is difficult without blending into the hood and fenders.

3. Active Aerodynamics: The DBX front bumper manages air specifically to cool the front brakes via the integrated ducts. Ensure all internal ducting pieces are transferred to the new shell.



Cost & Sourcing (2026 Estimates)
