Aston Martin Vanquish left wing mirror carbon

the second-generation Aston Martin Vanquish (2012–2018), the “Carbon” left wing mirror is a high-cost component that is usually available either as a complete assembly or as a modular cap/base.

Below is the breakdown of the specific part numbers and pricing for the carbon fiber versions.

1. Genuine OEM Part Numbers

If you are looking for the factory carbon fiber components, these are the primary numbers to reference:

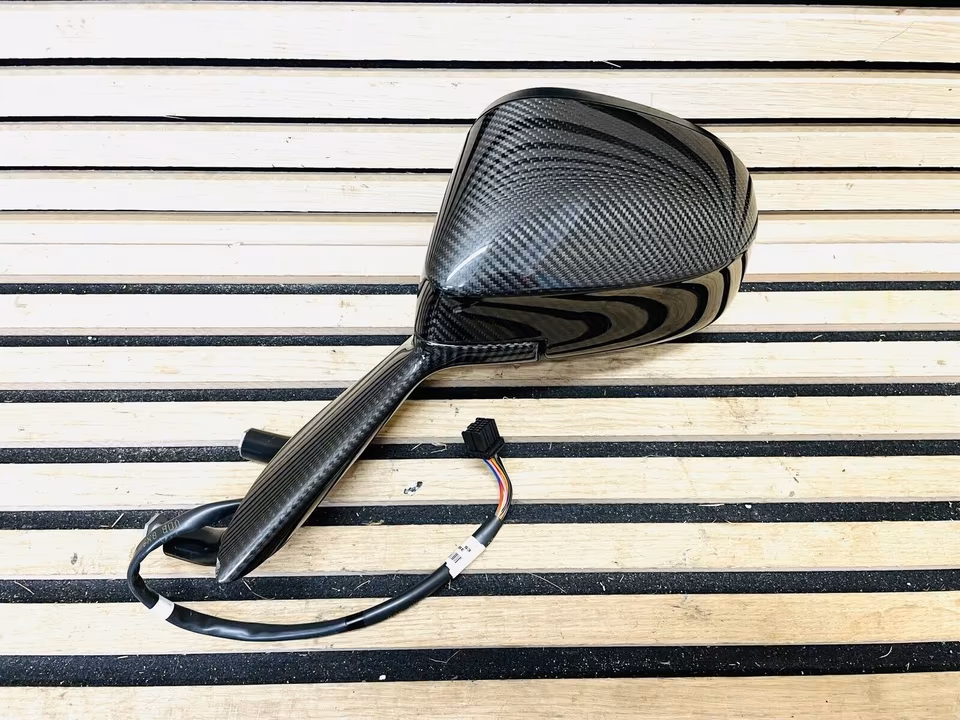

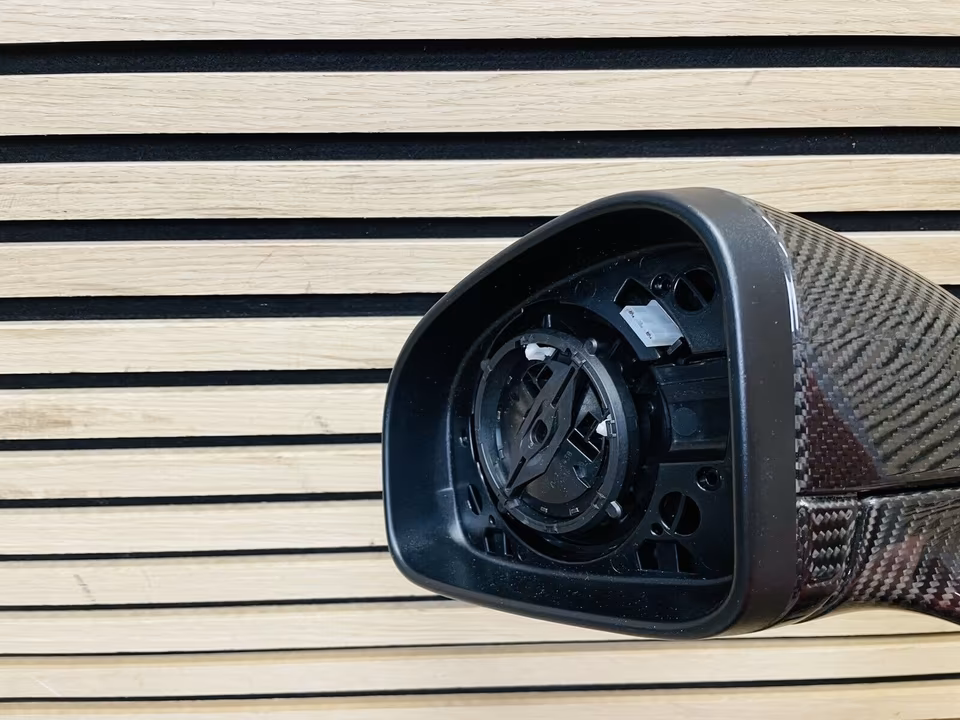

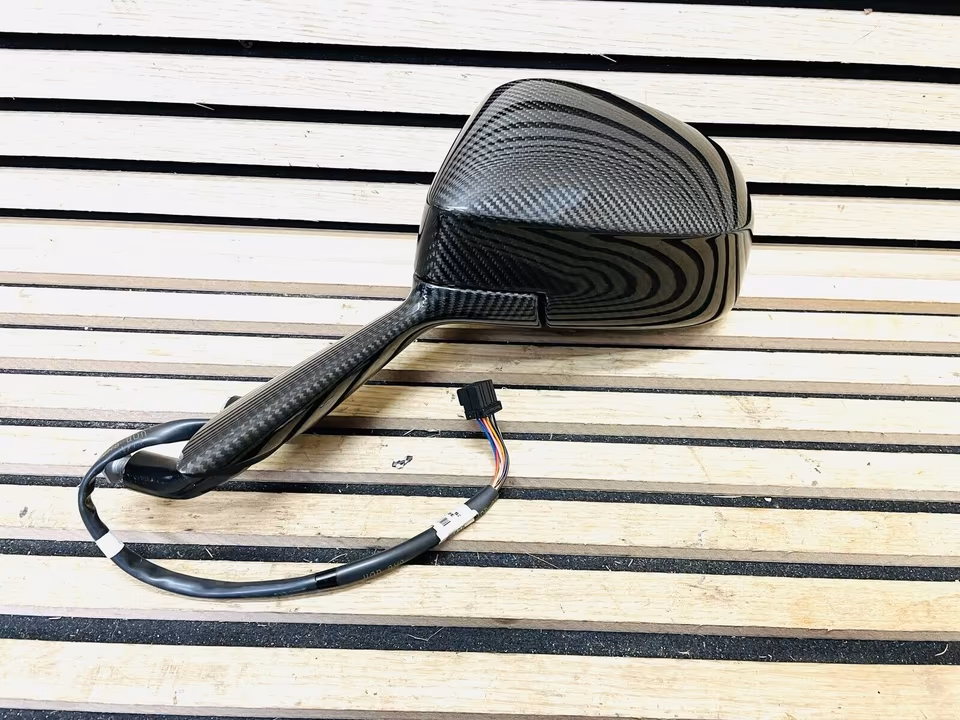

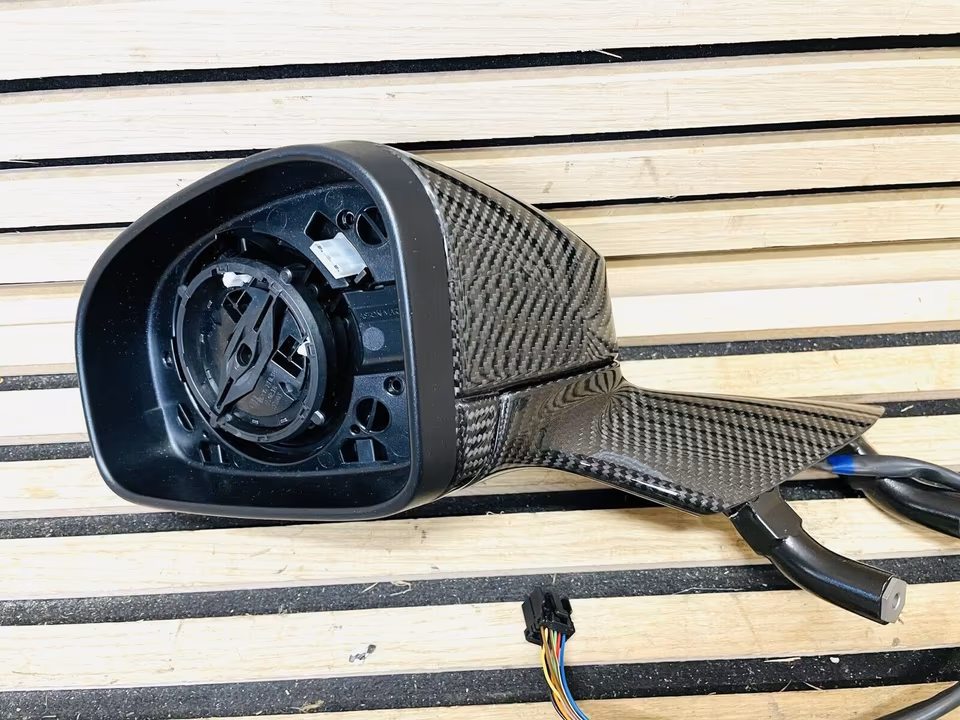

• Complete Left Side Mirror Assembly (Carbon): CD33-17683-BE

  • This includes the internal motors, wiring, carbon housing, and carbon base.

• Carbon Fiber Mirror Cap Only (Left): CD33-39979063-BD

  • This is the “shell” or “scalp” that clips onto the mirror head.

• Carbon Fiber Mirror Base Only (Left): CD33-17E943-AB



  • This is the stalk/bracket that attaches to the door.

2. Estimated Costs (2026)

The price varies wildly between buying the full assembly from a dealer versus sourcing just the carbon cap.

3. Aftermarket Alternatives

Because OEM carbon parts for the Vanquish are prohibitively expensive, many owners opt for specialist carbon fiber “covers” or replacements:

• Fabspeed/Scuderia/Scopione: These brands offer carbon fiber mirror outer shells for around $1,100 – $1,300 per pair. They are designed to be a direct swap for the factory painted caps.

• Carbon Edition Upgrades: If your car has body-colored mirrors, you can buy a “Carbon Fiber Mirror Cap Kit” (CD33-37-10114) from Aston Martin Works for approximately $1,800 – $2,200.

4. Tech Tip: Compatibility

The Vanquish (2012+) shares its mirror mounting footprint with the DBS V12 and late-model DB9s. However, the Vanquish mirror stalk (the base) is unique in its aerodynamic shape and length.

• Warning: If you buy a carbon mirror from a Vantage or DB9, the cap may fit, but the base will likely not align correctly with the Vanquish door line.
