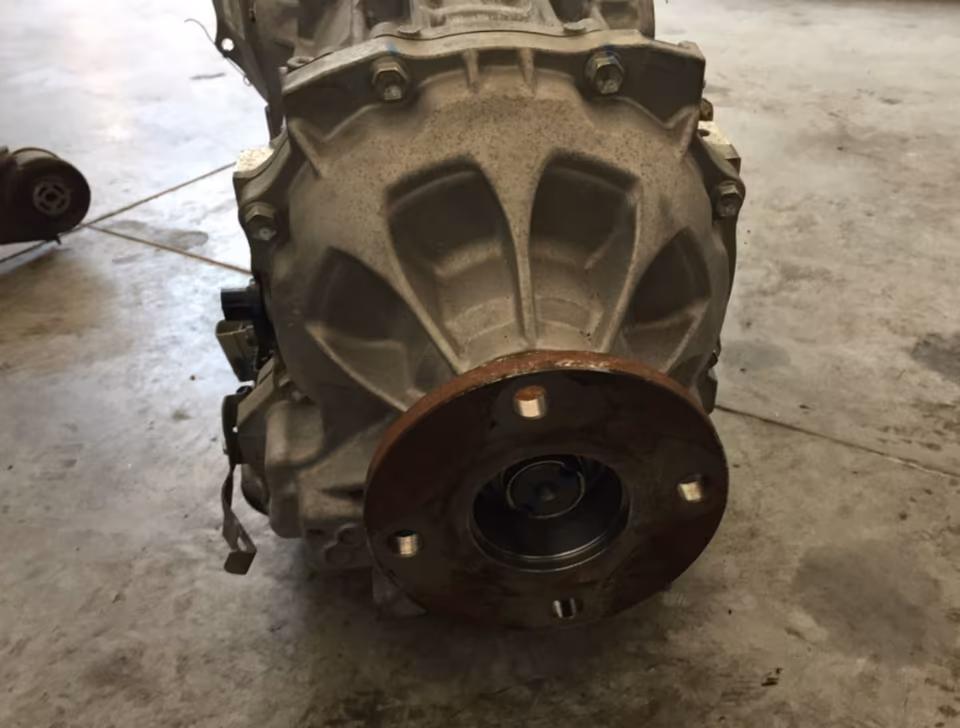

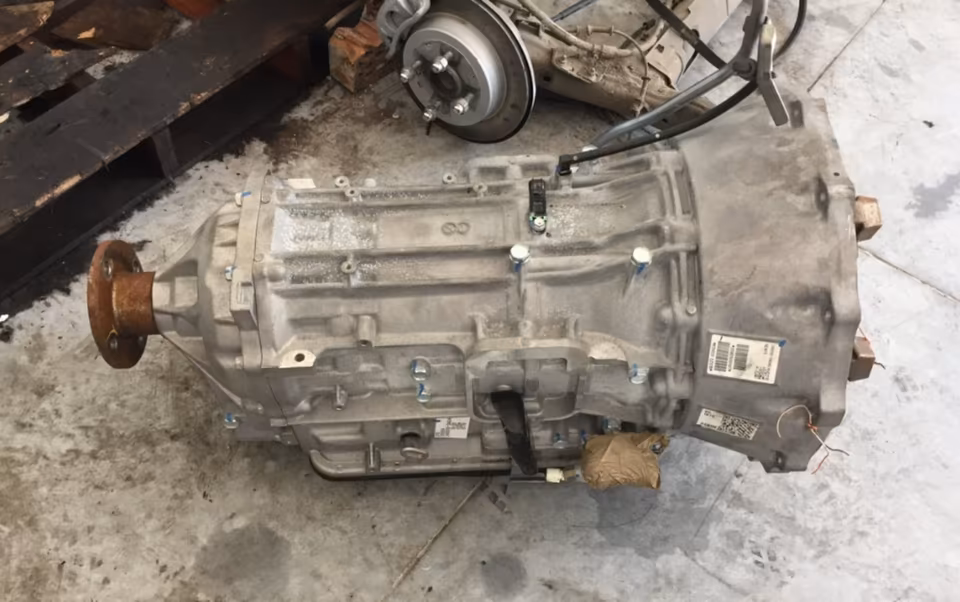

Automatic transmission 345010-34040 5.0 V8 NISSAN TITAN XD 2016

premium inventory at Buy Mustang parts Ltd, this transmission is an elite, heavy-duty component. The part number 345010-34040 refers to the Aisin A466ND (also known as the RE6R01A), which was exclusively paired with the 5.0L Cummins V8 Turbo Diesel in the Nissan Titan XD.

A unit with only 41,000 km (41TKM) is an exceptional find, as these transmissions were built for commercial-grade towing and often see much higher mileage.

1. Technical Identification & Specs

• Manufacturer: Aisin AW (Japan)

• Model: A466ND / RE6R01A (6-Speed Automatic)

• Engine Match: 5.0L Cummins V8 Diesel (310 hp / 555 lb-ft torque)

• Chassis: Nissan Titan XD (A61 Generation, 2016–2019)

• Key Feature: This is a “heavy-duty” Aisin unit, similar in architecture to the AS69RC used in Ram 3500 Cummins trucks. It is significantly more robust than the 7-speed JATCO transmission found in the gasoline 5.6L Titan.

2. Critical Verification for “Buy Mustang parts Ltd”

To maintain your luxury professional standard, you must clarify the Drivetrain Configuration on your website:

• 2WD vs. 4WD: The part number 345010-34040 is typically associated with the 4WD (4×4) version. If your unit is for a 2WD truck, it will have a different tailhousing and output shaft.

• The Torque Converter: At 41TKM, the torque converter should be in near-new condition. Ensure the 31100-EZ00A converter is included, as a new OEM replacement from Nissan can cost upwards of $1,500.
