BENTLEY CONTINENTAL GTC 18-24 3S 3SD Mulliner Leather Seats

For the Third Generation Bentley Continental GTC (2018–2024), the Mulliner Leather Seats represent the absolute peak of the cabin’s craftsmanship. In this generation (3S / 3SD), the Mulliner specification introduced a revolutionary “Diamond-in-Diamond” quilting pattern that is significantly more complex than the previous generation’s single-diamond design.

1. Key Features of 3S Mulliner Seats

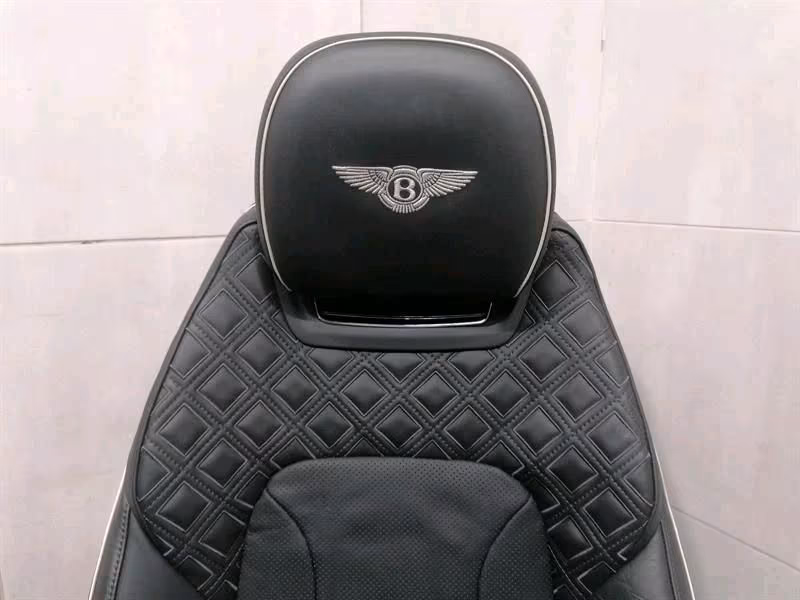

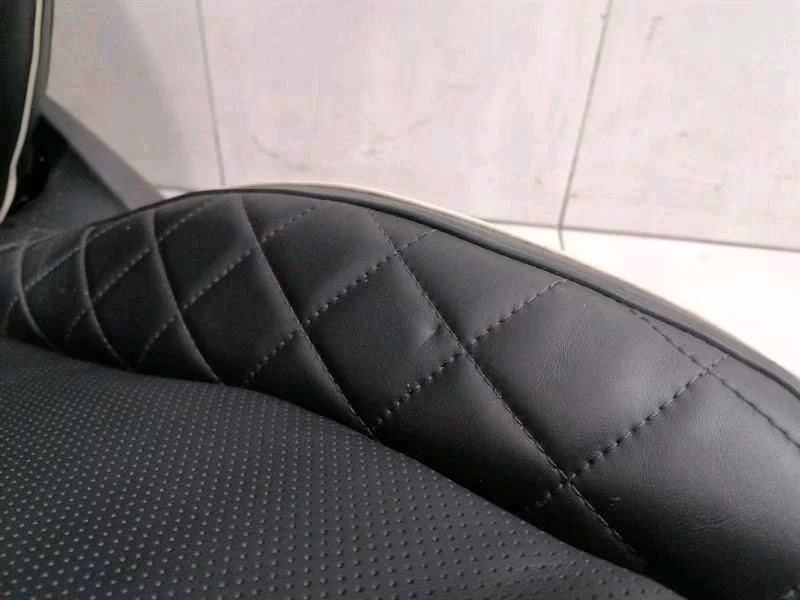

• “Diamond-in-Diamond” Quilting: Each individual diamond on the seat back and door panels contains exactly 712 stitches. The pattern is designed so that the embroidery lines appear to float over the leather.

• Three-Color Split: Mulliner models offer an exclusive three-color interior split (Main Hide, Secondary Hide, and an Accent/Piping color), allowing for high-contrast combinations not available on the standard GT.



• Front Seat Comfort Specification (Standard on Mulliner):

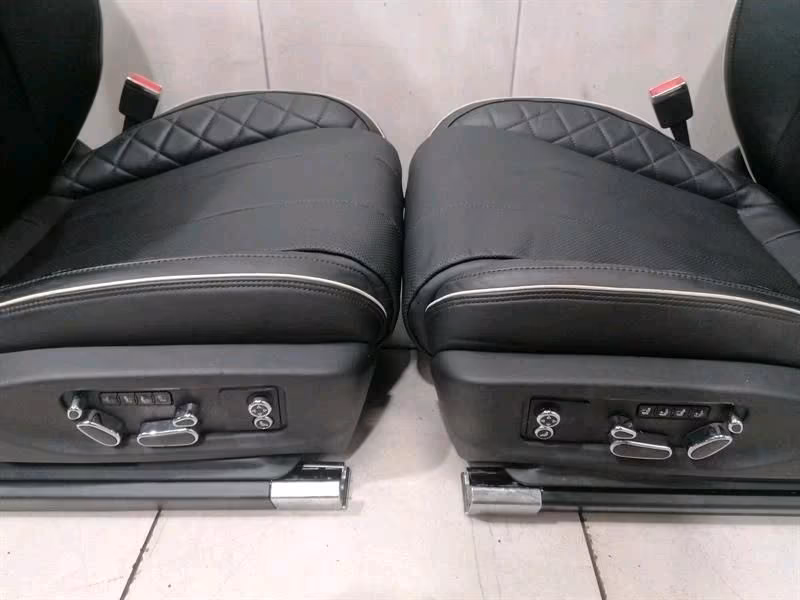

  • 20-Way Power Adjustment: Including independent upper/lower backrest adjustment and cushion length extension.

  • Massage Function: 6 different settings and 2 levels of intensity.



  • Ventilation & Heating: Integrated cooling and heating.

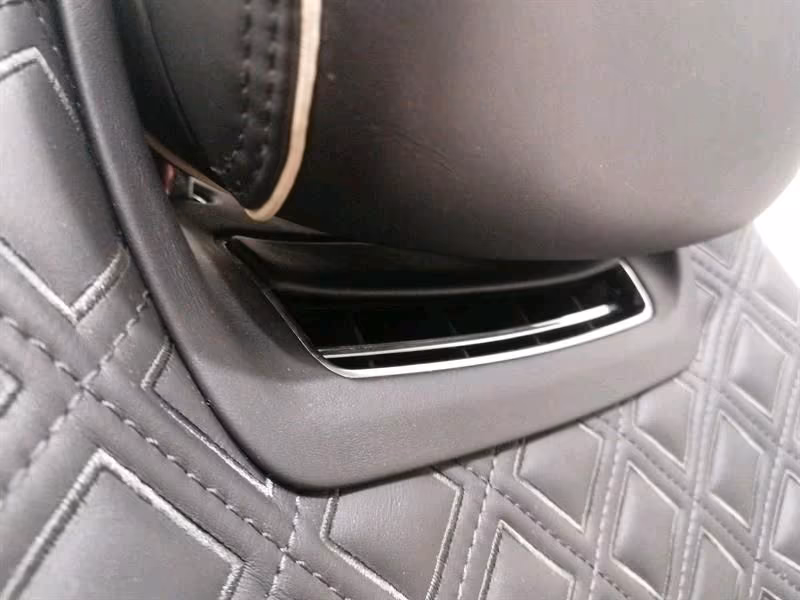

  • Neck Warmer: A vent in the headrest that blows warm air on the driver’s neck (essential for the GTC convertible).

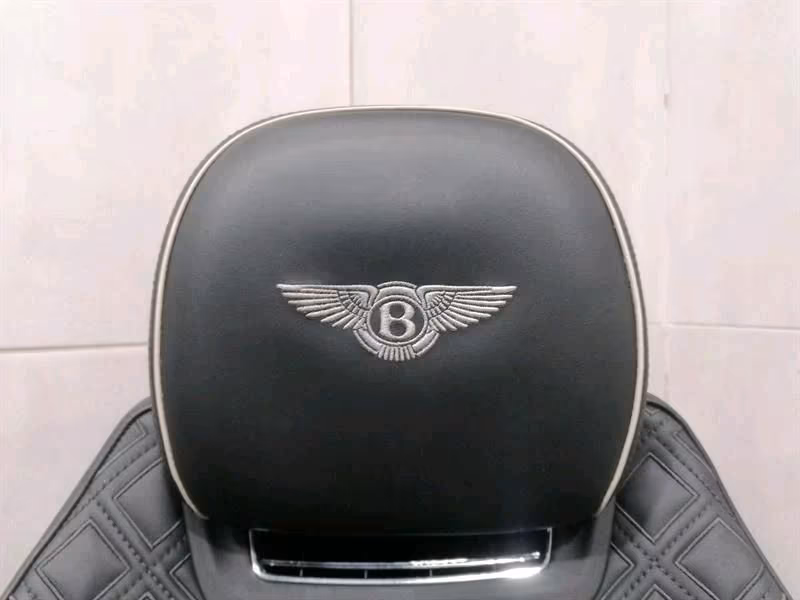

• Embroidered Emblems: The “Mulliner” logo or the Bentley Wings are embroidered into the headrests in a contrasting accent thread.



2. Common Mulliner Hide Colors (3S Chassis)

Bentley uses Nappa hides sourced from Northern European cattle (to ensure no insect bite blemishes). Popular colors for the 2018–2024 era include:

3. Part Numbers & Components

Because seats are built-to-order based on the VIN’s specific color code, they do not have a single “off-the-shelf” part number. However, the seat assemblies follow this structure:

• Front Left Seat Assembly: 3S3881021 (plus color/trim suffix)

• Front Right Seat Assembly: 3S3881022 (plus color/trim suffix)

• Mulliner Door Casing (Quilted): 3S7867011 (Left) / 3S7867012 (Right)

• Seat Control Module: 4M0959760 (Shared with other high-end VW Group platforms)

4. Maintenance & Retrofitting

• Leather Care: Use only pH-neutral leather cleaners. The Mulliner “Diamond-in-Diamond” stitching is prone to trapping dirt or crumbs; a soft-bristled horsehair brush is recommended for cleaning the embroidery lines.

• Retrofitting: Swapping standard seats for Mulliner seats in a 3S GTC is a “plug-and-play” physical installation, but requires Component Protection removal via ODIS (Bentley diagnostic software) and coding to enable the massage/ventilation features if they weren’t original to the car.

• Airbag Warning: The side-impact airbags are integrated into the seat bolsters. If buying used Mulliner seats, ensure the airbag covers have not been deployed and repatched.
