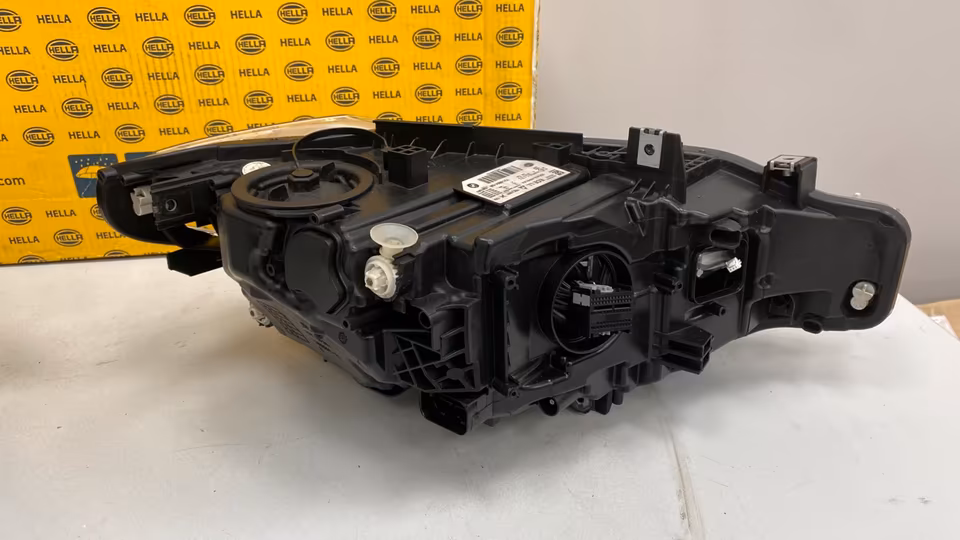

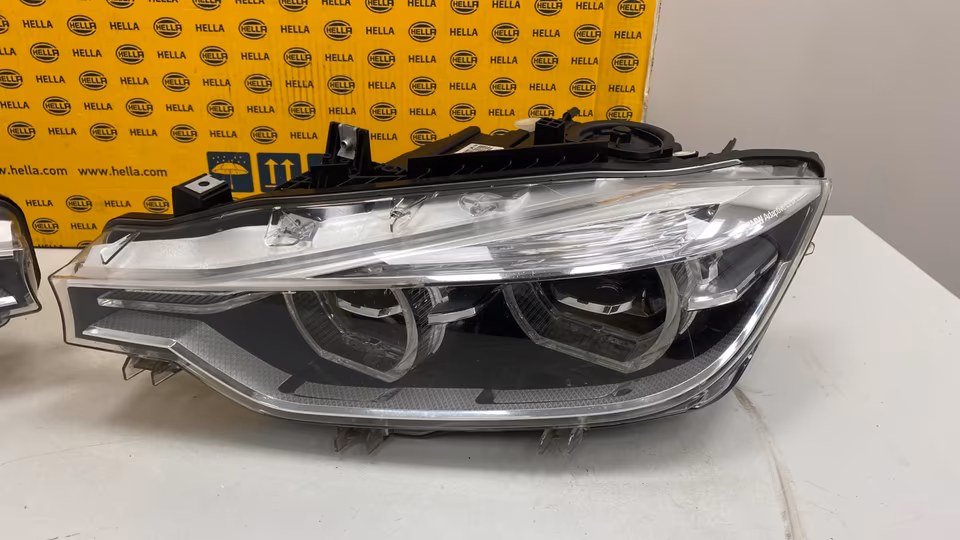

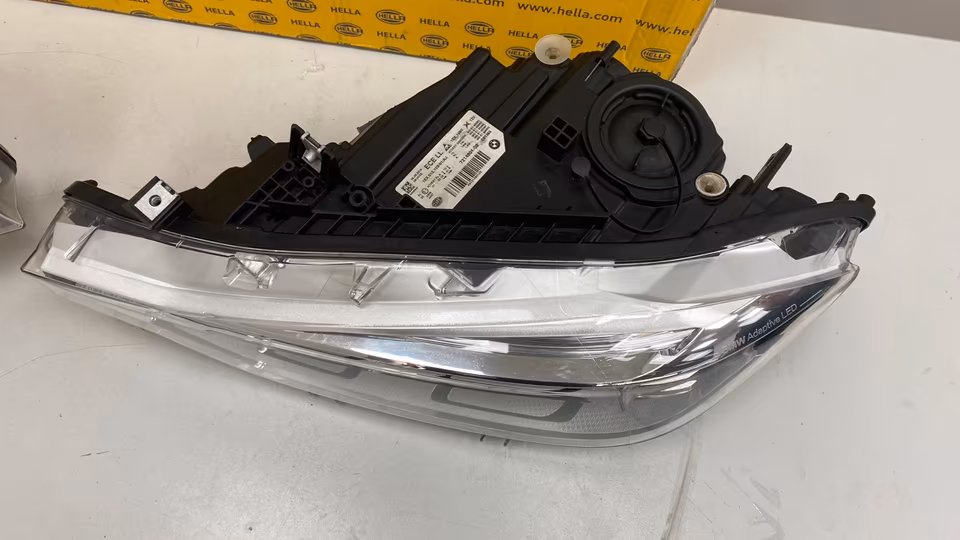

BMW 3 Series F30 F31 Adaptive LED Headlight Left 7214801-02

BMW F30/F31 Adaptive LED Headlight (Part Number 7214801-02) is a flagship lighting component. Unlike the standard LED units, the Adaptive version features “Variable Light Distribution” and “Cornering Lights,” which adjust the beam pattern based on steering angle and vehicle speed.

Finding a Left (Driver Side for LHD) unit in Grade-A condition is highly lucrative, as these are significantly more expensive than standard LED or Xenon housings.

Technical Specifications & Fitment

This part number corresponds to the LCI (Life Cycle Impulse) generation, featuring the updated “Hexagonal” corona ring design.

• Technology: Adaptive Full LED (High/Low Beam, DRL, and Cornering).

• Part Number: 7214801-02 (Replaces/Supersedes older revisions).

• Chassis Compatibility:

  • 3 Series Sedan (F30 LCI): 2015–2018.

  • 3 Series Touring (F31 LCI): 2015–2019.

  • M3 (F80 LCI): 2015–2018.

Luxury Inventory Quality Benchmarks

To maintain your business’s “Luxury Specialist” reputation, these specific details should be verified and highlighted in your listing:

• Adaptive Stepper Motors: Confirm that the internal projectors have been “Bench-tested for smooth horizontal and vertical movement” to ensure the “Adaptive” feature functions without “Headlight Vertical Aim Control” errors.

• LED Module Completeness: This unit often requires three separate modules (LED Main, Turn Signal, and TMS/Adaptive Driver). Specify if this is the “Bare Housing” or a “Complete Plug & Play Unit” with all modules included.

• Lens Integrity: Because these sit low on the F30 chassis, they are prone to stone chips. Describe the lens as “Optically Clear / No sandblasting or pitting,” which is vital for high-end buyers.

• Ventilation Seals: Check the rear rubber caps and Gore-Tex breathers. Mention “Zero history of internal condensation/moisture” to justify a premium price.
