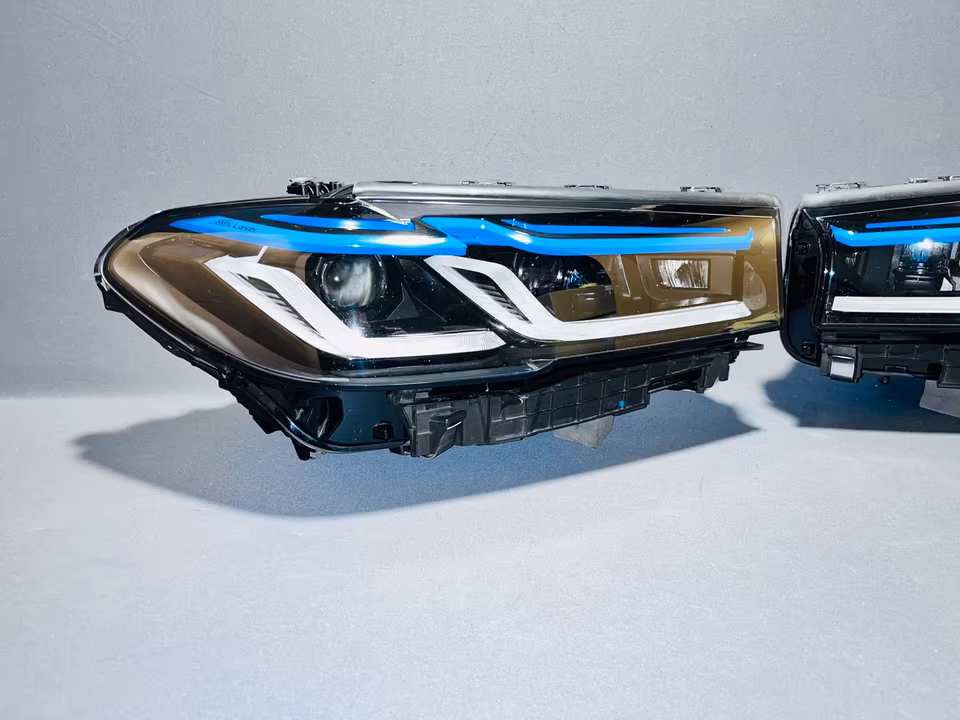

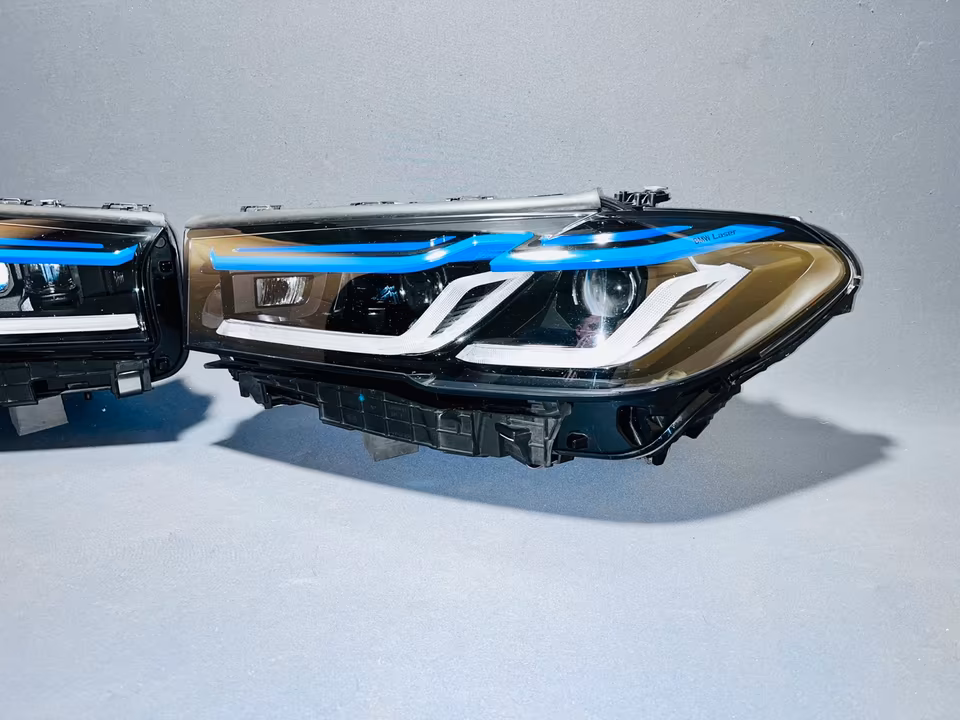

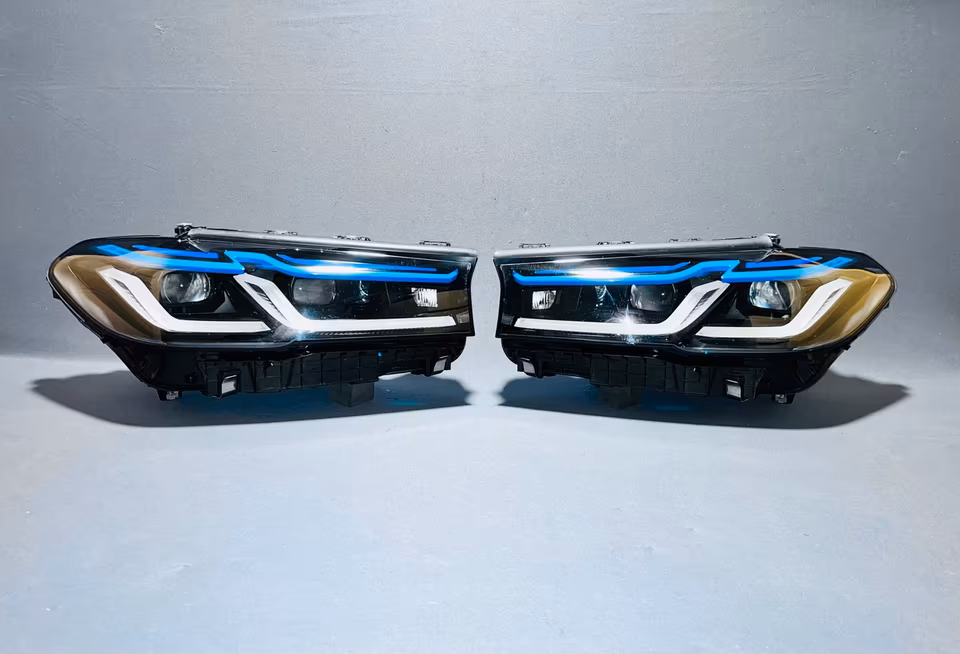

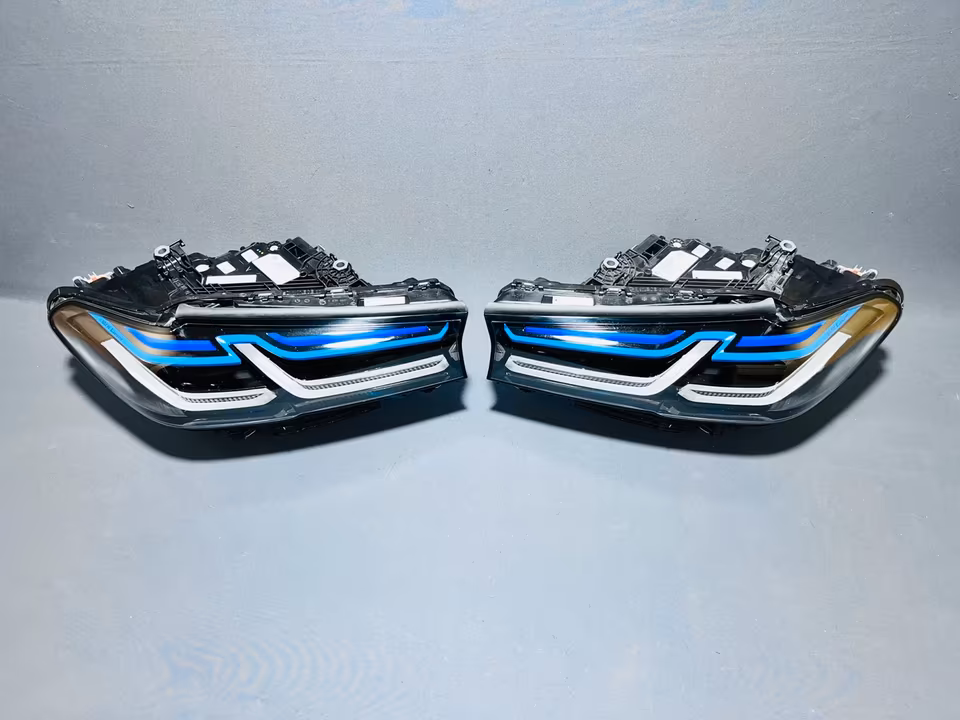

BMW 5 Series G30 G31 M5 F90 LCI Laser Headlight black shadow line
LCI Laser Headlights in the Shadowline (Black) finish for the BMW 5 Series (G30/G31) or M5 (F90) is a premium lighting upgrade for facelifted models (2020–2023). These units are distinguished by their blue internal accents and dark-tinted internal housings that replace the standard chrome elements. BMW 5 Series G30 G31 M5 F90 LCI Laser Headlight black shadow line
Technical Specifications
Genuine Part Numbers (LHD/Europe Spec)
When searching for these parts, use these specific OEM numbers. “Shadowline” versions are rarer and more expensive than the standard chrome Laser units.
-
Left (Driver): 63119479309 (Alternative search number: 8082661)
-
Right (Passenger): 63119479310 (Alternative search number: 8082662)
Note on “Complete” Sets: Most online listings are for the “Bare” housing only. A “Complete” set must include approximately 4 modules per headlight (DRL, LED, Laser, and Fan control) bolted to the bottom and side. Used complete sets often sell for €3,500 – €5,000 depending on condition.
Retrofit Intelligence
-
Pre-LCI to LCI Conversion: If you are installing these on a 2017–2019 model, it is not a direct swap. You must also change the front bumper and grille because the LCI headlights have a slimmer, more tapered shape.
-
Coding Requirements: These lights require SCN Coding via BMW software (Esys/XENTRY) to sync with your vehicle’s VIN. Without coding, the advanced “anti-dazzle” and Laser high-beam functions will not activate.
-
Yellow DRL Trend: Many owners replace the white LED modules with Yellow (CSL Style) DRL modules to replicate the limited-edition M5 CS look, which looks particularly aggressive against the Shadowline black housing.
