BMW F10 M5 Seats Interior Door Panels Leather Merino

Compatibility: BMW M5 (F10) 2011–2017 | Retrofit: BMW 5 Series (F10 Sedan)

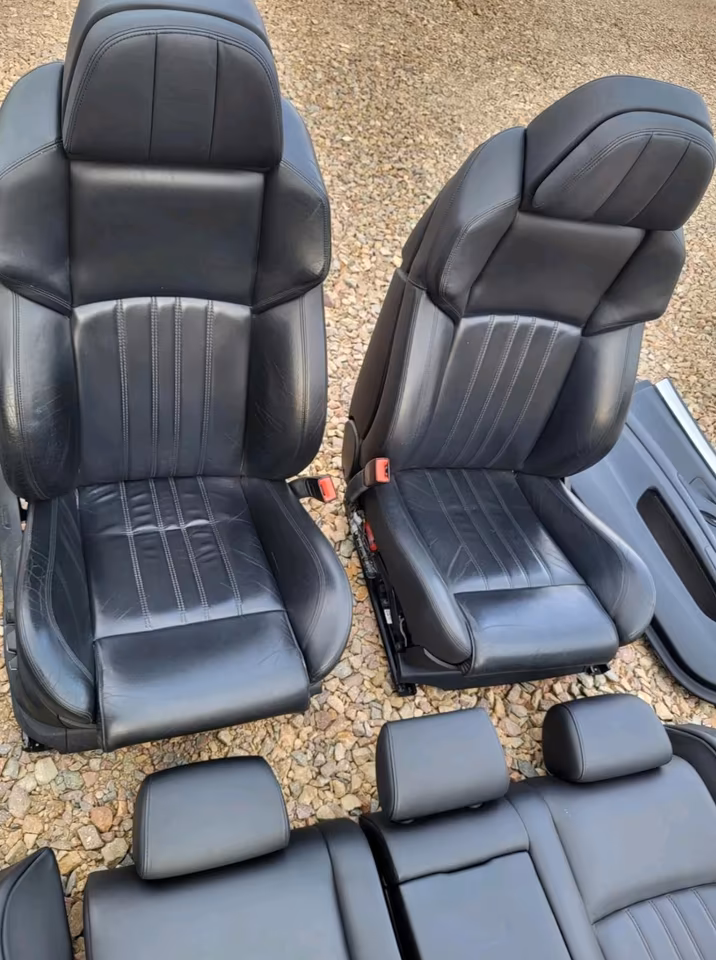

The BMW M5 (F10) interior is the benchmark for the “executive express” aesthetic, utilizing premium Merino Leather which offers a much finer grain and softer hand-feel than the standard “Dakota” leather found in the 528i or 535i. This complete set centers around the highly adjustable M Multi-function seats and matching leather-wrapped door cards.

Technical Specifications

• Material: Full-Grain Merino Leather (Non-pigmented, premium grade).

• Seat Architecture: 20-way adjustable M Multi-function bucket frames.

• Common Color Codes:

  • LKSW: Black Merino (Timeless, high durability).

  • LKA9: Silverstone II (Light grey, high-tech aesthetic).

  • LKDA: Sakhir Orange (Bold, signature M color).

• Standard Features:

  • 3-Stage Heating and optional Active Ventilation.

  • Articulated Upper Backrest: Allows the top half of the seat to tilt independently.

  • Active Side Bolsters: Pneumatically adjust to “hug” the driver during cornering.

  • 4-way Power Lumbar and Power Thigh Extensions.

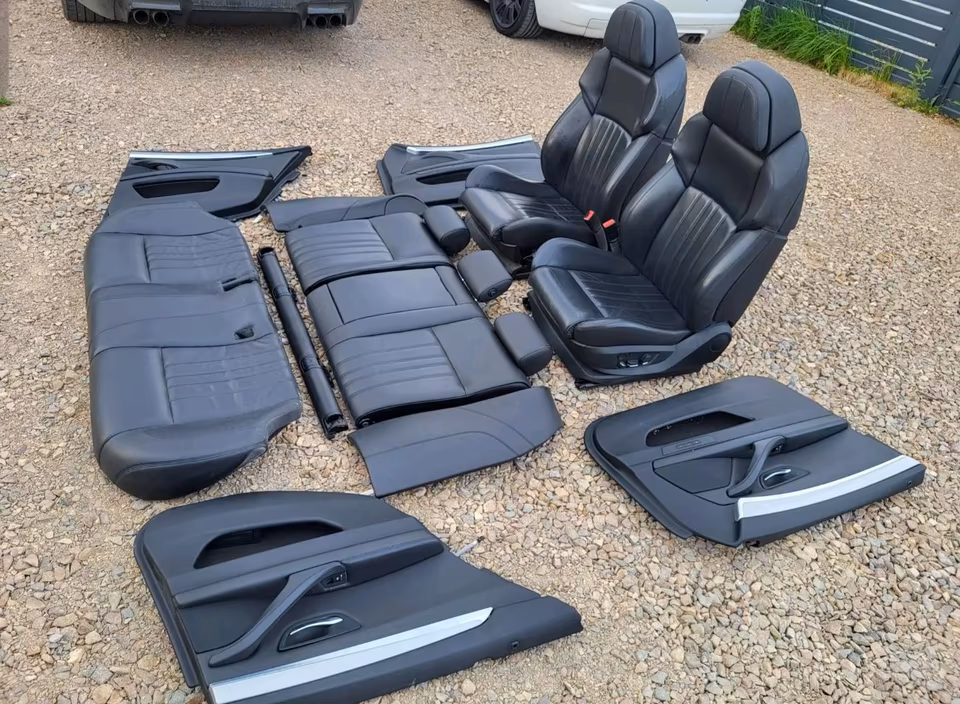

Key Components Included

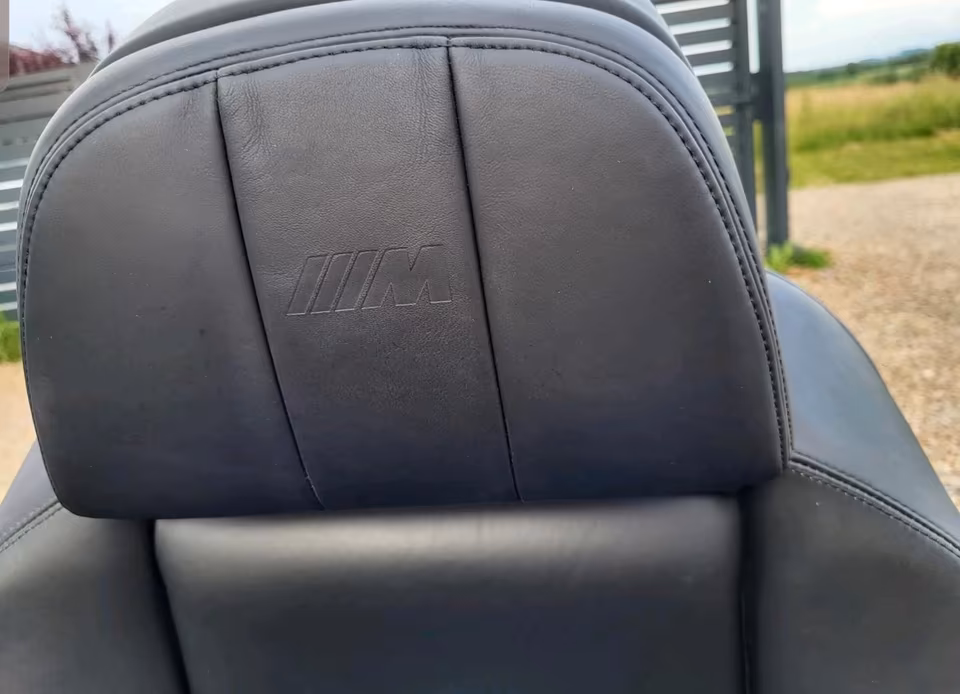

• Front M Seats: Feature the embossed “M” logo in the headrests. (Note: Factory F10 M5 seats feature an embossed logo rather than the illuminated badge found in later G-series models).

• Door Panels: Includes leather-wrapped inserts, integrated ambient lighting tracks, and premium speaker grilles (compatible with HiFi, Harman Kardon, or Bang & Olufsen).

• Center Console: Often included in complete sets, featuring the leather-wrapped knee pads and the M-DCT (Double Clutch Transmission) shifter surround.

Key Performance & Luxury Features

• Active Bolster Logic: When the vehicle is in Sport or Sport+ mode, the side bolsters can be set to automatically tighten based on lateral $G$-forces, providing maximum stability during spirited driving.

• Full vs. Extended Leather: An “Extended” set covers the seats and door centers, while a “Full Leather” set includes a leather-wrapped dashboard and upper door sills with contrast stitching.

• Climate Comfort: Perforated versions of this interior indicate the presence of the Active Ventilation system, which uses internal fans to pull moisture away from the occupants.

Professional Installation & Technical Notes

1. G30/F10 Retrofit Wiring: When installing these into a standard 5 Series, the yellow main connector (X14) is used, but the CAN-bus signals for the active bolsters and memory functions must be properly coded into the vehicle’s FRM (Footwell Module).

2. Active Head Restraints: These seats are equipped with pyrotechnic head restraints. If the “As New” set has been triggered, the actuators must be replaced. Always handle these units as Class 9 Hazmat during shipping.

3. Leather Maintenance: Merino leather is minimally processed and more porous than lower-tier leathers. For professional inventory presentation, avoid heavy waxes; use a pH-neutral cleaner to maintain the factory matte finish.

4. Audio Compatibility: Ensure the door panels match the recipient’s audio spec. Panels for the Bang & Olufsen system feature specific aluminum tweeter housings and lighting that may not be present on standard HiFi cards.
