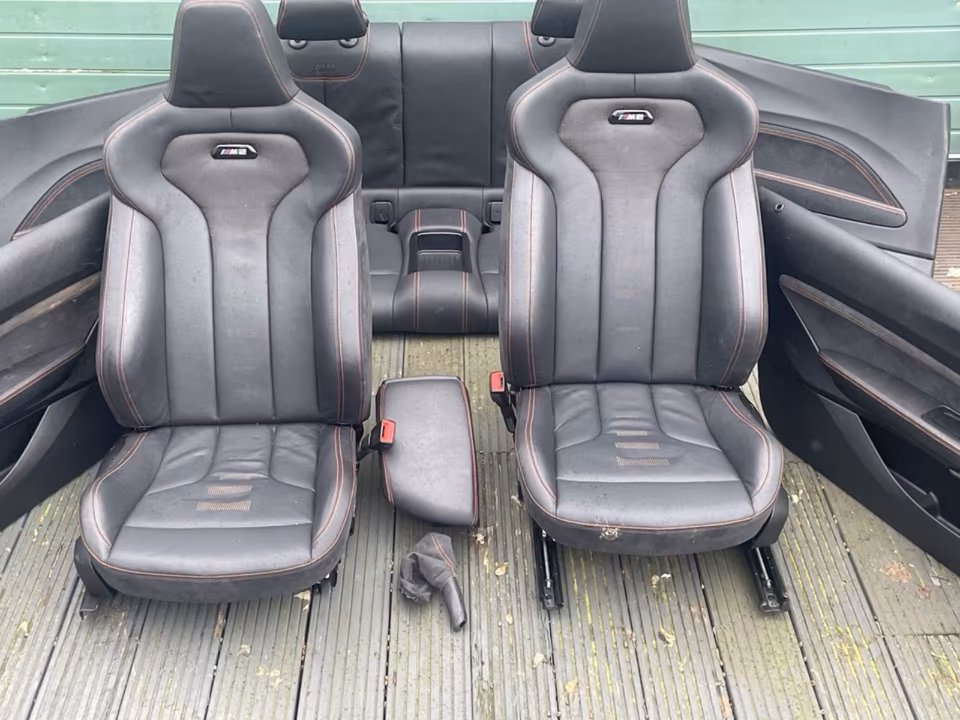

BMW F87 M2 Competition Seats Interior Door Panel

Compatibility: BMW M2 Competition (F87) 2019–2021 | Retrofit: M2 OG (2016–2018), 2 Series (F22)

The M2 Competition interior introduced the “M Sport Seat” (Option S712) to the M2 lineup, a significant upgrade over the standard F22-style seats found in the early “OG” M2 models. This set is defined by its aggressive high-back design and the introduction of perforated Dakota leather with specific M-color highlights.

Technical Specifications

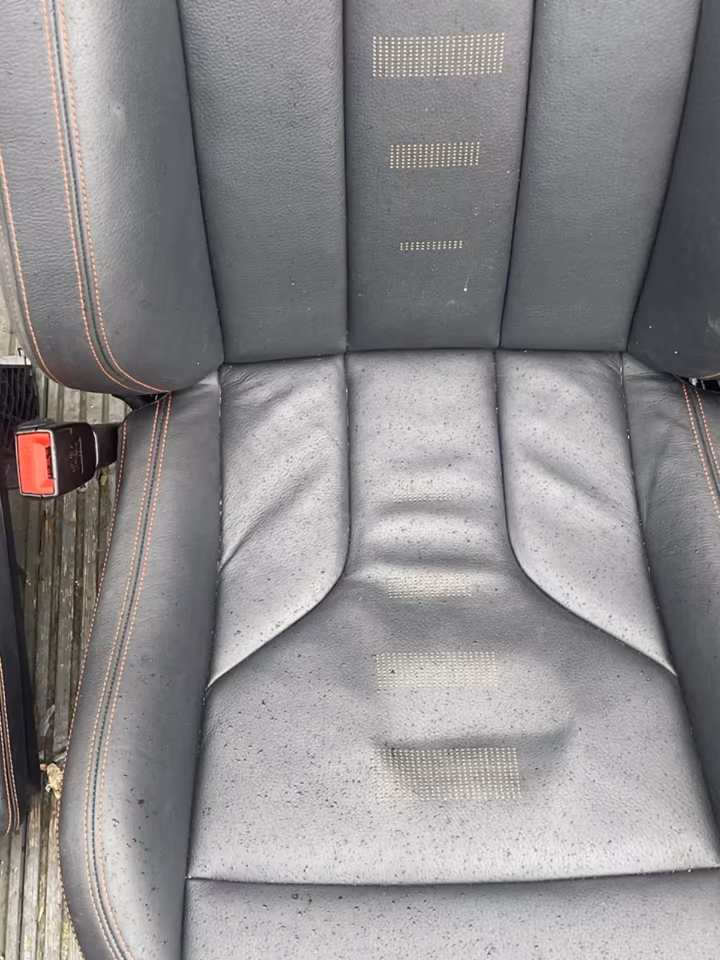

• Upholstery: Dakota Leather with stylish perforations.

• Seat Type: M Sport Seats (S712) with integrated headrests and high side bolsters.

• Color Schemes:

  • Black with Blue Stitching (MDB2): Features blue highlights under the perforations and Blue contrast stitching.

  • Black with Orange Stitching (MDOE): Features orange highlights under the perforations and Kyalami Orange contrast stitching.

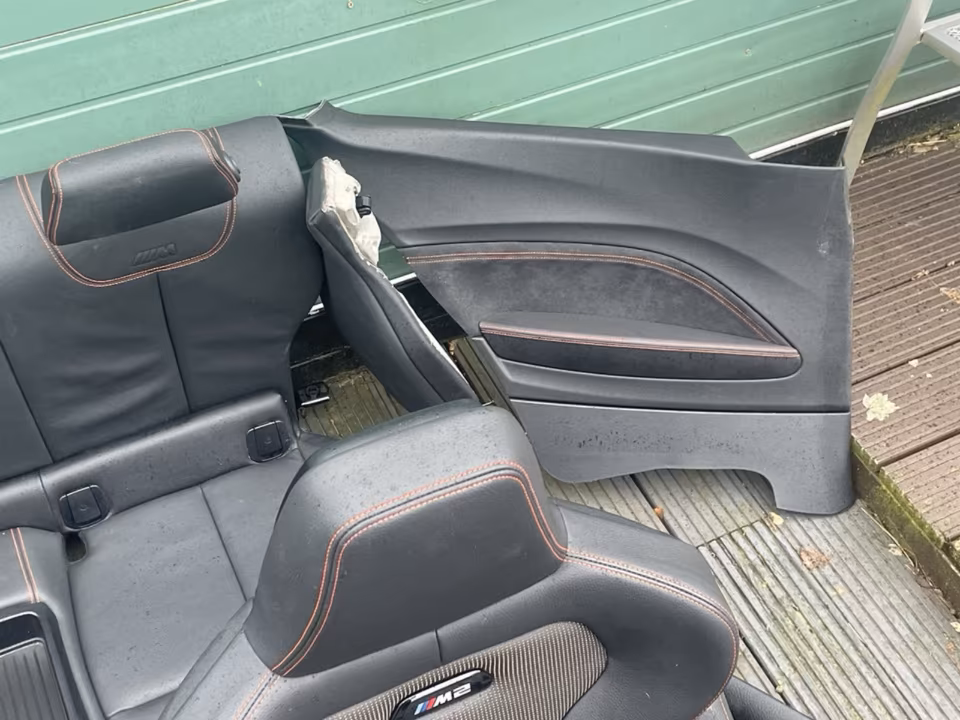

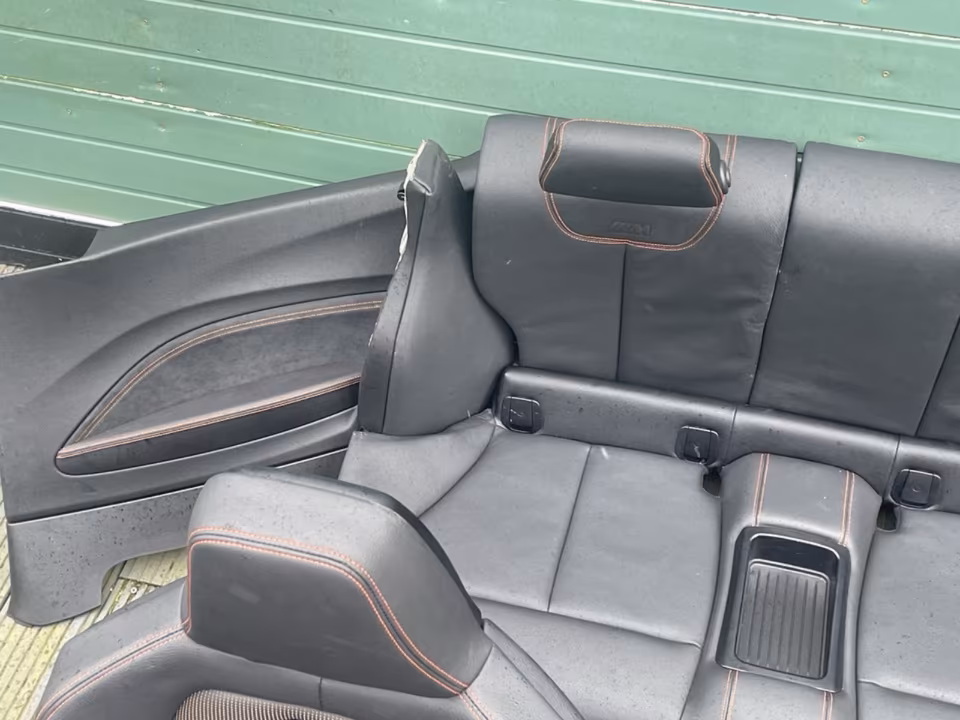

• Door Panels:

  • Standard: Alcantara center inserts with contrast stitching (Blue or Orange) and dry carbon fiber trim handles.

  • CS Racing Variant: Ultra-lightweight fiber composite panels (approx. 1.5 kg per side) with fabric pull straps.

Key Performance & Design Features

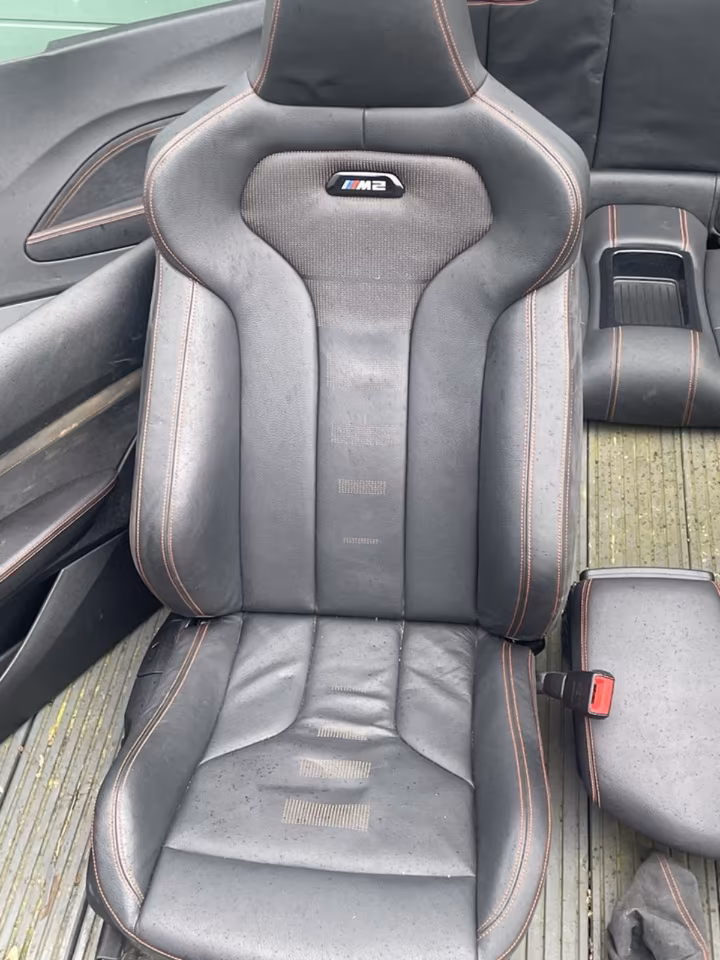

• Illuminated M2 Logos: The front backrests feature integrated M2 badges that illuminate upon vehicle entry. This is the primary visual differentiator from standard 2 Series seats.

• S55-Spec Lateral Support: Designed to handle the increased lateral $G$-forces of the Competition model, the bolsters are significantly deeper and firmer than the base M2 seats.

• Open-Pore Carbon Fiber: The door handles and center console trim typically feature “dry” carbon fiber, which has a matte, textured finish that reduces glare and fingerprints compared to high-gloss carbon.

• Weight Profile: While visually similar to the M4 seats, the F87 M Sport seats are structurally optimized for the smaller cabin of the 2 Series, providing a lower seating position than the OG M2.

Professional Installation & Cataloging Notes

1. Retrofit Wiring: If installing these into an “OG” M2 (2016–2018) or an F22 2 Series, the seat mounting is identical. However, to make the M2 backrest logos illuminate, a simple 12V power tap is required, as the non-Competition wiring harness typically lacks this pin.

2. Coding (VO Coding): The vehicle’s FEM (Front Body Electronics Module) should be coded to recognize the M Sport seat profile. This ensures the airbag deployment speeds and heating curves are correctly calibrated for the Competition-spec hardware.

3. Maintenance: The perforated leather in these seats is designed to assist with airflow. When cleaning, avoid using thick creams or waxes that can clog the perforations; a dedicated liquid leather cleaner and a soft brush are recommended to maintain the “As New” matte look.

4. Airbag Safety: These seats contain side-impact airbags and pyrotechnic seatbelt tensioners. Ensure all battery power is disconnected for at least 15 minutes before beginning the swap to avoid triggering a hard SRS fault.
