BMW M3 E46 Seats Interior Door Panels Seat Heating

Compatibility: BMW M3 (E46) Coupe/Convertible | Retrofit: E46 3 Series (325i, 330i/ci)

The E46 M3 interior is a hallmark of the “Golden Era” of BMW design. Unlike the standard E46 seats, the M3 units feature aggressive thigh and lateral bolsters, high-quality Walknappa Leather, and the signature adjustable width backrests. This set is highly sought after for its analog feel and superior ergonomics.

Technical Specifications

• Material: Fine-grain Walknappa Leather (Code N5 or L5).

• Seat Type: M Sport Seats with integrated width-adjustable backrest bolsters.

• Compatibility: Direct bolt-in for all E46 Coupe (E46/2) and Convertible (E46/2C) models.

• Functionality: * Fully Electric with Driver-Side Memory.

  • 3-Stage Seat Heating: Integrated heating elements in the base and backrest.

  • 4-way Pneumatic Lumbar Support.

  • Manual Thigh Extension (standard on M3 sport seats).

Key Components Included

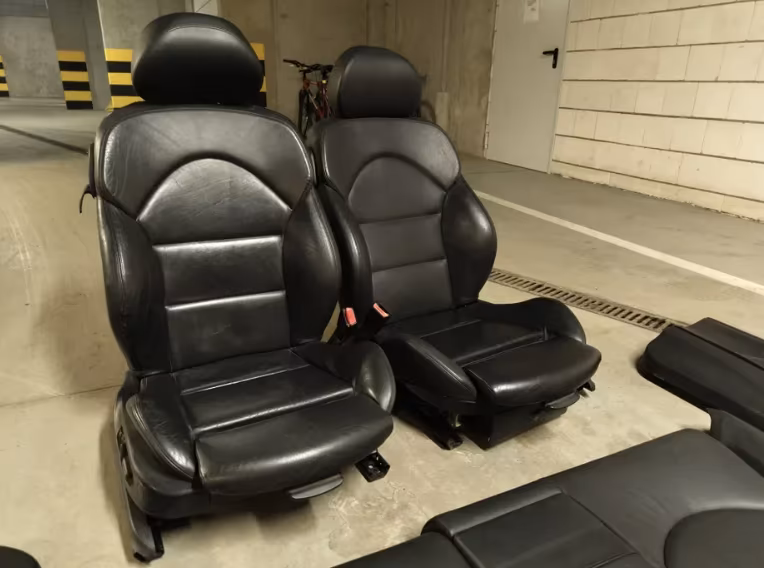

• Front M Seats: Feature the embossed “M” logo in the headrest (Pre-2003) or the subtle M-stitch detailing.

• Door Panels: Features the curved “armrest” design with leather inserts. Coupe versions include the rear side panels as well.

• Rear Bench: Contoured specifically for two passengers in the M3 Coupe, featuring the center pass-through (if equipped with the ski bag option).

Iconic Color Configurations

Technical Installation & Maintenance

1. Seat Heating Retrofit: If installing these into a car that did not originally have heated seats, you will need the Switch Center Console (with the heat buttons) and a wiring harness to connect the seats to the K-Bus and power distribution box.

2. Width Adjustment (Pneumatic): The M3 seats feature a button on the side to inflate/deflate the side bolsters. This requires a dedicated constant power feed. If retrofitting into a standard 3 Series, verify the pin-out on the yellow floor connector.

3. Leather Care: Walknappa is a “soft” leather and is prone to “bolster wear” on the driver’s side from entry and exit. For “As New” sets, it is critical to use a high-quality leather conditioner to keep the hides supple and prevent the leather from cracking over time.

4. Airbag Safety: These seats contain side airbags. When shipping or installing, ensure the battery is disconnected. If retrofitting a 2003+ (LCI) seat into an early 1999–2001 car, you may need to swap the seat belt tensioner to match the vehicle’s specific SRS resistance values.
