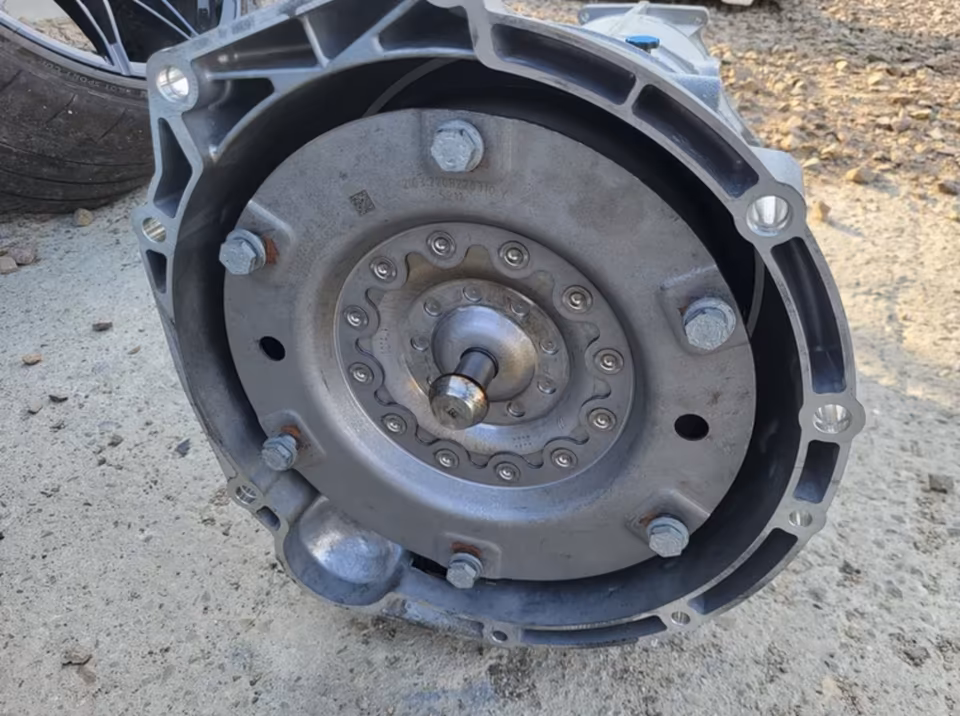

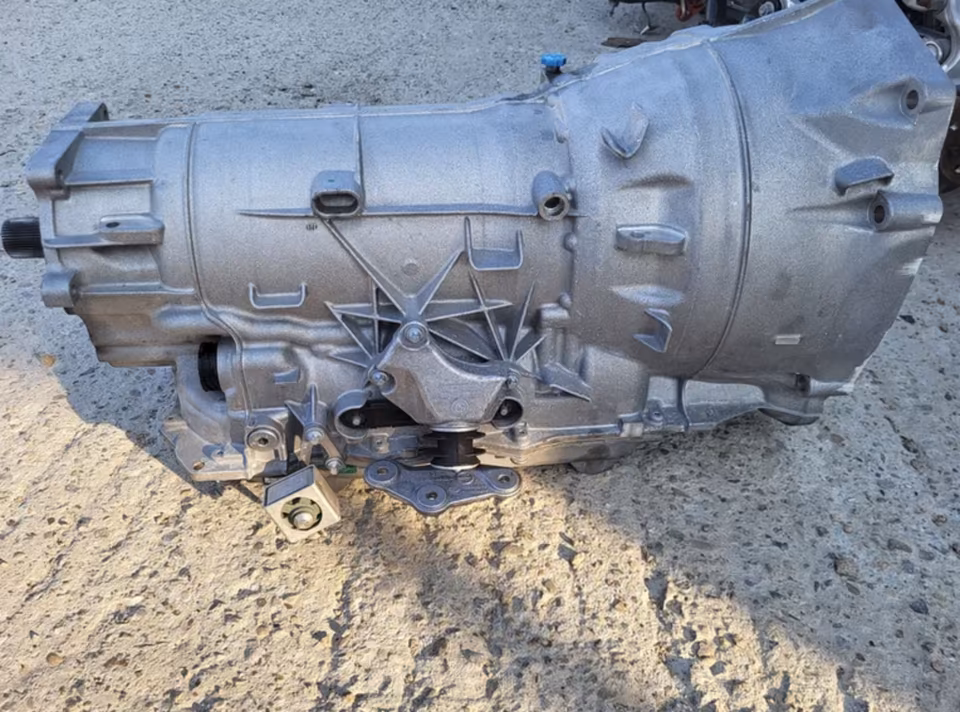

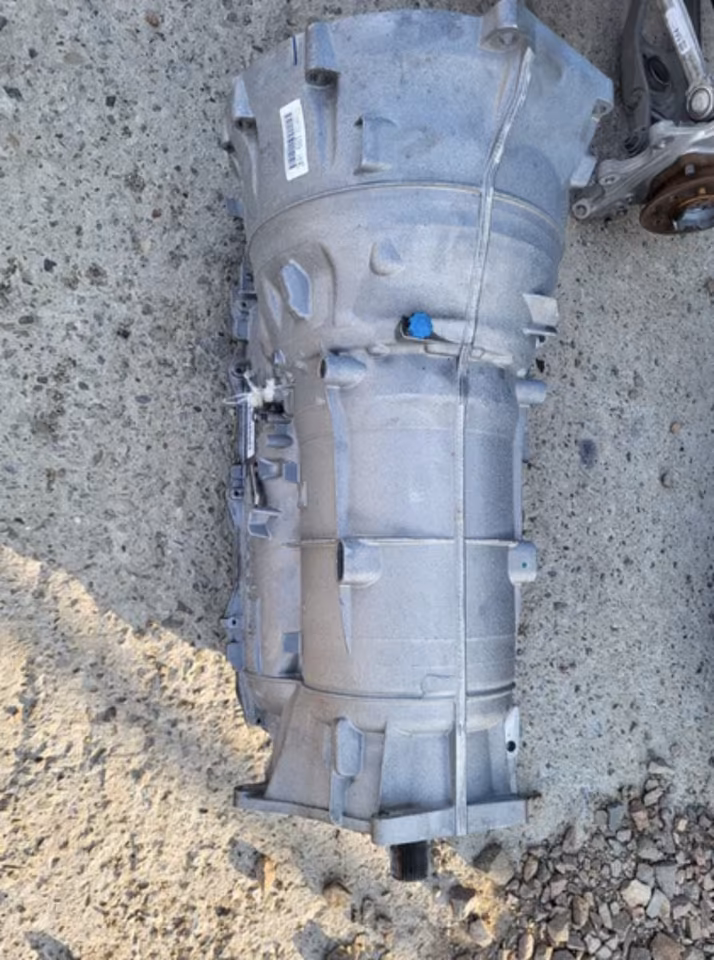

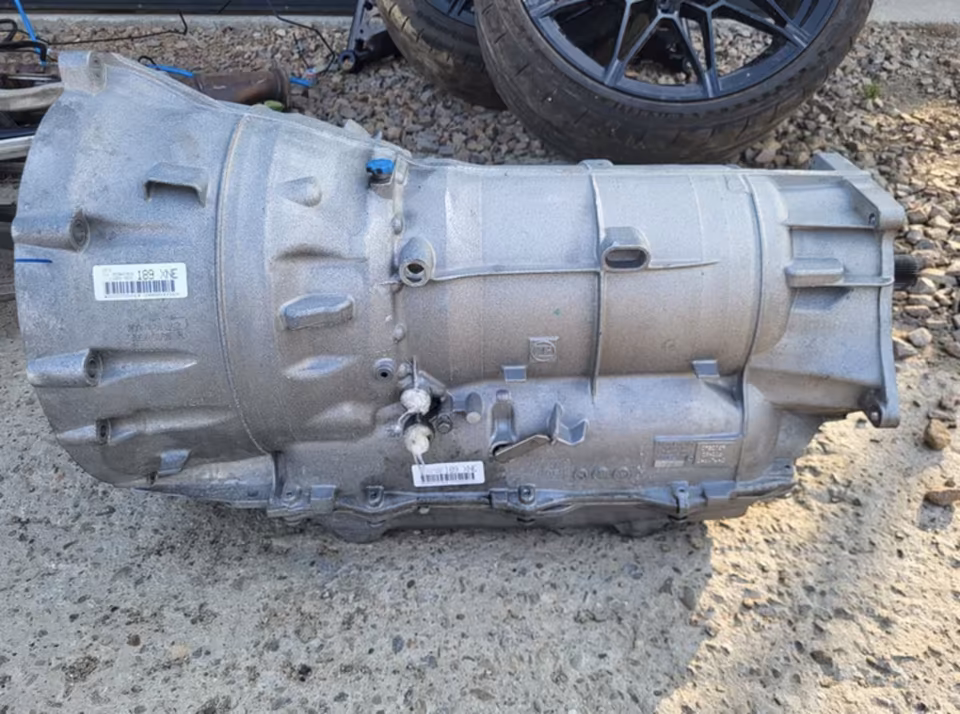

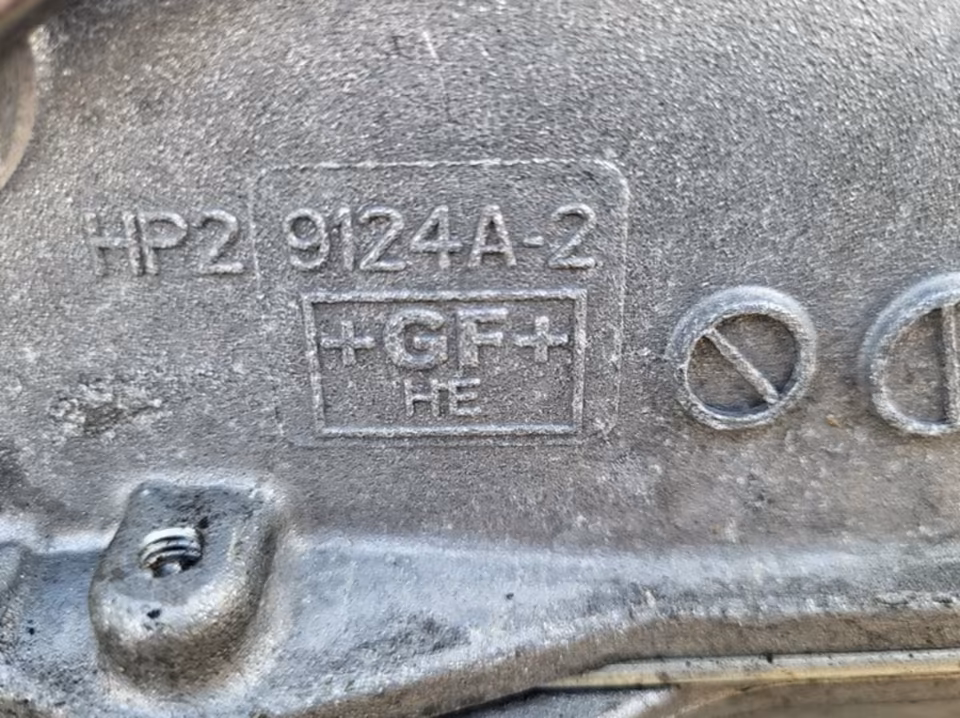

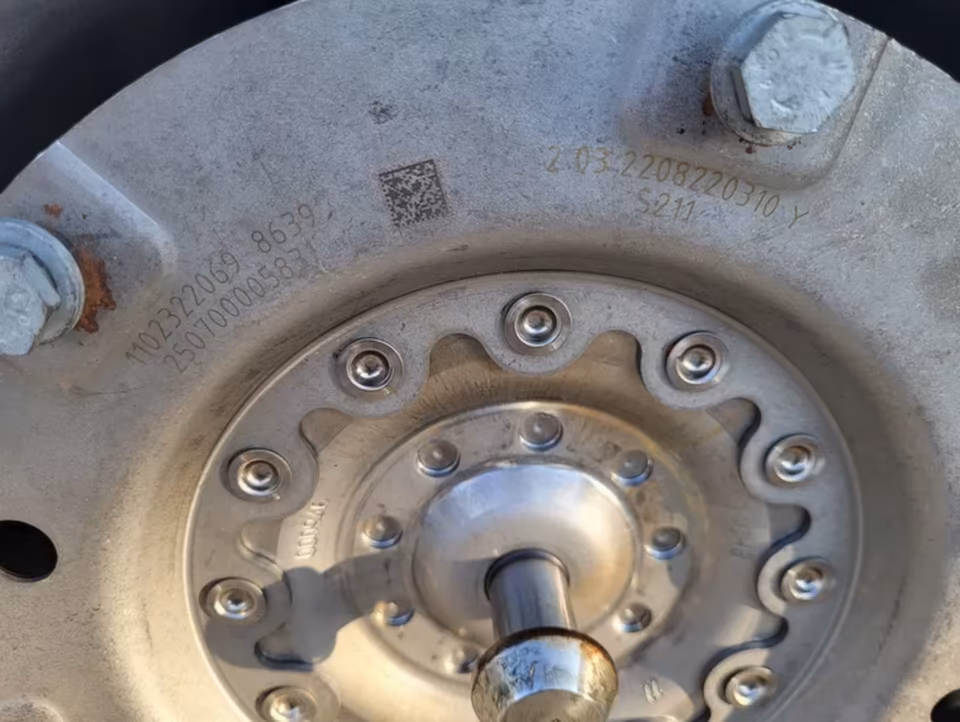

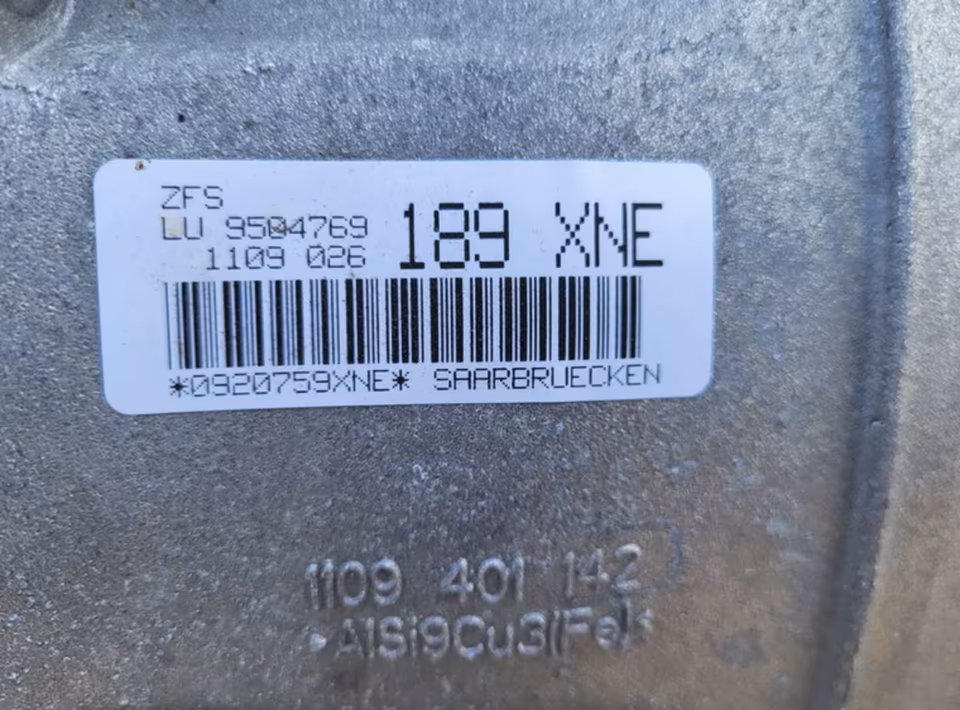

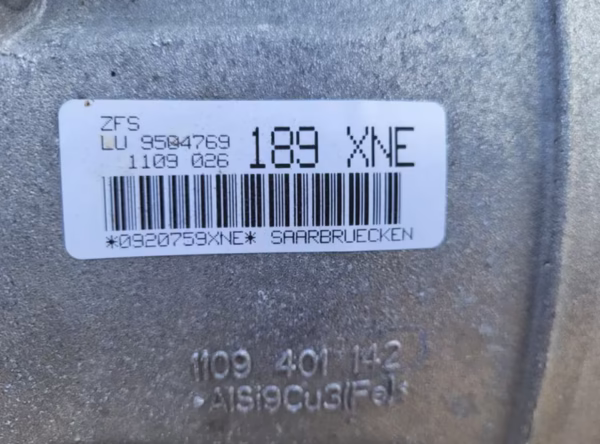

BMW M3 G80 M4 G82 automatic transmission GA8HP76Z transmission 9504846

Part Number: 9504846

Model Code: GA8HP76Z

The GA8HP76Z is the high-performance 8-speed M Steptronic transmission with Drivelogic, specifically engineered by ZF for the BMW M3 (G80) and M4 (G82). This unit marks a significant shift for the M3/M4 lineage, moving from the previous generation’s Dual-Clutch Transmission (DCT) to a torque-converter architecture capable of handling the high torque output of the $S58$ twin-turbo inline-six engine, especially in Competition and xDrive configurations.

Technical Specifications

• Compatibility: * BMW M3 (G80) / M3 Competition / M3 xDrive ($2021$–Present).



  • BMW M4 (G82/G83) / M4 Competition / M4 xDrive ($2021$–Present).

• Transmission Type: 8-Speed Torque Converter Automatic.

• Torque Capacity: Rated for up to $760\text{ Nm}$ ($561\text{ lb-ft}$), providing a significant safety margin for the $650\text{ Nm}$ produced by the Competition models.

• Drivelogic Versions: Features three distinct shift programs (Efficient, Sport, and Track) adjustable via the rocker switch on the gear selector.

Key Performance Features

• M-Specific Tuning: Unlike the standard 8HP found in the 3 Series, the “76Z” variant features reinforced internal clutches and a specialized mechatronic unit programmed for lightning-fast shift times that rival the outgoing DCT.

• Direct Downshift: Allows the driver to skip multiple gears instantly by holding the left paddle, dropping the engine directly into the lowest available gear for maximum acceleration.

• Torque Converter Lock-up: The converter locks up almost immediately after pull-away to provide a direct mechanical connection, mimicking the connected feel of a manual or DCT.

• Integration with M xDrive: Seamlessly interfaces with the transfer case on xDrive models to distribute power between the front and rear axles in milliseconds.

Technical Installation & Service

Because this is a highly digitized component, replacement of the 9504846 unit requires professional-level integration:

1. Mechatronic Programming: The internal Transmission Control Unit (TCU) is VIN-locked. A replacement transmission must be “flashed” and synchronized with the vehicle’s DME (Engine Control Unit) and the CAS/FEM (Security Modules) using BMW ISTA or authorized online systems.

2. Oil Cooling Circuit: The GA8HP76Z utilizes a high-capacity external oil cooler. After installation, the cooling lines must be vacuum-purged to ensure no air pockets remain, which could cause localized overheating during high-load shifts.

3. Fluid Requirements: This unit requires ZF Lifeguard 9 or BMW-specific ATF. Using incorrect fluid can degrade the friction coefficients of the M-tuned clutch packs, leading to shift flares or premature wear.

4. Drivelogic Calibration: A “teach-in” process for the clutch kiss-points is mandatory post-installation to ensure the shift quality meets factory M-performance standards.
