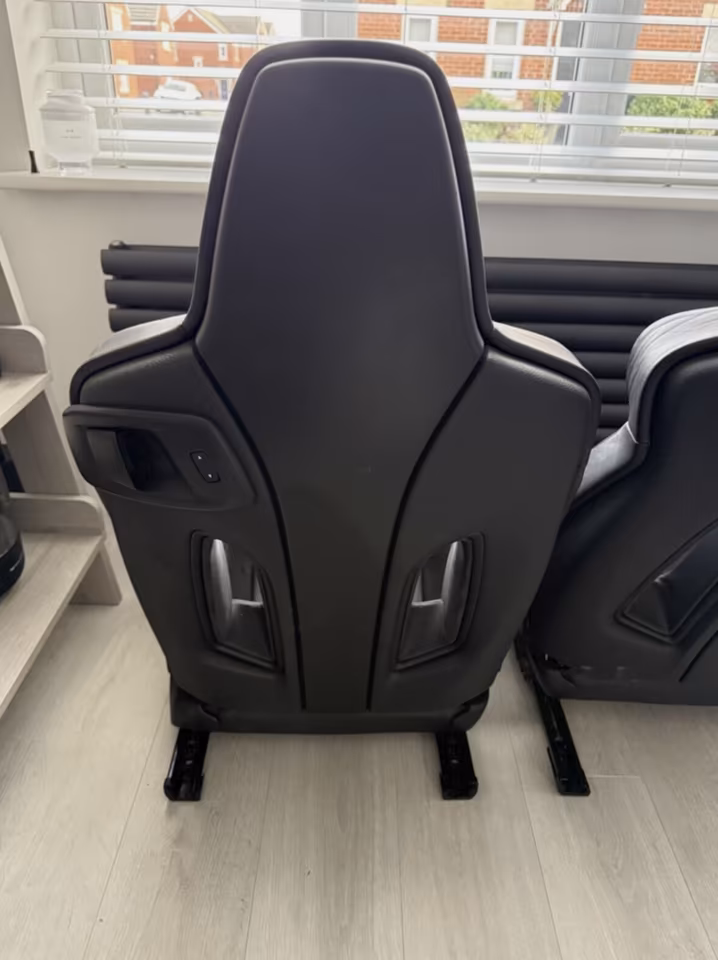

BMW M4 F82 GTS CS Seats Right + Left SET F22 F87

Compatibility: BMW M4 (F82), M3 (F80), 2 Series (F22), and M2 (F87)

This set represents the pinnacle of BMW’s factory interior engineering for the F-chassis generation. Originally designed for the M4 GTS and later the M4 CS, these seats are designed to bridge the gap between a daily-driver seat and a full racing bucket. They are a highly coveted upgrade for M2 (F87) and 2 Series (F22) owners due to their direct bolt-on compatibility and significant weight savings.

Technical Specifications

• Construction: Lightweight shell design utilizing Carbon Fiber Reinforced Plastic (CFRP) or high-strength composites.

• Upholstery: Premium Black Alcantara combined with Merino Leather.

• Weight Reduction: Approximately 10–12 kg (22–26 lbs) lighter per set compared to standard M4 “Competition” seats.

• Adjustment: Manual fore/aft and height adjustment (to save weight), with electric width adjustment for the backrest side bolsters.

Key Performance Features

• GTS Exclusive “Cut-outs”: The backrest features signature pass-through openings, which not only reduce weight but also allow for the installation of a 4-point or 6-point racing harness.

• M-Tri-Color Detailing: Features the iconic BMW M stitching on the headrests and seatbelts (depending on the specific donor vehicle package).

• Enhanced Lateral Support: Significantly deeper side and thigh bolsters compared to standard M sport seats, ensuring the driver remains centered during high-$G$ cornering.

• Alcantara Grip: The center sections utilize Alcantara to provide maximum friction, preventing the occupant from sliding during spirited track driving.

Installation & Retrofit Compatibility

While these are a physical bolt-on for the F22, F80, F82, and F87 platforms, there are critical electronic steps for a successful installation:

1. Airbag & Occupancy Sensors: If moving these into a vehicle that had standard power seats, you must transfer or code the seat occupancy sensor. Failure to do so will trigger an SRS/Airbag warning light.

2. Coding (VO Coding): Because GTS/CS seats are manually operated, the vehicle’s FEM (Front Body Electronics Module) needs to be coded to “delete” the memory seat function. This prevents the car from searching for the electric motors and throwing non-critical fault codes.

3. Seat Heating: Most GTS/CS seats do not include heating elements to save weight. if your vehicle was originally equipped with heated seats, the heating function will be lost unless custom heating pads are retrofitted.

4. Slider Rails: These sets typically come with the dedicated lightweight manual sliders. Ensure the floor bolts are torqued to 42 Nm as per BMW factory safety specifications.
