Compatibility: BMW X7 (G07) Pre-LCI (2018–2022) | Options: S5AZ (Laserlight)

The BMW Laserlight system is the pinnacle of lighting technology for the G07 X7. It is visually distinguished by blue “X” accents within the housing and offers a high-beam range of up to 600 meters—nearly double that of conventional LED headlights. These units are adaptive, featuring cornering lights and the BMW Selective Beam (anti-dazzle) function.

Technical Specifications & Part Numbers

For a “New” complete assembly, the following OEM part numbers are the primary references:

• Left (Driver Side): 63119852955 / 63119852957 / 63119481821

• Right (Passenger Side): 63119852956 / 63119852958 / 63119481822

• Technology: LED low beam + LED high beam with integrated Laser module.

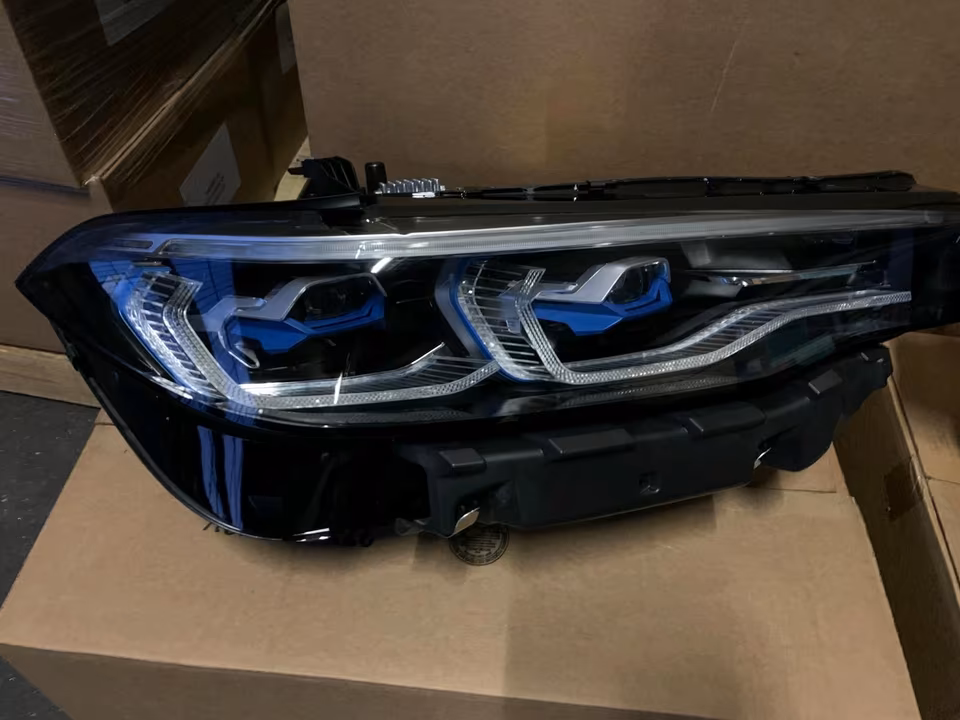

• Signature: Blue illuminated “X” design and “L-shaped” DRLs.

Required Control Modules

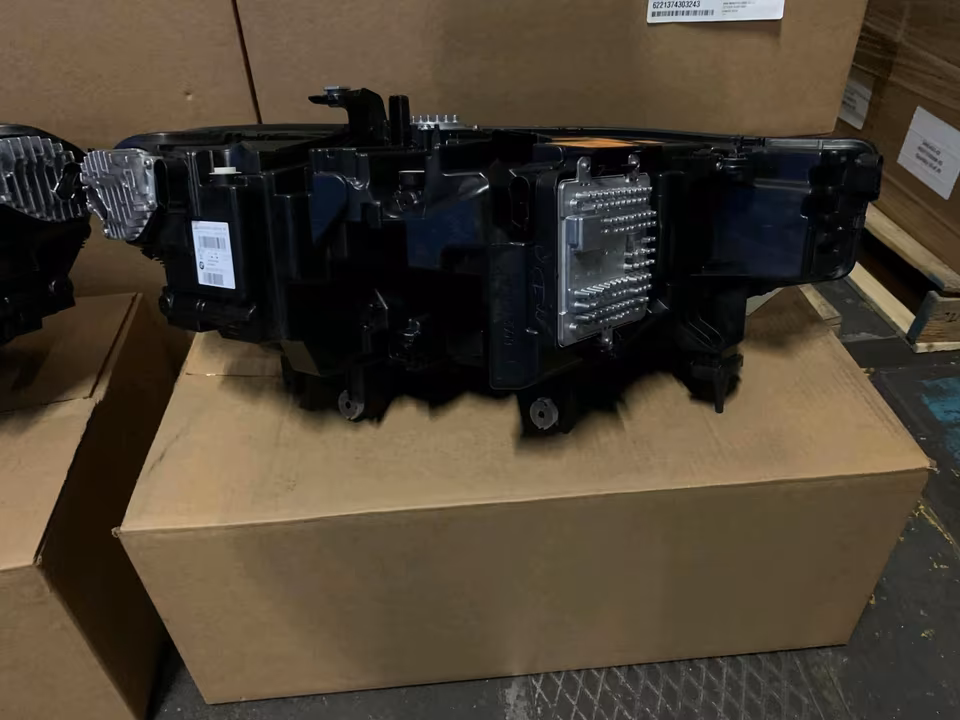

A complete Laserlight unit is not just the housing; it requires several externally mounted modules to function. If you are purchasing “bare” housings, you will need:

1. Main Light Control Unit (FLM): The primary brain for light distribution.

2. Daytime Running Light (DRL) Modules: (e.g., 63119466177, 63119466178) – Powers the iconic halo rings.

3. Turn Indicator Modules: (e.g., 63119466175, 63119466176) – Manages the LED signaling.

4. Fan/Cooling Modules: Essential for dissipating the high heat generated by the Laser diodes.

Key Performance Features

• 600m High Beam Range: At speeds above 60 km/h, the Laser module activates to augment the LED high beams, significantly increasing visibility on dark highways.

• BMW Selective Beam: An “intelligent” high-beam assistant that masks out the light hitting oncoming or lead vehicles while keeping the rest of the road fully illuminated.

• Adaptive Swivel: The lenses move in response to steering input, pre-illuminating corners before the vehicle enters them.

• Variable Light Distribution: Automatically adjusts the beam width based on speed (wide for city, narrow/long for motorway).

Professional Installation & Cataloging Notes

1. Coding (Programming): These headlights are heavily integrated into the vehicle’s FlexRay network. They must be initialized and coded using BMW ISTA or professional software like E-Sys. Without coding, the Laser function will remain deactivated and DRLs may flicker.

2. Laser Safety: The Laserlight system is a Class 2 laser product. The laser itself is directed through a phosphorus fluorescent material to create white light; it is safe for the eyes once it leaves the lens, but the internal diodes should never be tampered with.

3. Retrofit Complexity: Upgrading an X7 from standard Adaptive LED to Laserlight is possible but requires a high-amperage wiring harness check and potentially a different BDC (Body Domain Controller) depending on the car’s current build.

4. Hardware: Like most BMW lighting, the mounting bolts are aluminum stretch bolts. Use new hardware and torque to 5 Nm to avoid cracking the plastic mounting tabs.
