Chevrolet Corvette C8 – Original Z51 Brake System – OEM – New
OEM Z51 Brake System for the C8 Corvette Stingray (Regular Production Option J55) is a significant upgrade over the base (JL9) brakes. It features larger rotors, high-friction performance pads, and specialized monobloc calipers designed by Brembo to handle the thermal loads of track use.
1. Core System Components (Z51 Package)
The J55 system is distinguished by its increased thermal capacity and “eBoost” (brake-by-wire) calibration.
| Component | Specification (Z51 / J55) | Notes |

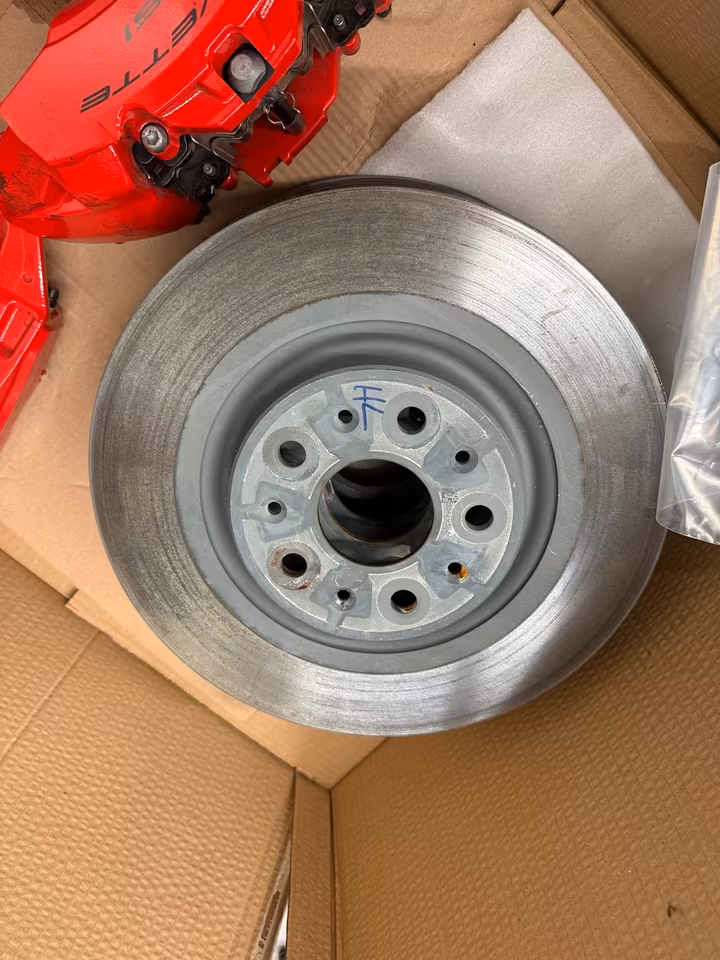

| Front Rotors | 13.6″ (345mm) | E-coated for corrosion resistance. |
| Rear Rotors | 13.8″ (350mm) | Larger than front to handle mid-engine weight bias. |

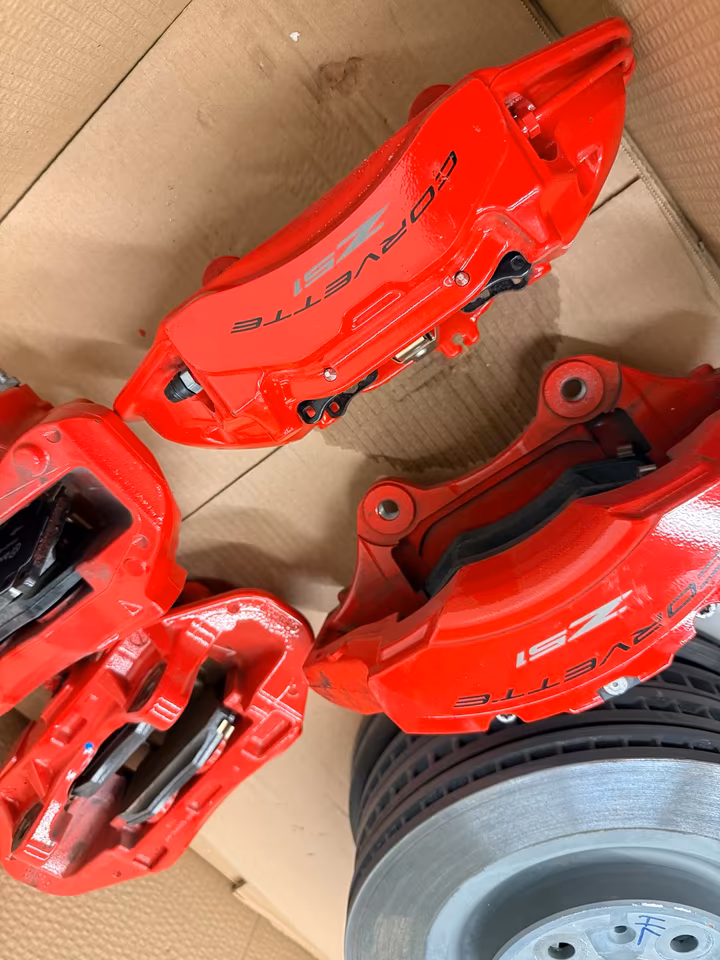

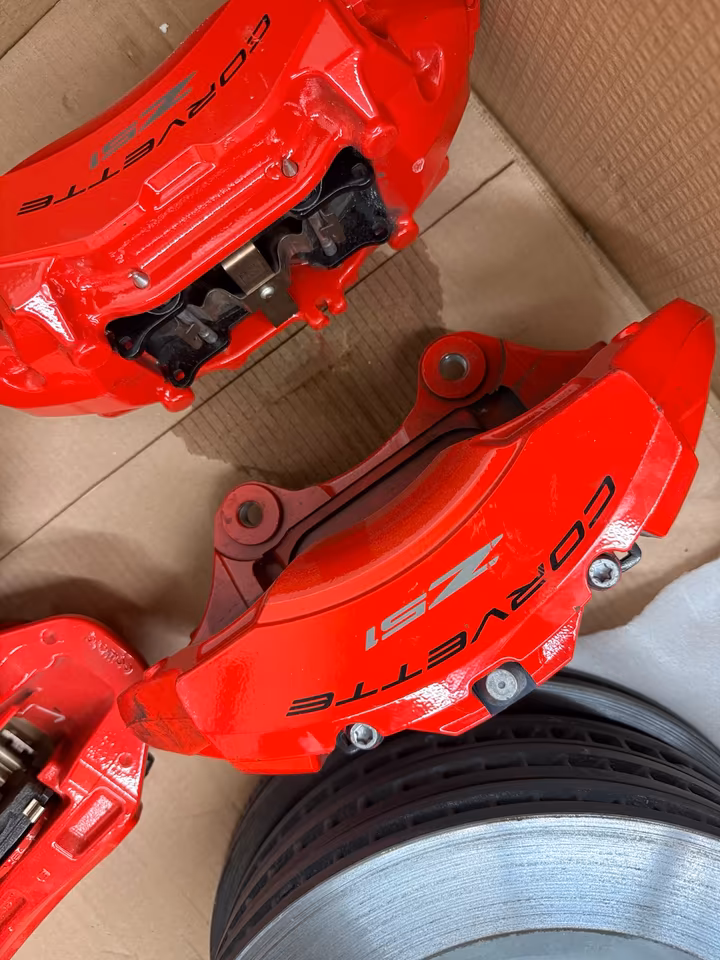

| Front Calipers | Brembo 4-Piston Monobloc | Fixed calipers; available in Red, Yellow, or Black. |
| Rear Calipers | Brembo 4-Piston Monobloc | Features integrated Electronic Parking Brake (EPB). |
| Brake Pads | High-Friction Semi-Metallic | Specifically tuned for bite and fade resistance. |
2. Current OEM Part Numbers (2026)
For a “NEW” inventory listing, verify these primary GM part numbers. Note that calipers have different codes based on color.
-
Front Brake Pad Kit (Z51): #85614851 (Replaces several older supersessions).
-
Rear Brake Pad Kit (Z51): #84777501
-
Front Rotors (Z51 – Pair): #85614851 (Approx. $580 – $700 retail).
-
Front Caliper (Bright Red – RH): #84733265
-
Front Caliper (Bright Red – LH): #84733264
3. Commercial Market Value (2026)
As of early 2026, the cost for a complete factory-new J55 conversion or replacement set is substantial.
-
Full OEM Brake Kit (4 Calipers, 4 Rotors, Pads): $3,200 – $4,500 (Retail).
-
“Take-Off” Sets: Frequently found on the secondary market for $1,800 – $2,500 when owners upgrade to Carbon Ceramic (Z07) or aftermarket Big Brake Kits (AP Racing/Wilwood).
4. Key Technical “Watch-Outs”
-
eBoost Calibration: The C8 uses a brake-by-wire system. If you are retrofitting these onto a base (Non-Z51) Stingray, the vehicle’s computer may require a software update to recognize the different pressure requirements of the larger Z51 pistons.
-
Brake Ducting: Genuine Z51 brake kits should ideally be sold with the Z51 cooling ducts. These are plastic shrouds that snap onto the control arms to funnel air directly into the rotor vanes.
-
Brake Dust: The OEM Z51 pads are notorious for high dust output. Many luxury clients request a “swap” to ceramic pads (like PowerStop Z26 or Hawk Performance Ceramic) before installation to keep wheels cleaner, though this slightly reduces peak track performance.
