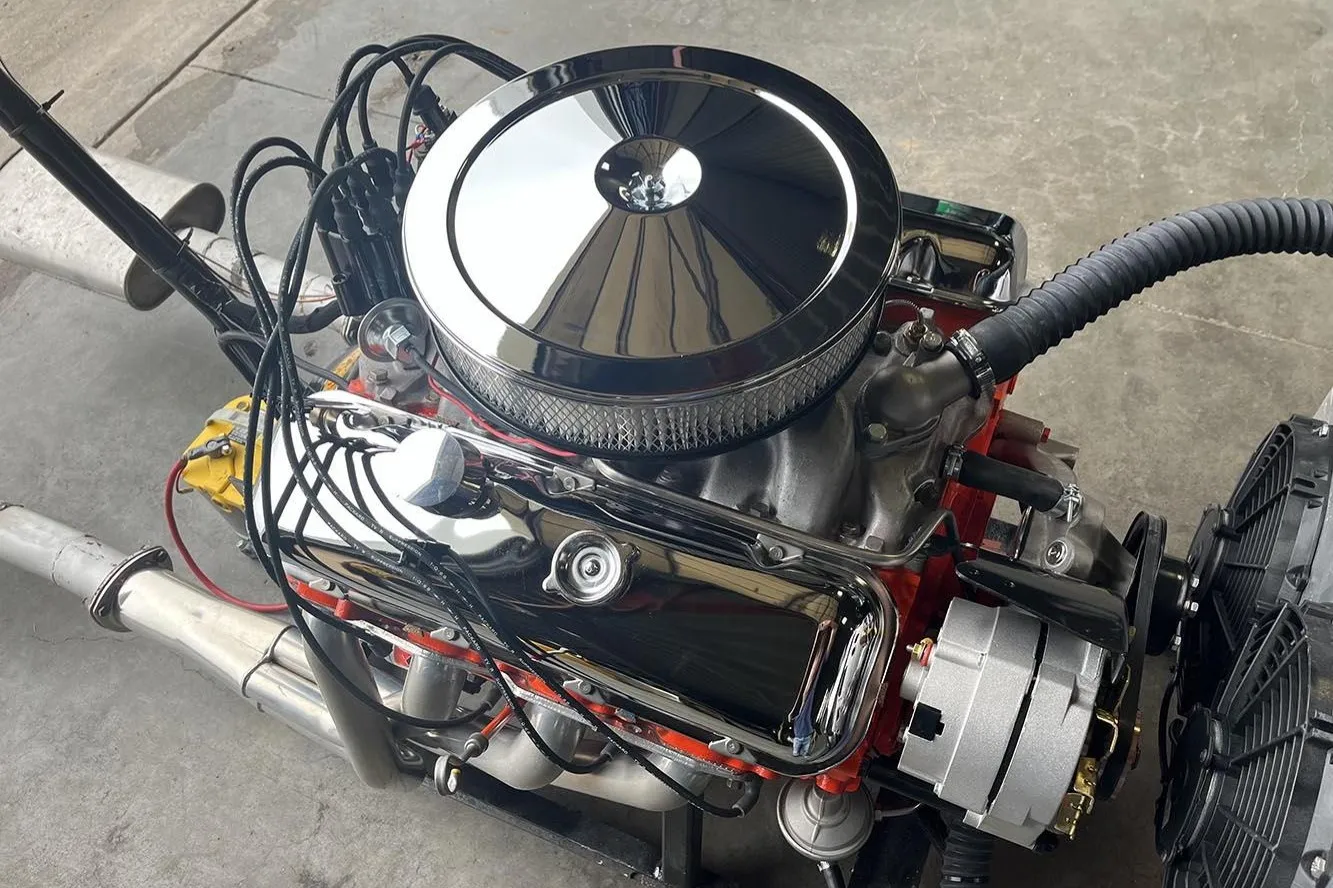

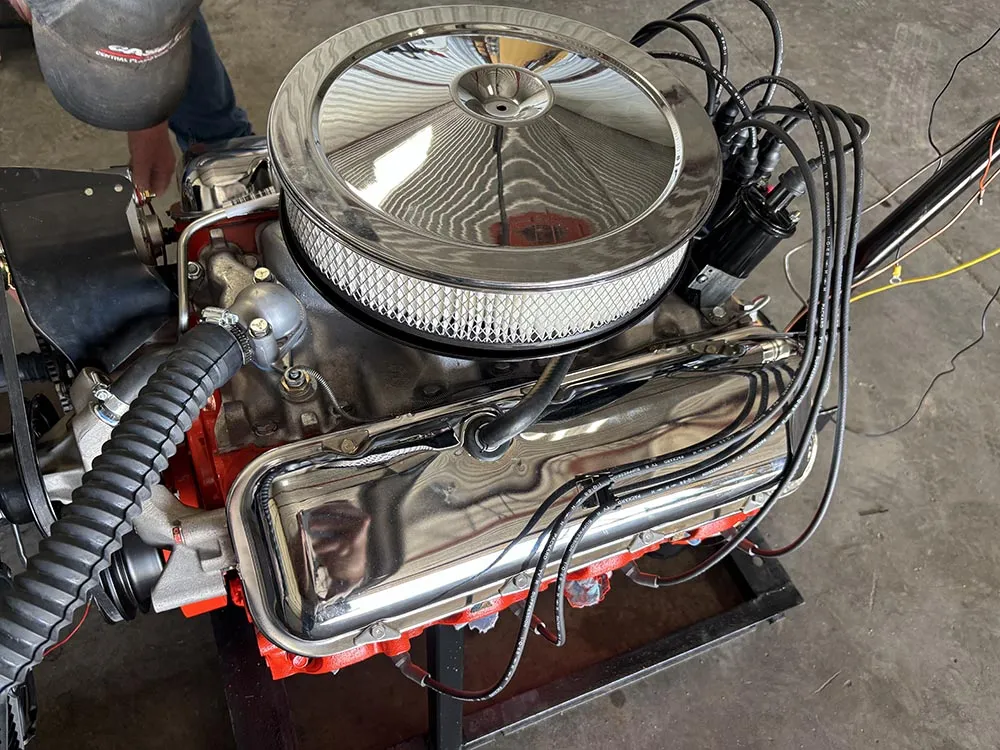

Chevrolet L78 V8 Engine

The Chevrolet L78 is the high-performance pinnacle of the 396 cubic-inch Big Block family. Produced between 1965 and 1970, it was the “bad boy” engine for the Chevelle SS, Camaro SS, and Nova, often outperforming its larger-displacement siblings due to its high-revving nature and solid-lifter valvetrain.

In 2026, the L78 is a highly prized “matching numbers” asset. Because many were blown up on drag strips in the late 60s, a genuine, date-coded L78 block is worth a significant premium.

1. Technical Specifications

Listing Details

• 402ci V8
• Block Casting #3969854

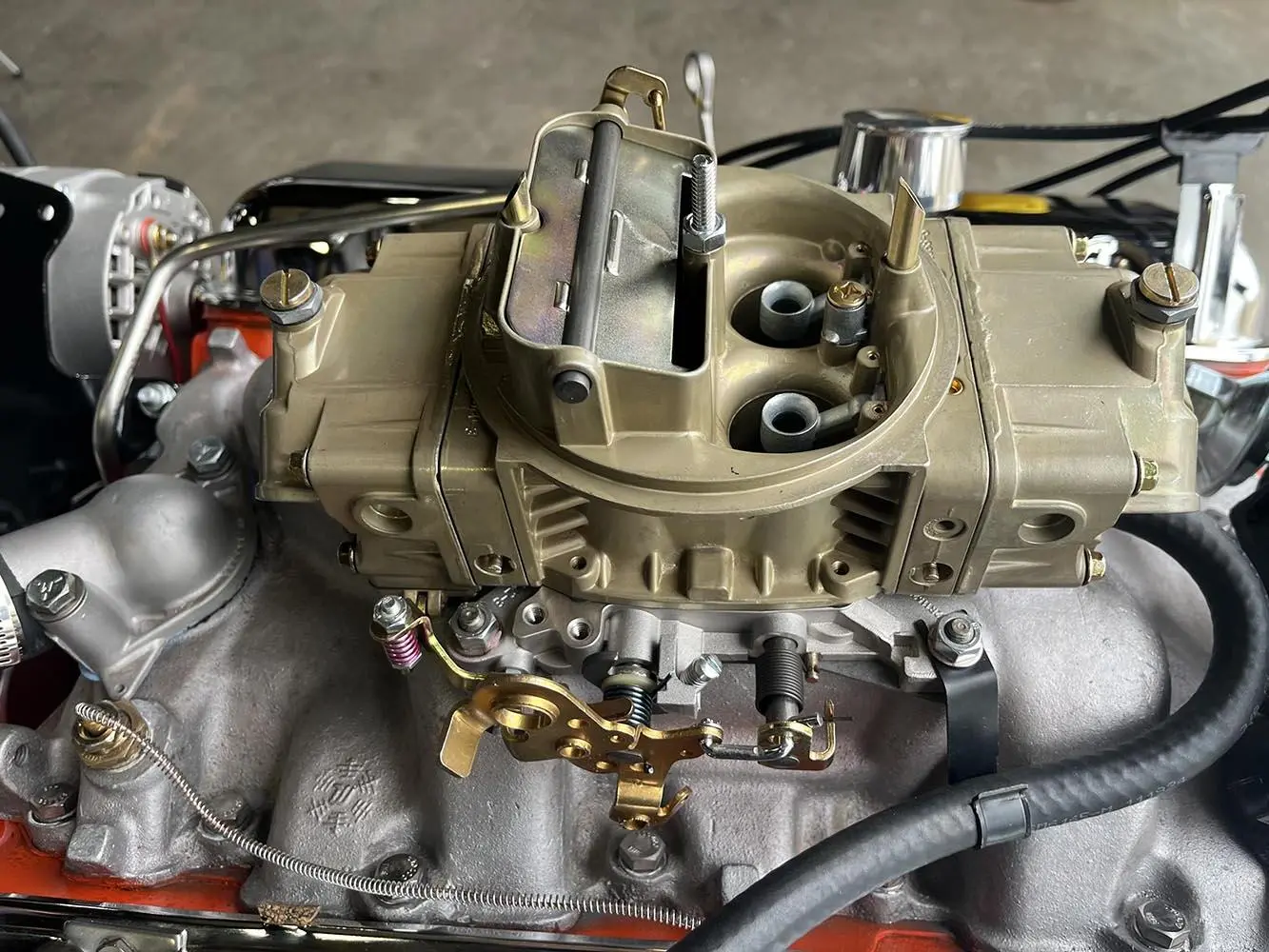

• Holley Double-Pumper Carburetor
• Isky Flat Tappet Camshaft
• Winters Intake Manifold
• Cross-Drilled Crankshaft
• Stainless Steel Valves

2. 2026 Market Valuation (Estimated USD)

Price is dictated by whether the block is a “Service Replacement” or a date-coded original.

3. How to Identify a Real L78 (The “Checklist”)

In 2026, “clones” are everywhere. To verify a genuine L78 block:

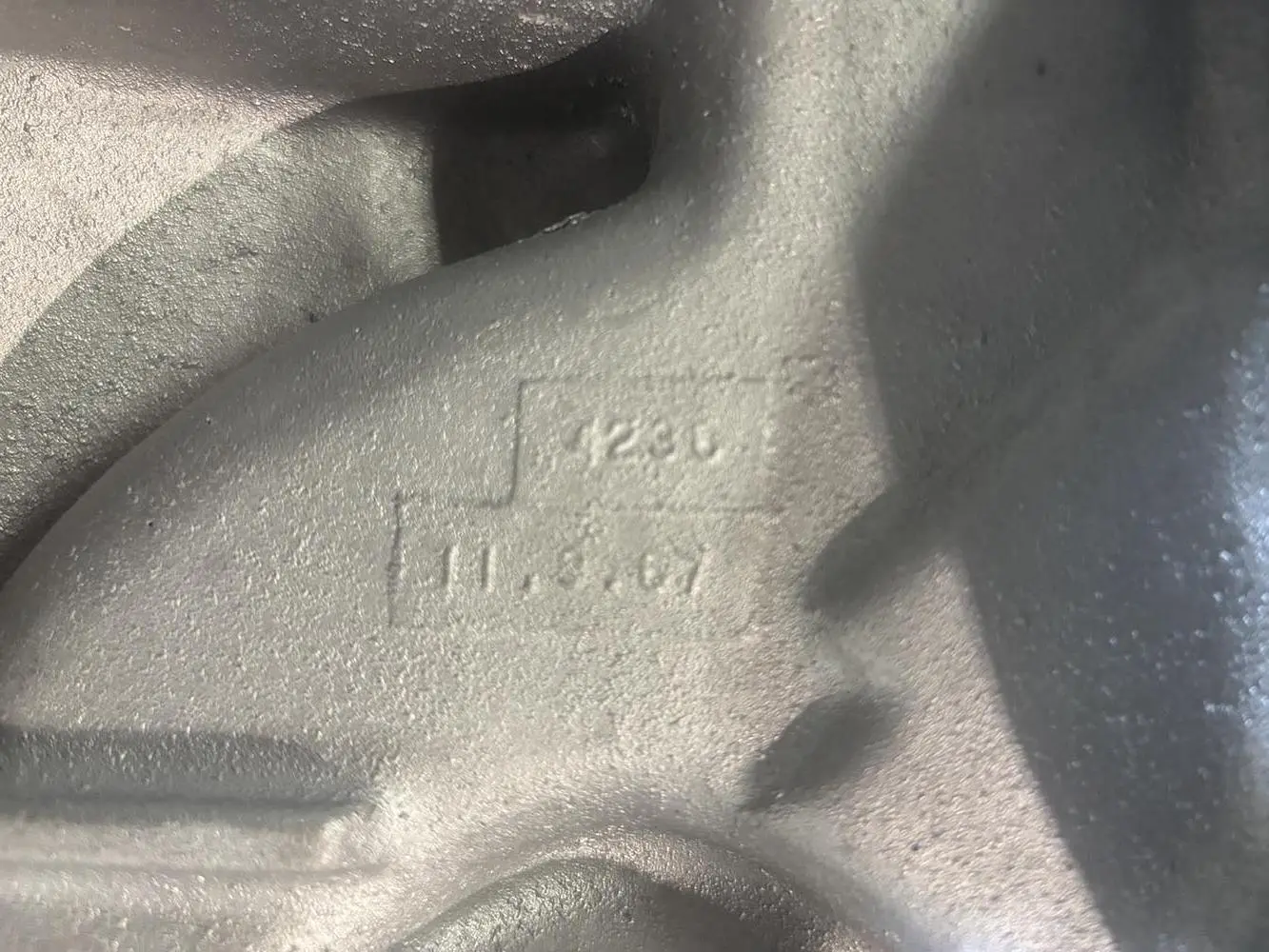

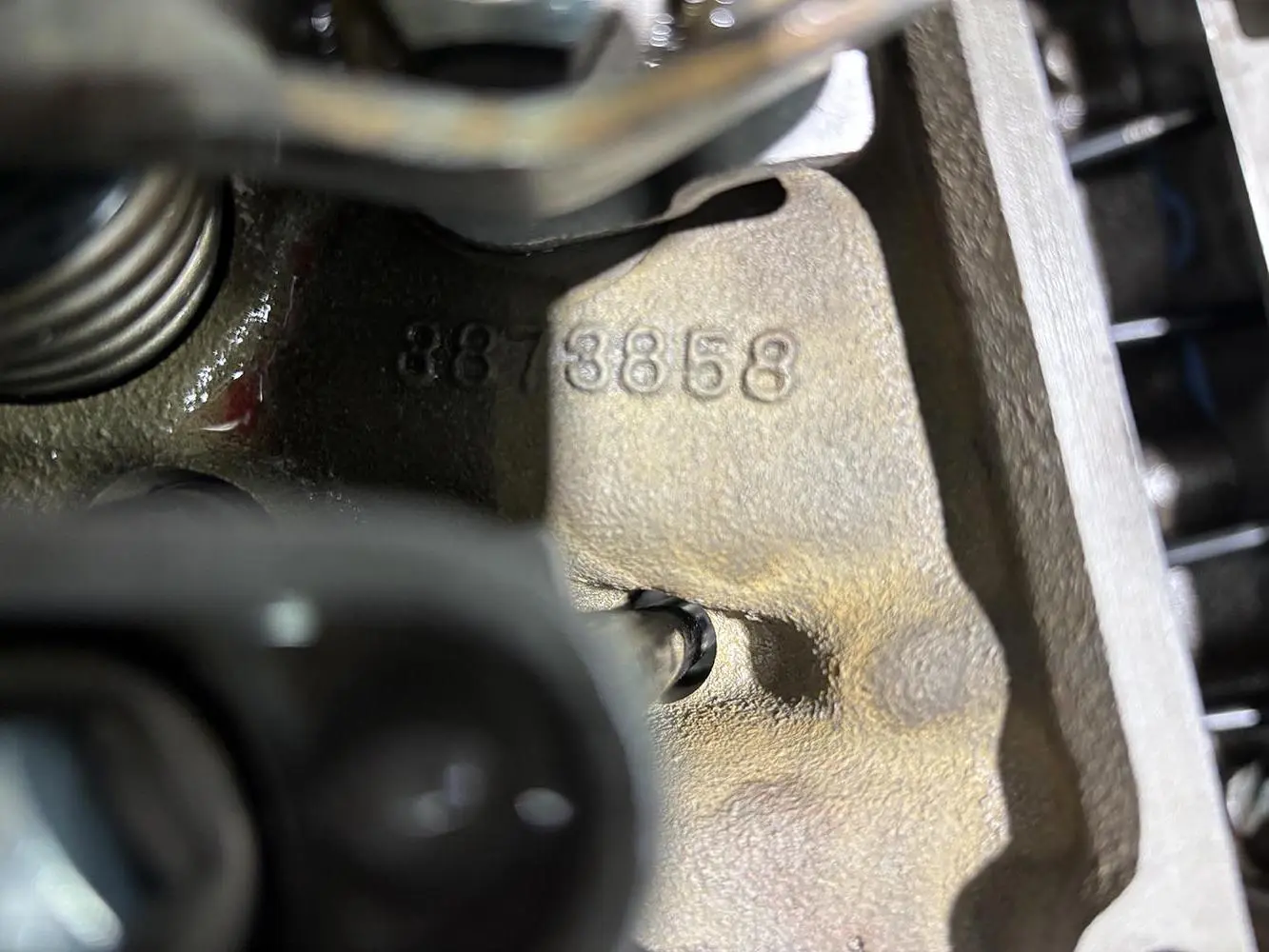

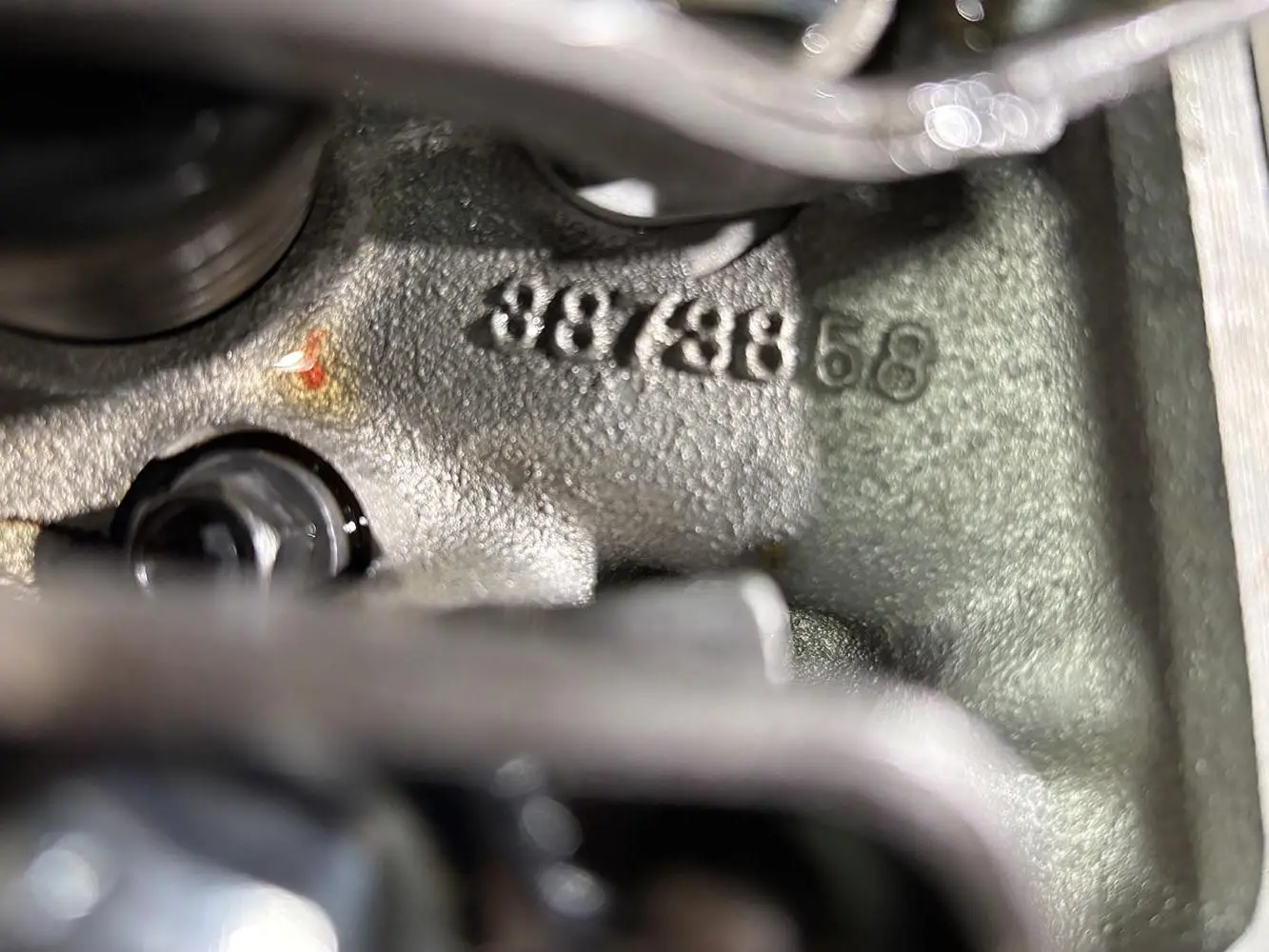

• Casting Numbers: Look for 3955272 (1969) or 3969854 (1970).

• The “Suffix Code”: On the front engine pad, look for codes ending in EG, JH, MQ, or KO.

• 4-Bolt Mains: All L78 engines feature 4-bolt main bearing caps. If you drop the oil pan and see 2-bolt mains, it is a standard 325hp or 350hp 396, not an L78.

• Winter’s “Snowflake” Intake: The L78 came with a high-rise aluminum intake manifold featuring the Winter’s Foundry snowflake logo.

4. Critical “2026 Status” Maintenance

• Solid Lifter Lash: Unlike modern engines with hydraulic lifters, the L78 requires a manual valve adjustment (setting the “lash”) every 3,000 miles. If you don’t hear a light rhythmic tapping, the valves are too tight and will eventually burn.

• Octane Requirements: With 11.0:1 compression, this engine will “ping” or detonate on standard 91 octane pump gas. In 2026, owners typically use 93 octane with an octane booster or mix in a small amount of race fuel to prevent piston damage.

• Internal Upgrades: During a 2026 rebuild, it is common to swap the original heavy pistons for modern forged aluminum pistons and a roller camshaft conversion. This maintains the L78 “look” but makes it significantly more reliable for modern street driving.

5. 2026 Pro-Tip: The “402” Confusion

In 1970, Chevrolet bored the 396 out by .030 inches, creating the 402, though they continued to label the cars as “396” for marketing and insurance reasons. If you find a “396” from 1970, it is technically a 402, and it is the most refined version of the L78.
