Corvette C8 Z51 brake system
Z51 Performance Brake System (Regular Production Option J55) is a core pillar of the C8 Corvette Stingray’s track capability. As a specialist in luxury spare parts, you’ll find that this system is the most frequent upgrade for “Base” model owners, as it replaces the entry-level single-piston sliding calipers with a high-performance Brembo fixed-caliper setup.
1. Technical Hardware Specifications (J55 Spec)
The Z51 package shifts the braking bias to account for the mid-engine weight distribution ($40/60$ front-to-rear), resulting in a larger rear rotor than the front—a rarity in performance cars.

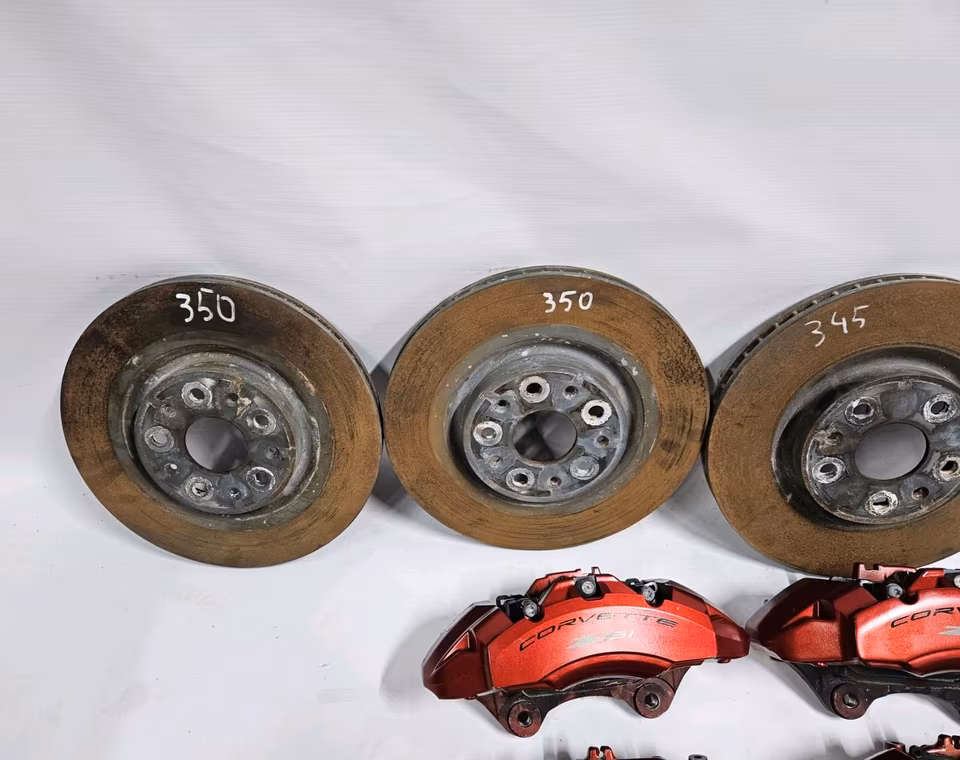

| Component | Dimensions (Z51 / J55) | Hardware Type |
| Front Rotors | 13.6″ (345mm) | Vented, E-coated Ferritic Nitro-Carburized (FNC). |
| Rear Rotors | 13.8″ (350mm) | Vented, E-coated FNC. |

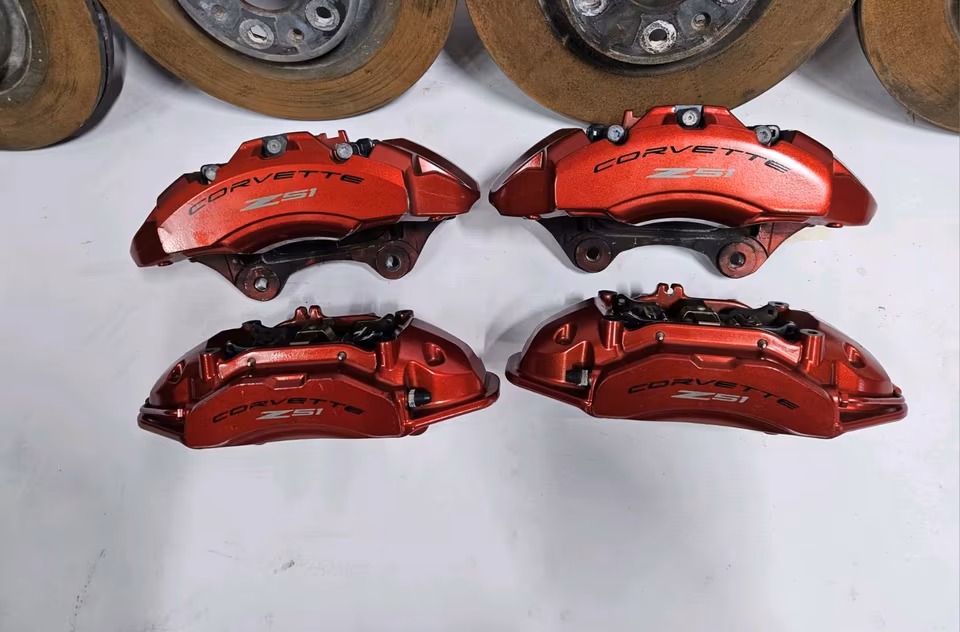

| Front Calipers | 4-Piston Fixed | Brembo Monobloc Aluminum. |
| Rear Calipers | 4-Piston Fixed | Brembo Monobloc (Integrated Electronic Parking Brake). |
2. The “eBoost” Advantage
The C8 uses a Brake-by-Wire system called “eBoost.” This eliminates the bulky vacuum booster, allowing for more trunk space while enabling the driver to customize pedal feel.
-
Tour Mode: Light, daily-driving effort.
-
Sport Mode: Increased initial “bite” and firmer resistance.
-
Track Mode: Stiff pedal with a progressive feel for precision trail-braking.
3. Essential OEM Part Numbers (2026 Inventory)
For your website, Buy Mustang parts Ltd, these are the high-priority “New” part numbers for the Z51 system:
-
Front Brake Pad Kit (Z51): #85614851 (Retail: ~$760 | Wholesale: ~$515)
-
Rear Brake Pad Kit (Z51): #85614852 (Retail: ~$725 | Wholesale: ~$475)
-
Front Rotor Kit (Pair): #85614851 (Includes 2 Rotors)
-
Bright Red Caliper (RH Front): #84733238
-
Bright Red Caliper (LH Front): #84733237
4. Commercial Market Trends & “Take-Off” Value
Because many C8 owners immediately upgrade to even larger Big Brake Kits (BBK) from brands like AP Racing or Alcon, there is a robust market for “New Take-Off” Z51 systems.
-
Full Conversion Kit Value: A complete set (4 calipers, 4 rotors, and pads) taken off a new car typically retails for $1,800 – $2,500.
-
The “Base-to-Z51” Retrofit: Owners of the base (JL9) Corvette often seek these out. Note that for a perfect retrofit, they also need the Z51 Cooling Ducts—plastic shrouds that mount to the control arms to funnel air into the rotors.
