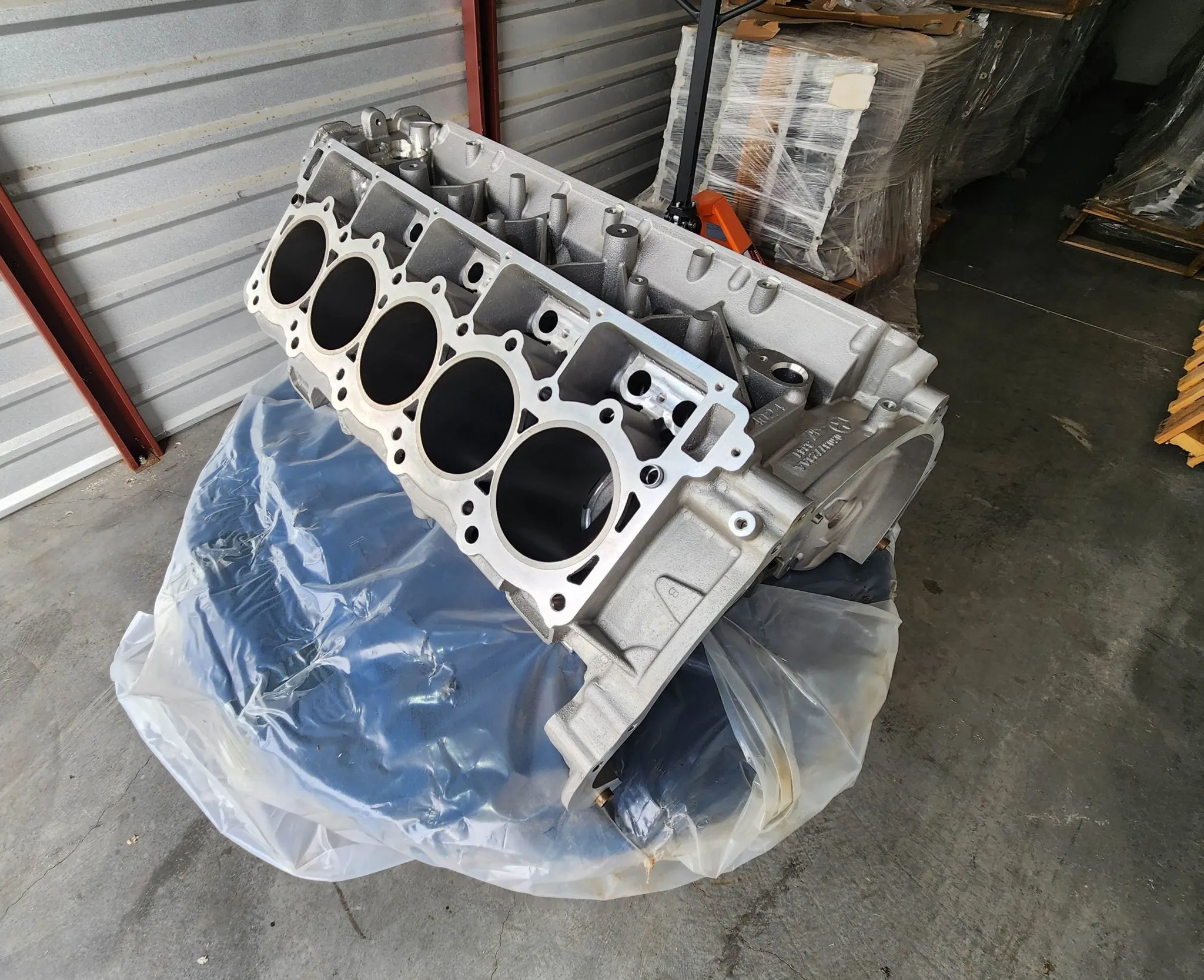

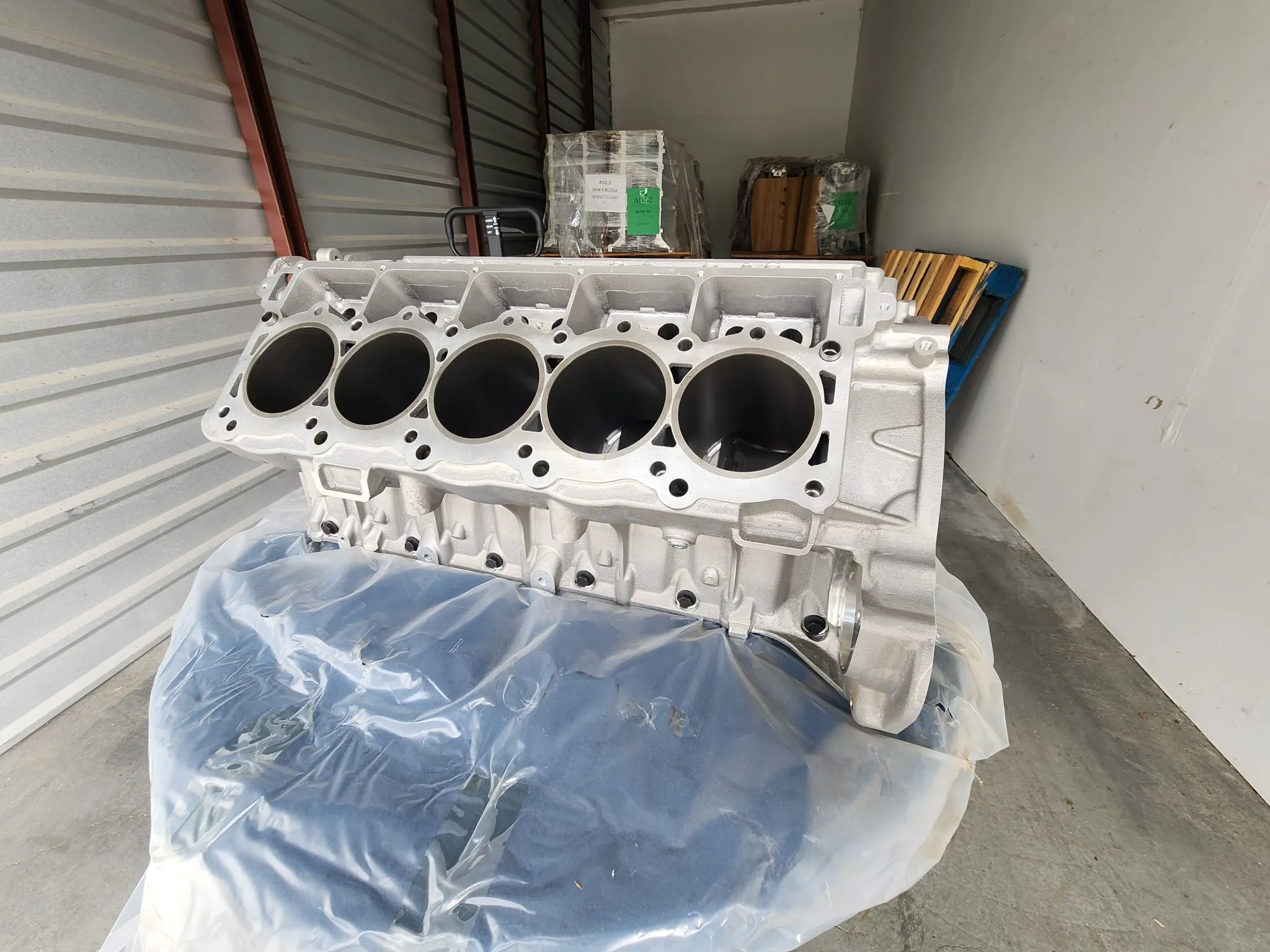

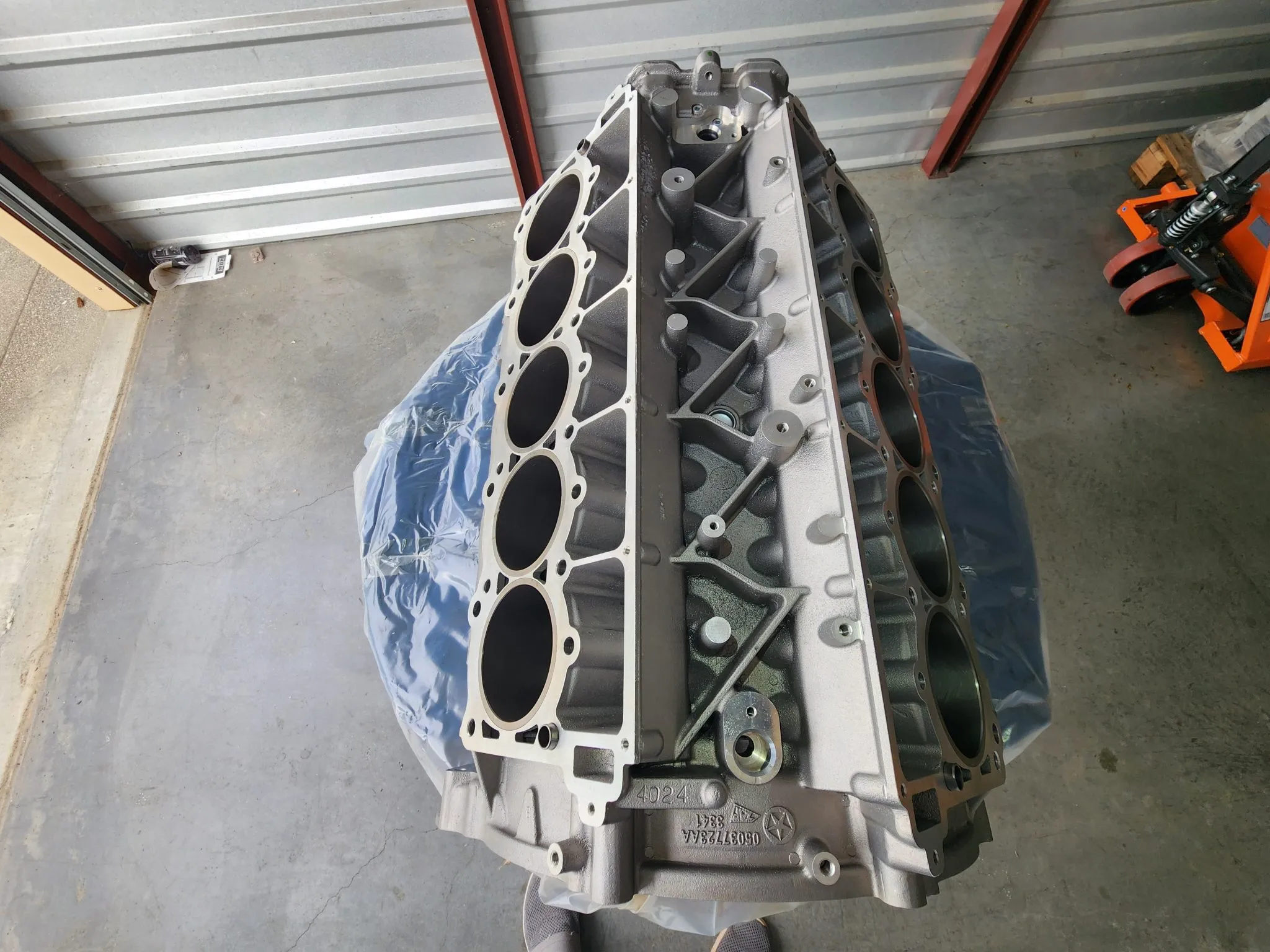

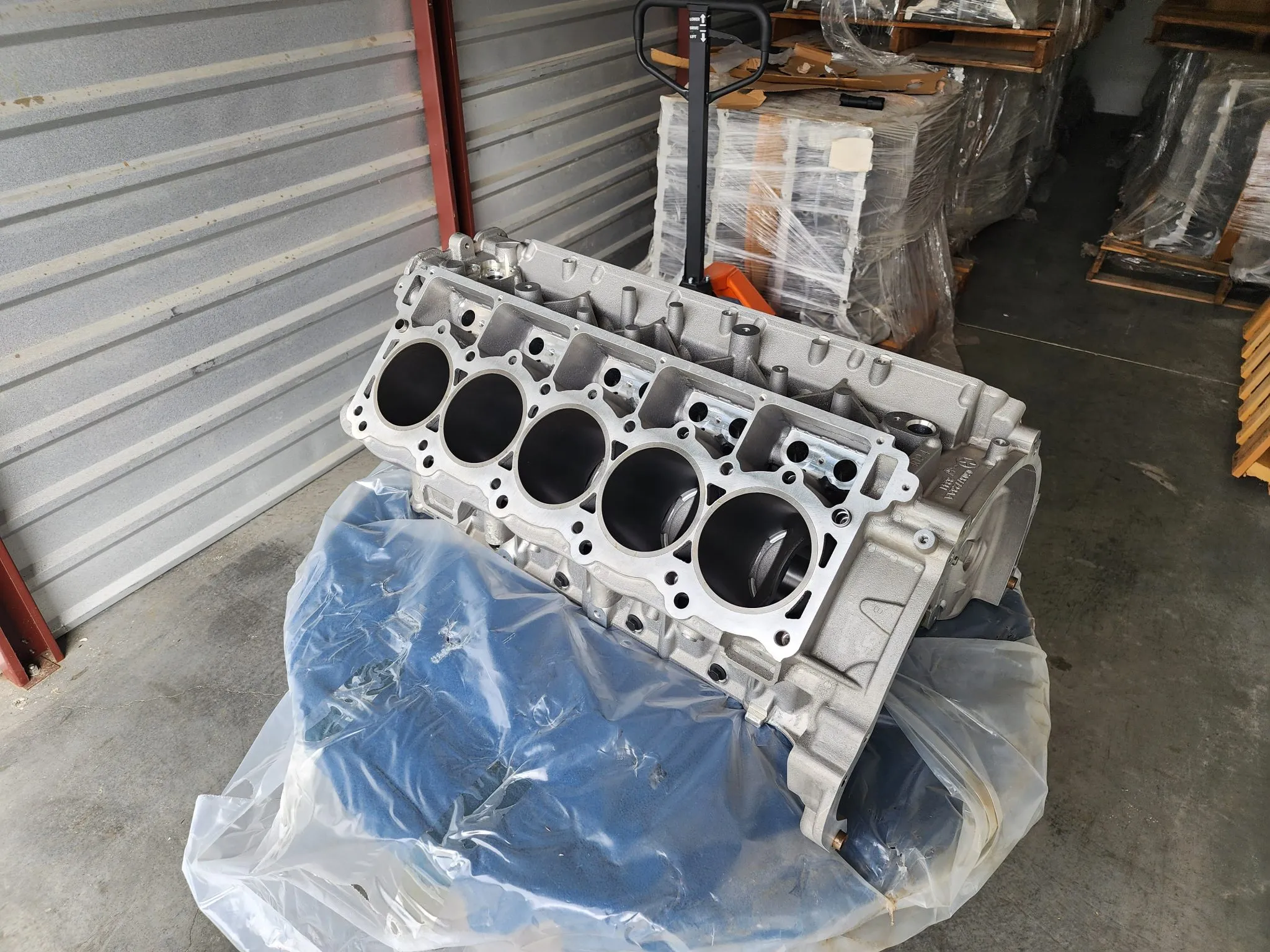

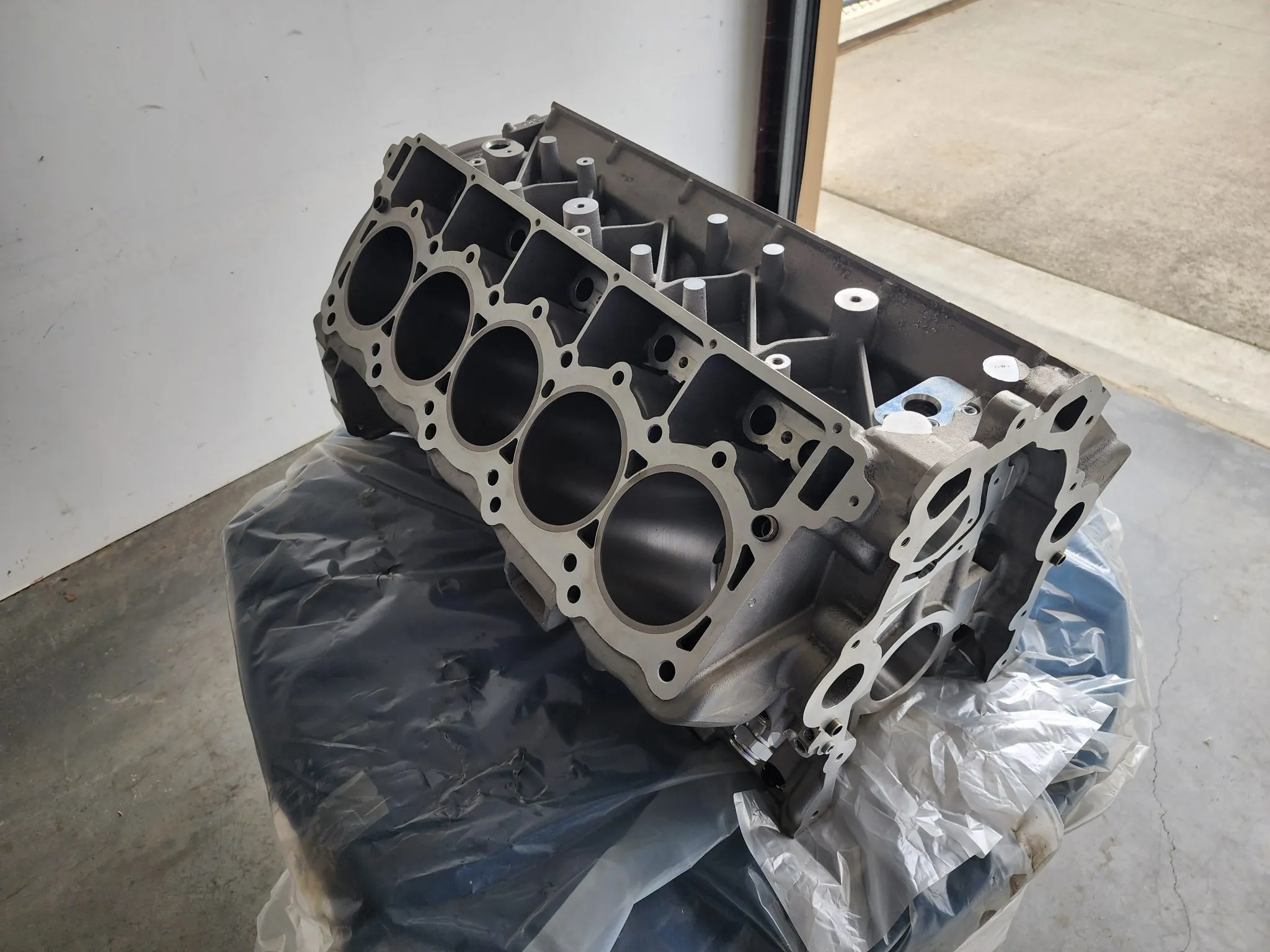

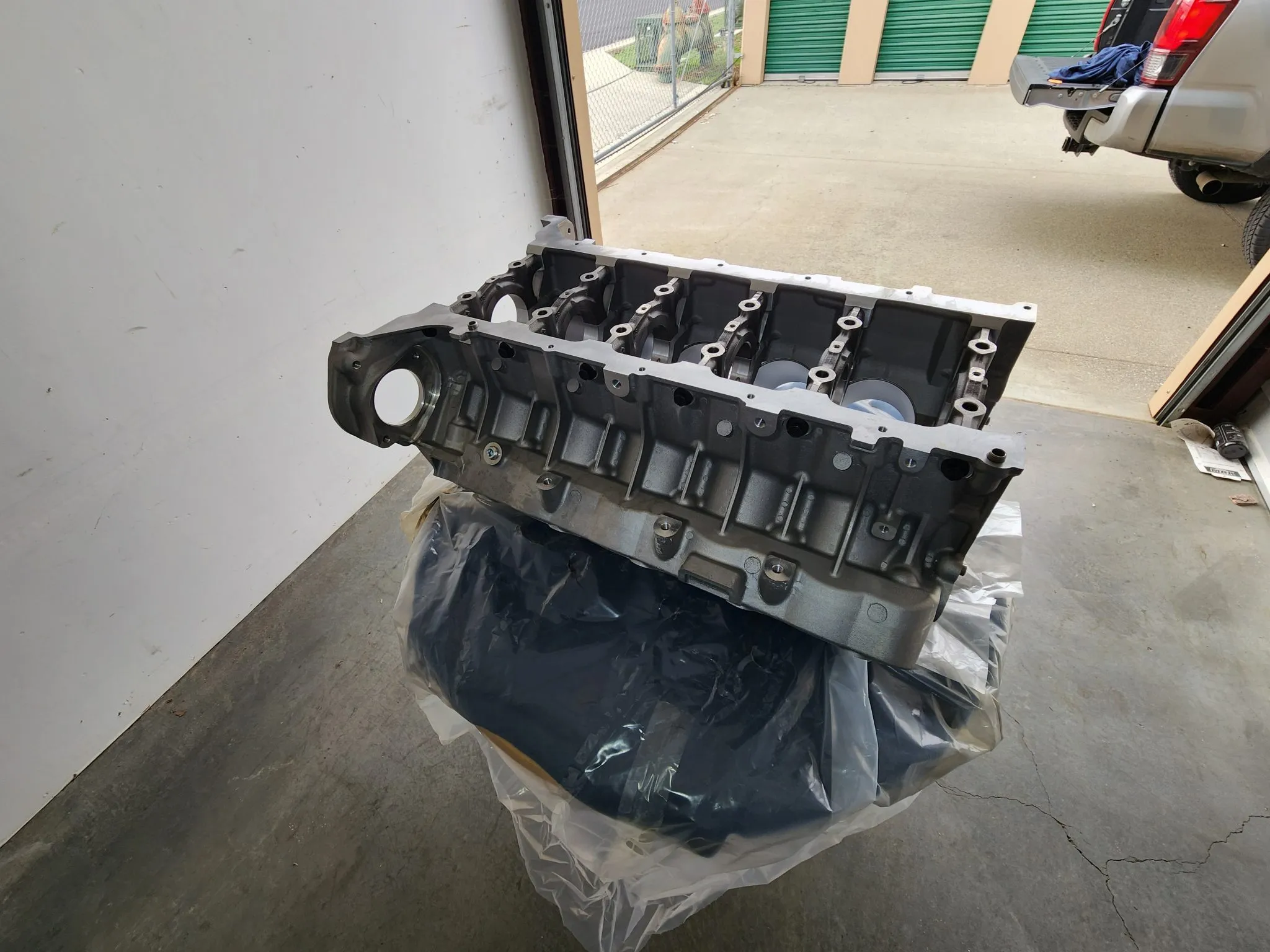

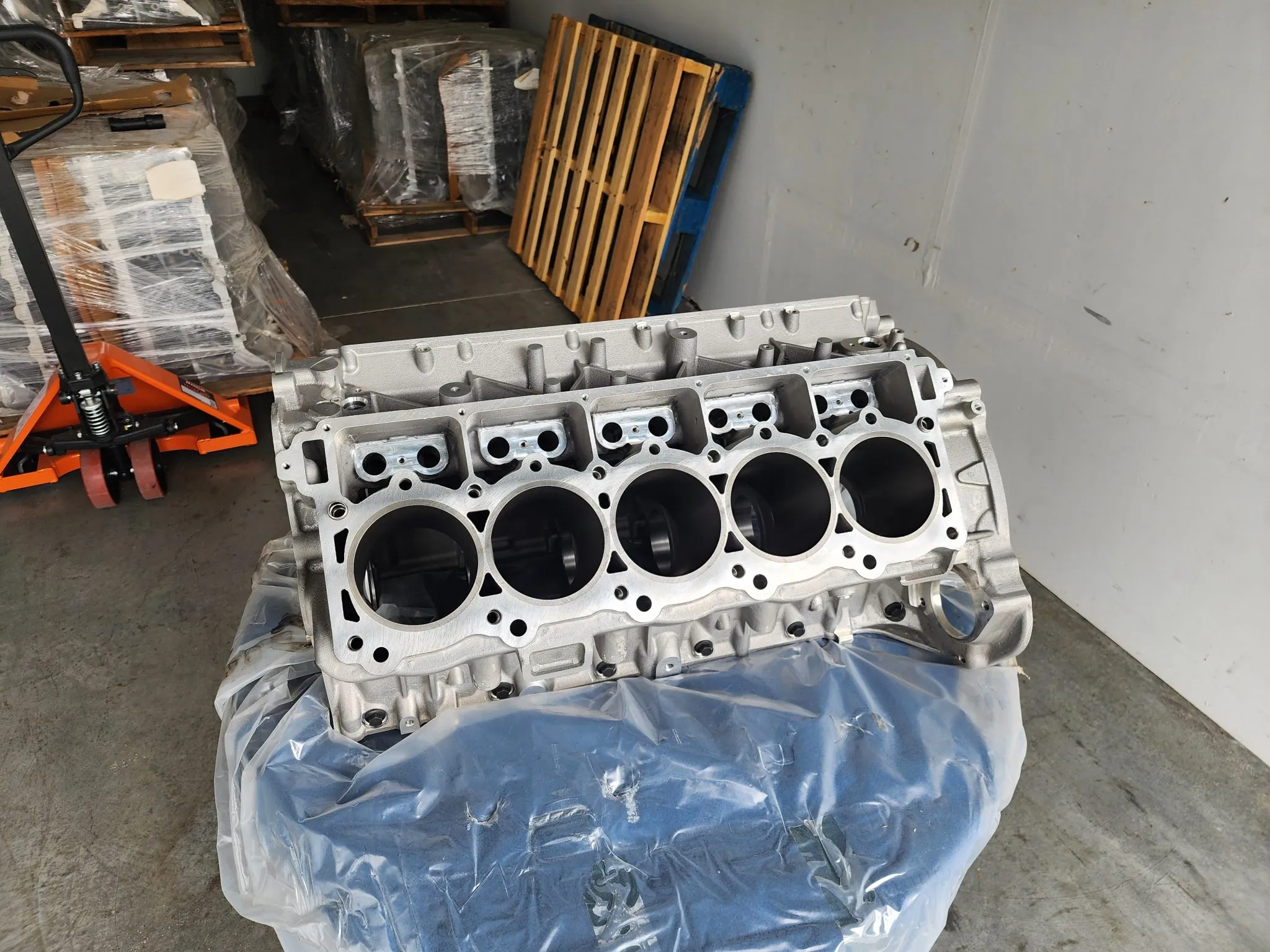

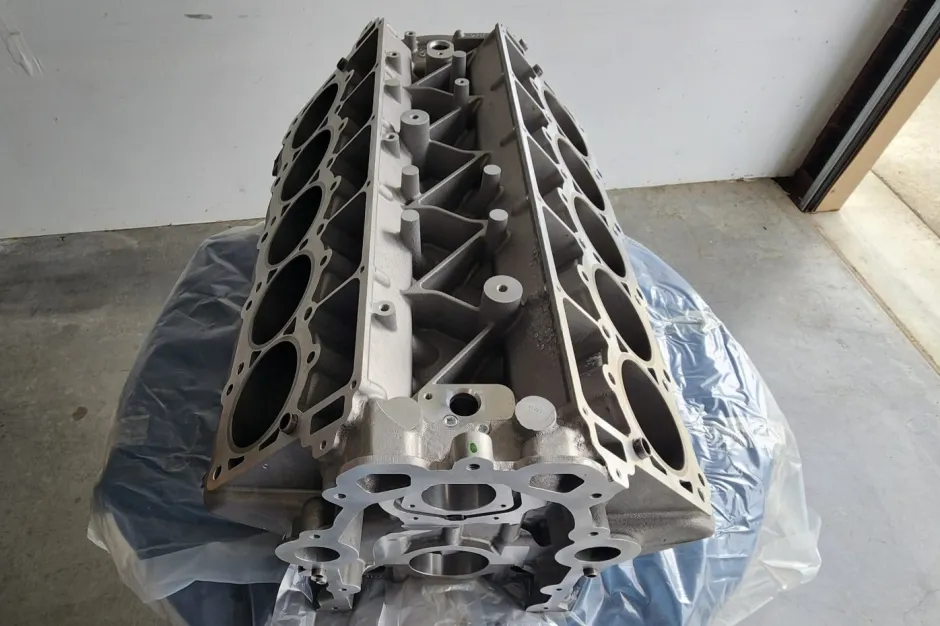

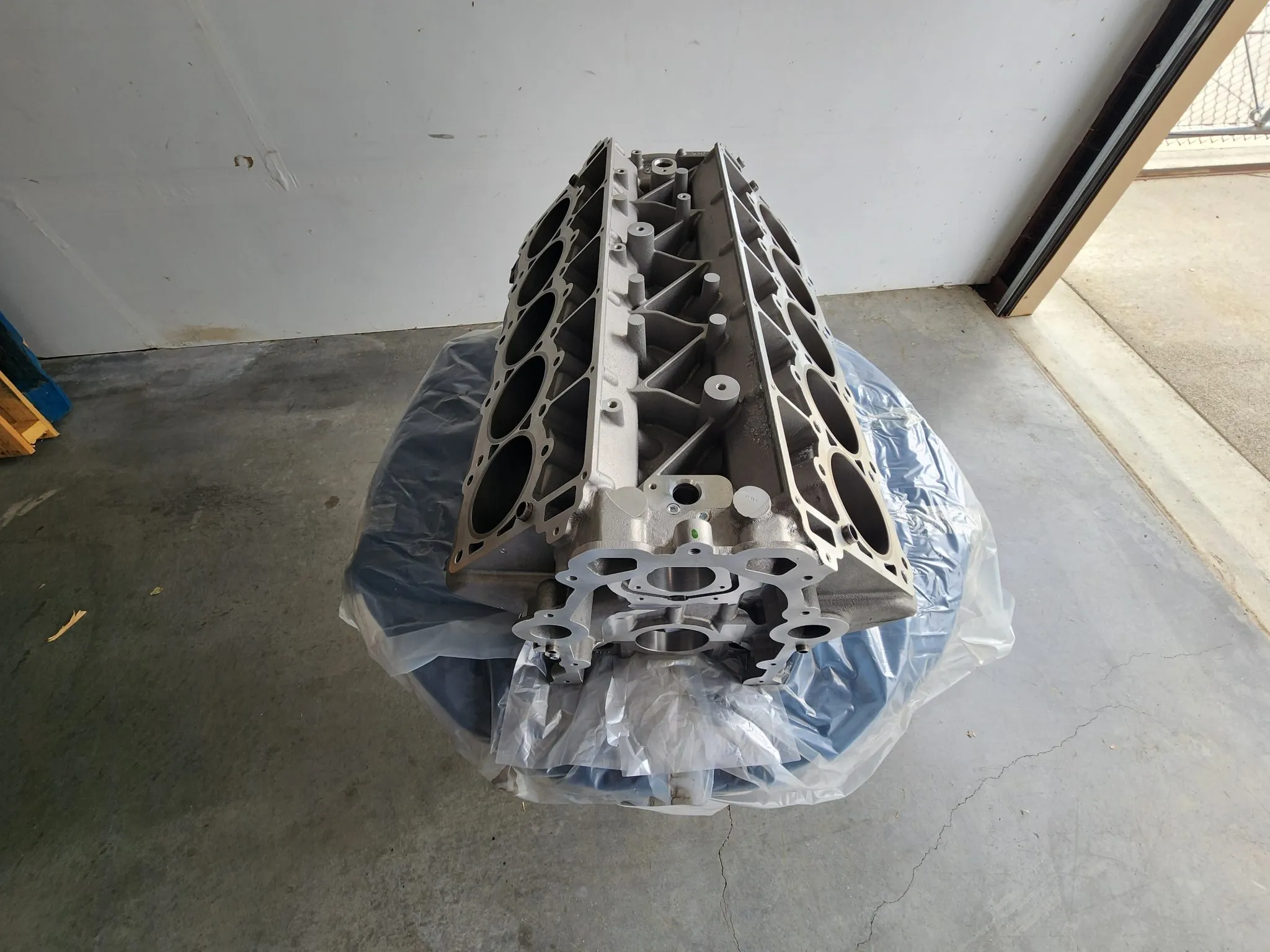

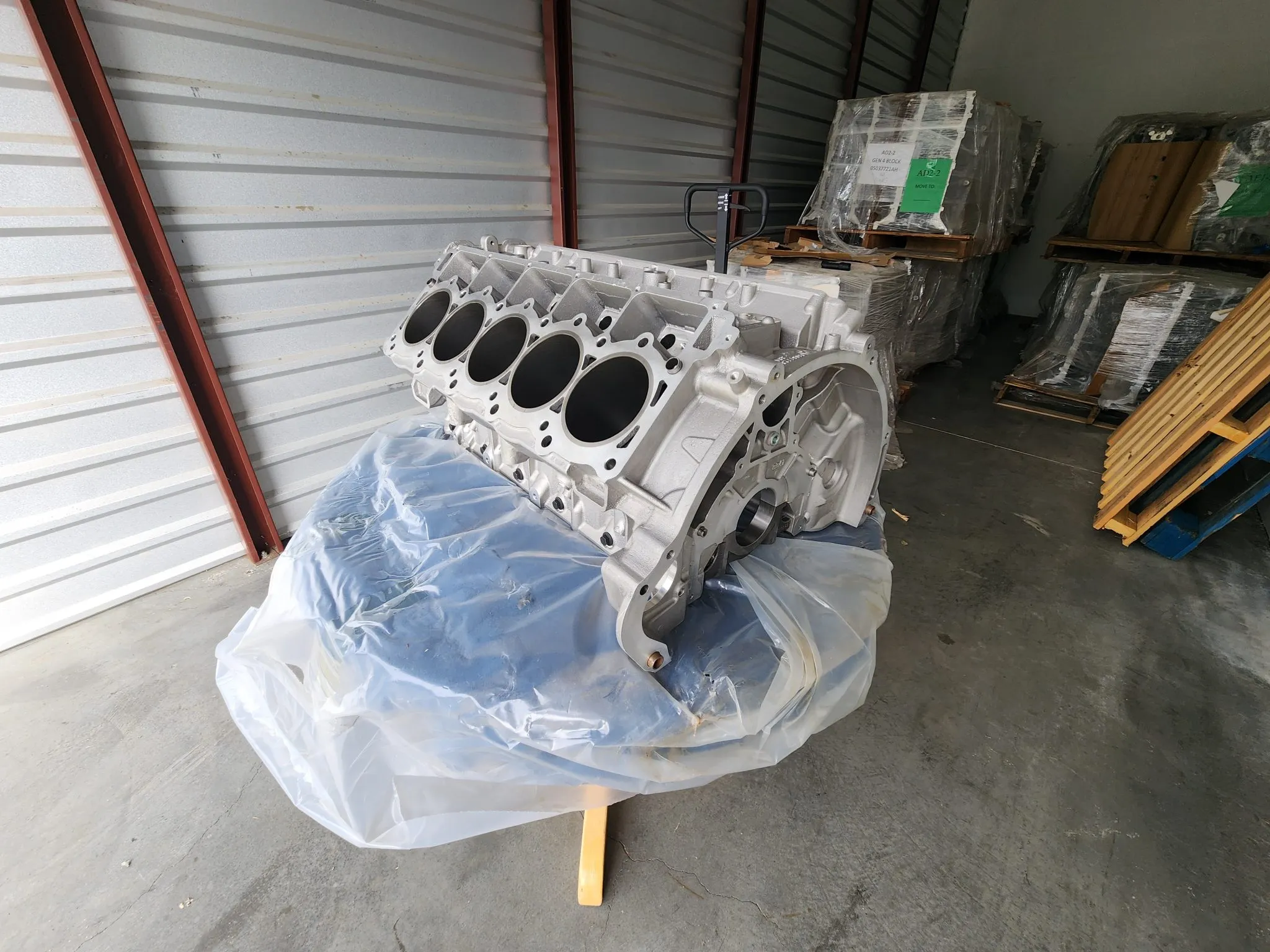

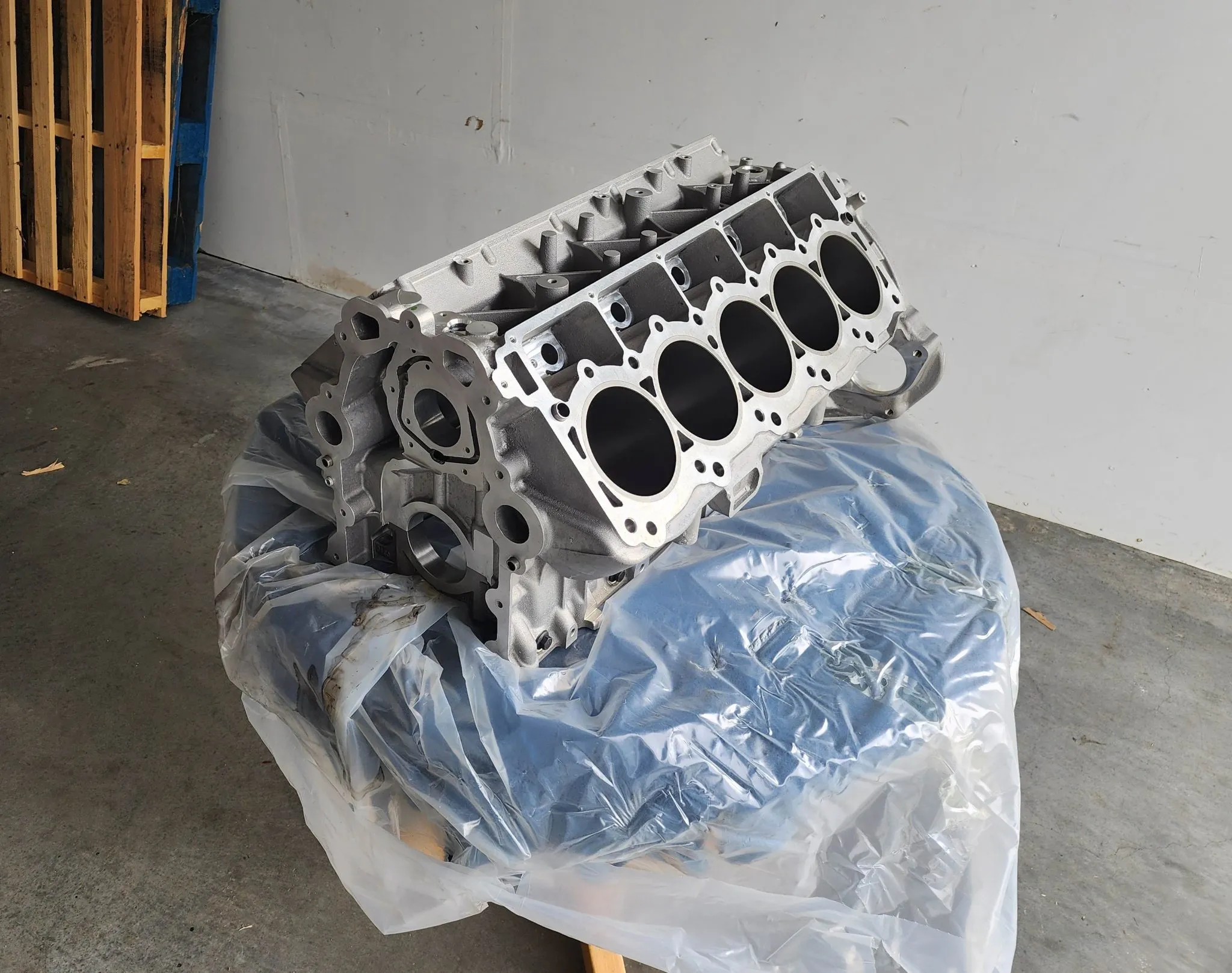

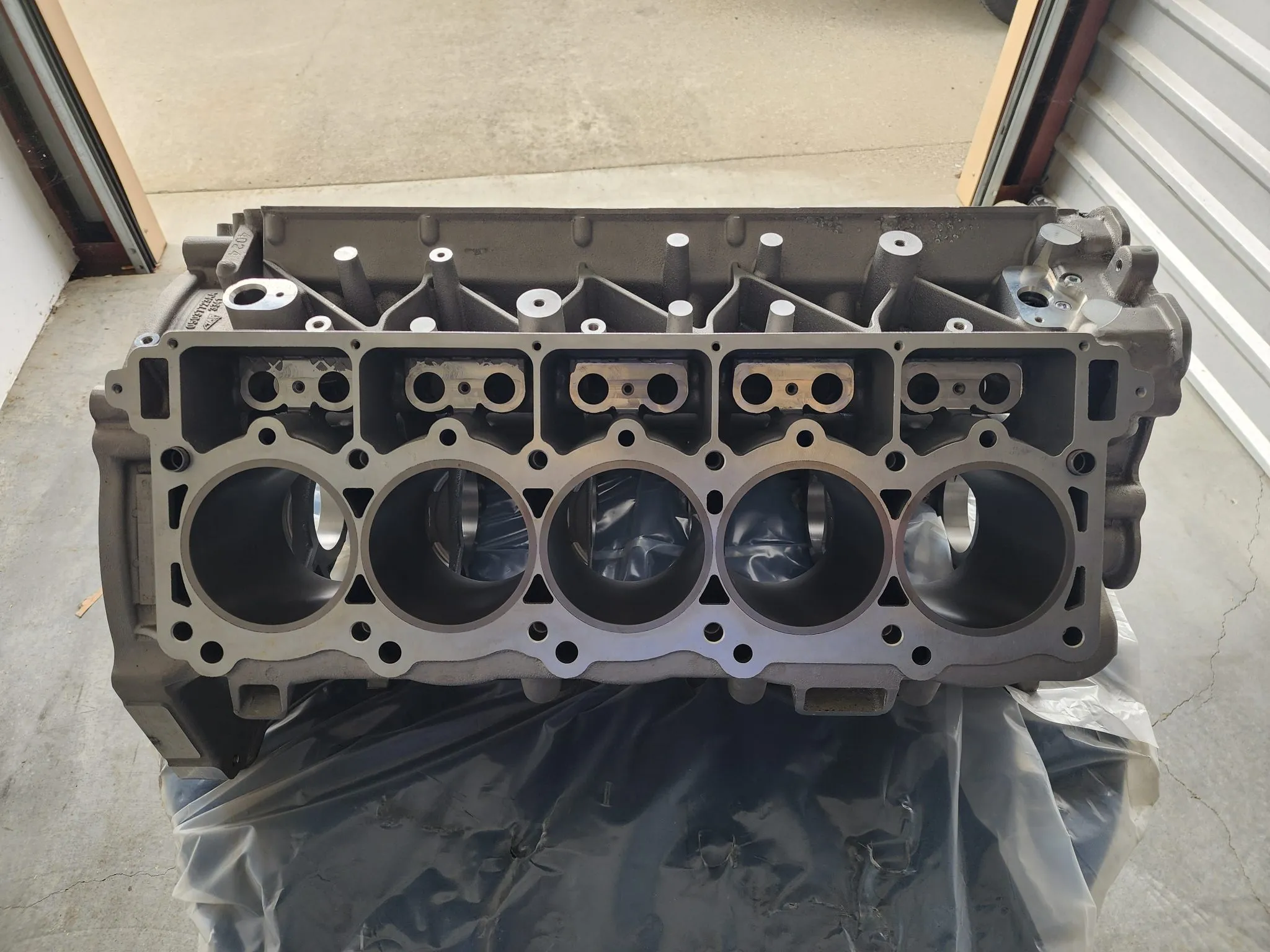

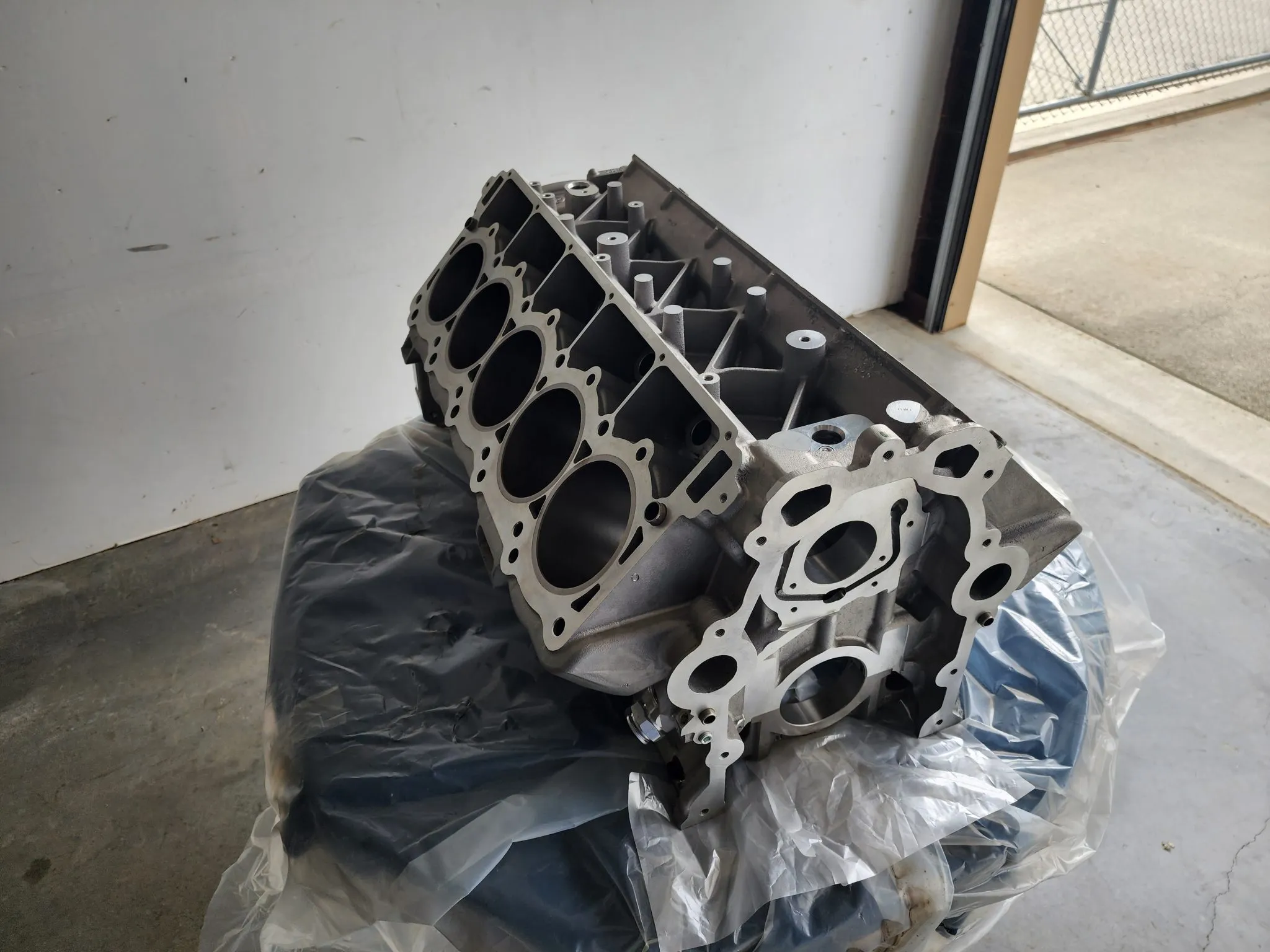

Dodge Viper 8.4L V10 Engine Block
While the original 8.0L was a collaboration with Lamborghini, the 8.4L V10 (introduced in 2008 for the Gen IV and later the Gen V) was a significant re-engineering effort involving McLaren Performance Technologies and Ricardo.
The 8.4L block is the ultimate evolution of the Viper powerplant, designed to handle over 600 hp reliably while remaining naturally aspirated.
Listing Details
- Engine Block for 8.4L V10 Viper
- Aluminum Construction

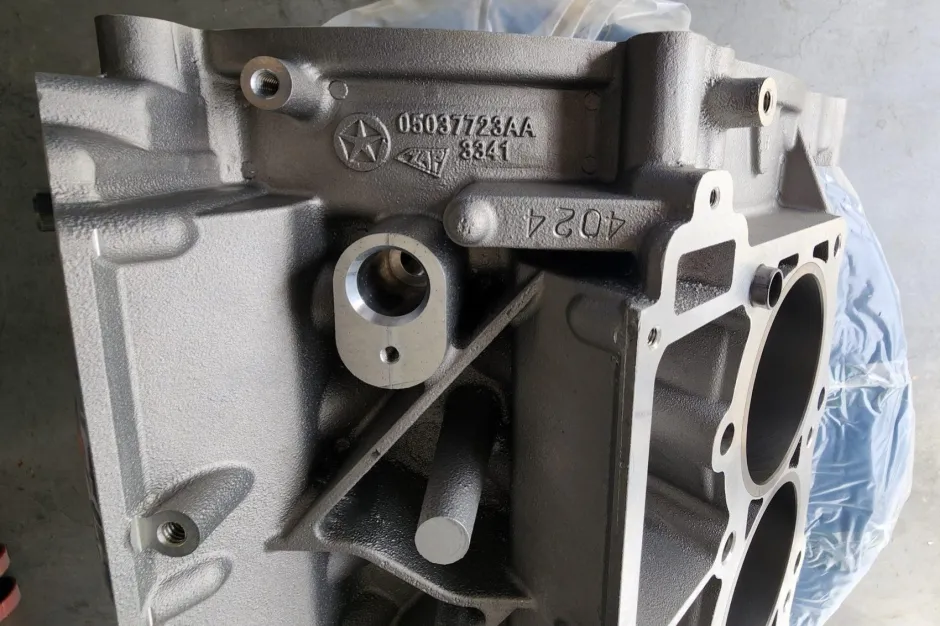

- Part #05037723AA
The 8.4L Block Architecture
The block isn’t just a bored-out version of the old 8.3L; it underwent several structural reinforcements to handle the increased rotational stress and heat.
-
Deep-Skirt Design: The aluminum block features a “deep-skirt” design, where the block casting extends well below the centerline of the crankshaft. This provides immense structural rigidity for the bottom end.
-
Cross-Bolted Main Caps: To keep the forged steel crankshaft stable under high torque, the block uses six-bolt main bearing caps (four vertical bolts and two cross-bolts through the side of the block).
-
Pressed-In Liners: Unlike some high-performance aluminum engines that use spray-in coatings (like Nikasil), the Viper 8.4L uses cast-iron “slip-fit” liners. This allows for a more durable cylinder wall that can be honed with extreme precision (deck-plate honing).
-
Strengthened Bulkheads: The internal webbing and bulkheads were thickened compared to the 8.3L to prevent “block twist” during high-RPM launches.
Technical Specs: 8.4L vs. 8.0L
The 8.4L moved the Viper into the “600+ Club” by increasing both the bore and the efficiency of the oiling and cooling systems.
| Specification | 8.0L V10 (Gen I/II) | 8.4L V10 (Gen IV/V) |
| Displacement | 7,990 cc (488 cu in) | 8,382 cc (512 cu in) |
| Bore | 101.6 mm (4.00 in) | 103.0 mm (4.055 in) |
| Stroke | 98.6 mm (3.88 in) | 100.6 mm (3.96 in) |
| Block Material | Cast Aluminum | Cast Aluminum (Reinforced) |
| Oiling System | Standard Wet Sump | High-Flow Pump / Swinging Pickup |
| Max Horsepower | 400–450 hp | 600–645 hp |
Key Improvements in the 8.4L Era
-
Cam-in-Cam VVT: The 8.4L block houses a unique “Concentric Camshaft” system. It’s essentially a cam within a cam, allowing for Variable Valve Timing on the exhaust lobes—a rarity for a pushrod engine—which helped it meet modern emissions while making massive power.
-
Enhanced Cooling: The water jackets were redesigned for better flow around the cylinders to prevent the “hot spots” that occasionally plagued the early 8.0L engines.
-
Weight Management: Despite being larger and stronger, the engine weighs approximately 712 lbs. While heavy, it is surprisingly trim for a nearly 9-liter hunk of metal, thanks to the extensive use of aluminum and a composite intake manifold
