Five 17×8″ TSW Hockenheim R Wheels for BMW

TSW Hockenheim R is a legendary “old school” wheel from the mid-90s, famous for its split-spoke mesh design and its signature faux center-lock hex nut cap. Finding a set of five is a rare “unicorn” find, typically allowing for a full matching spare.

Listing Details

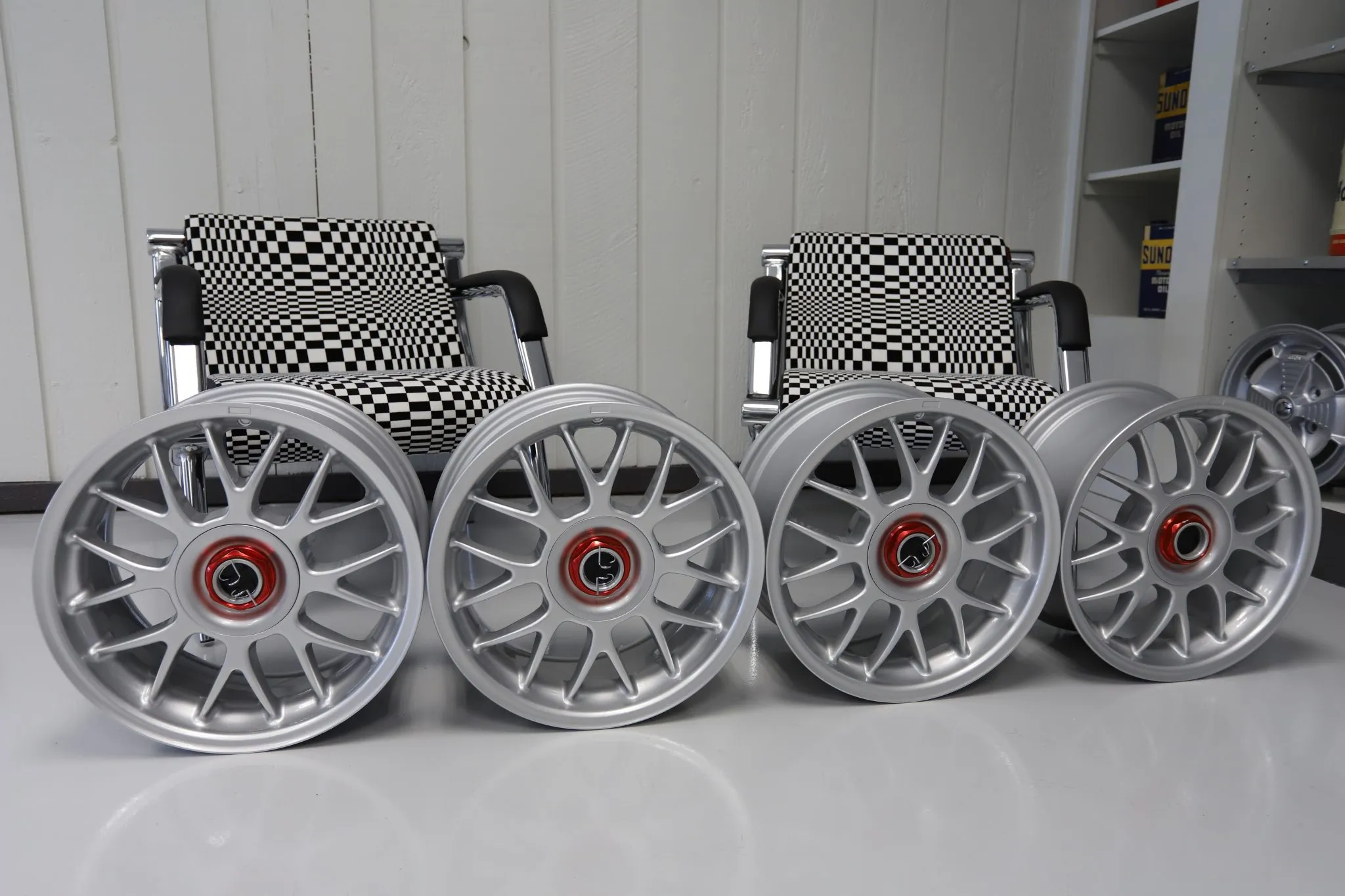

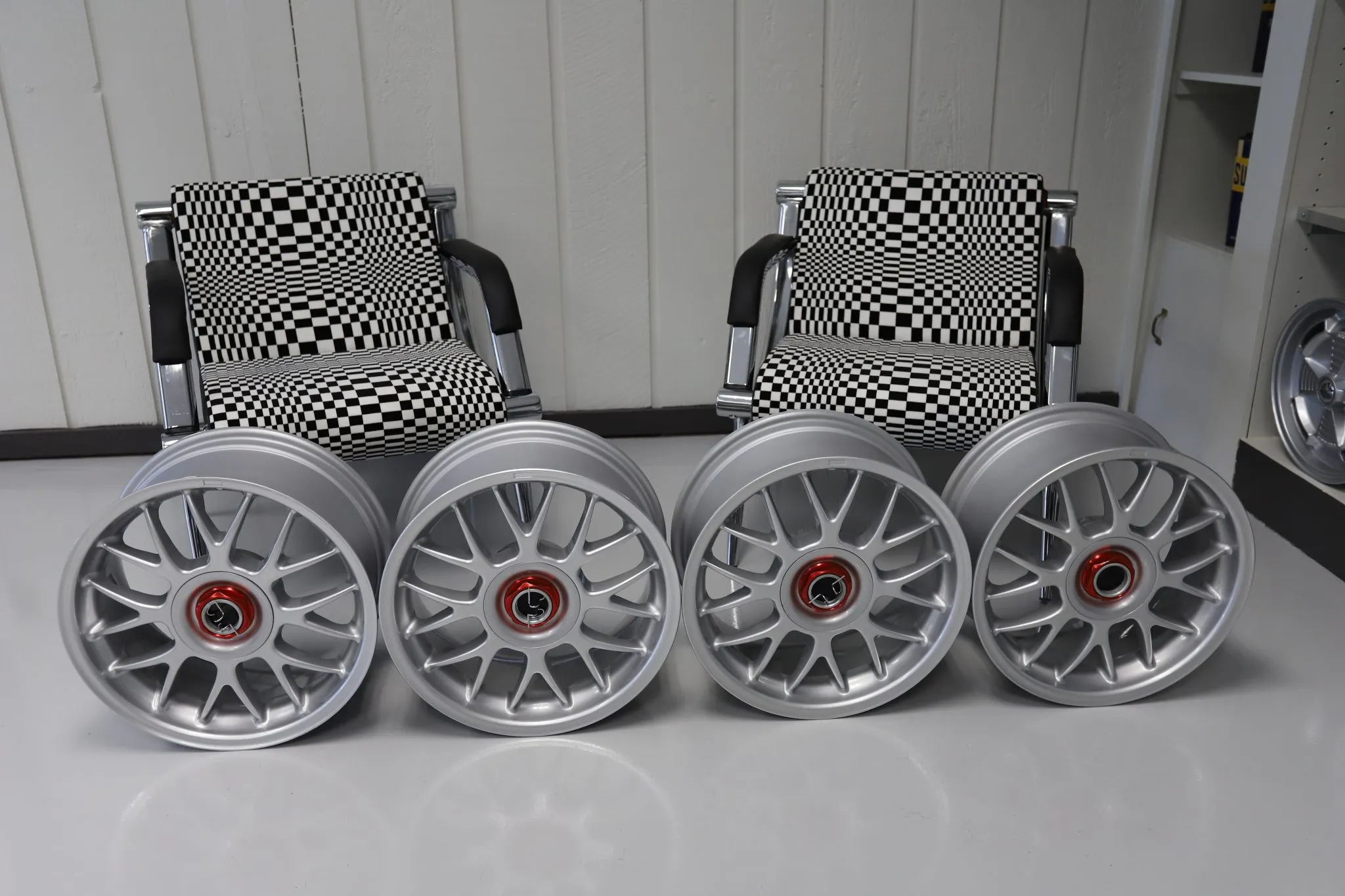

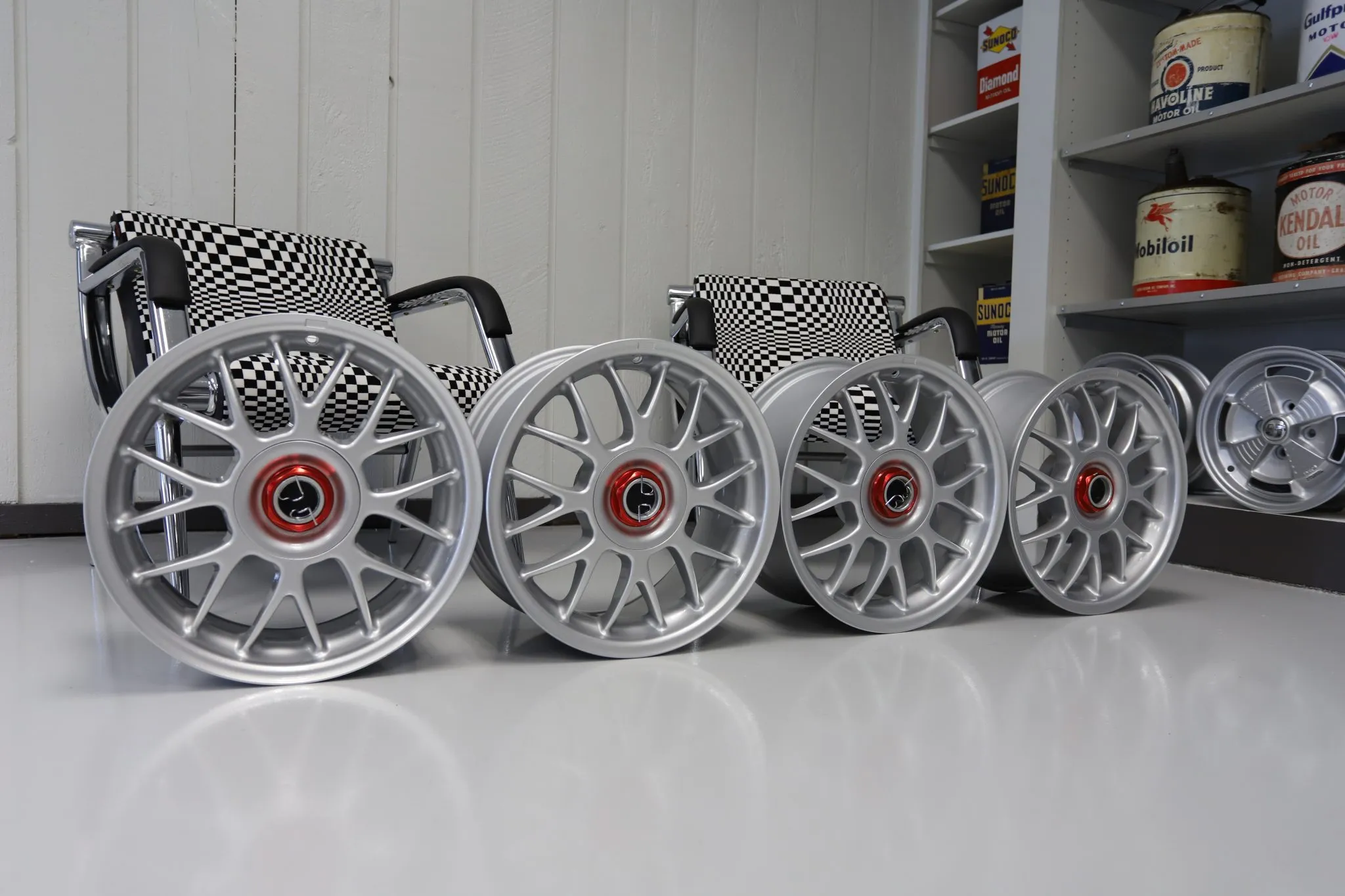

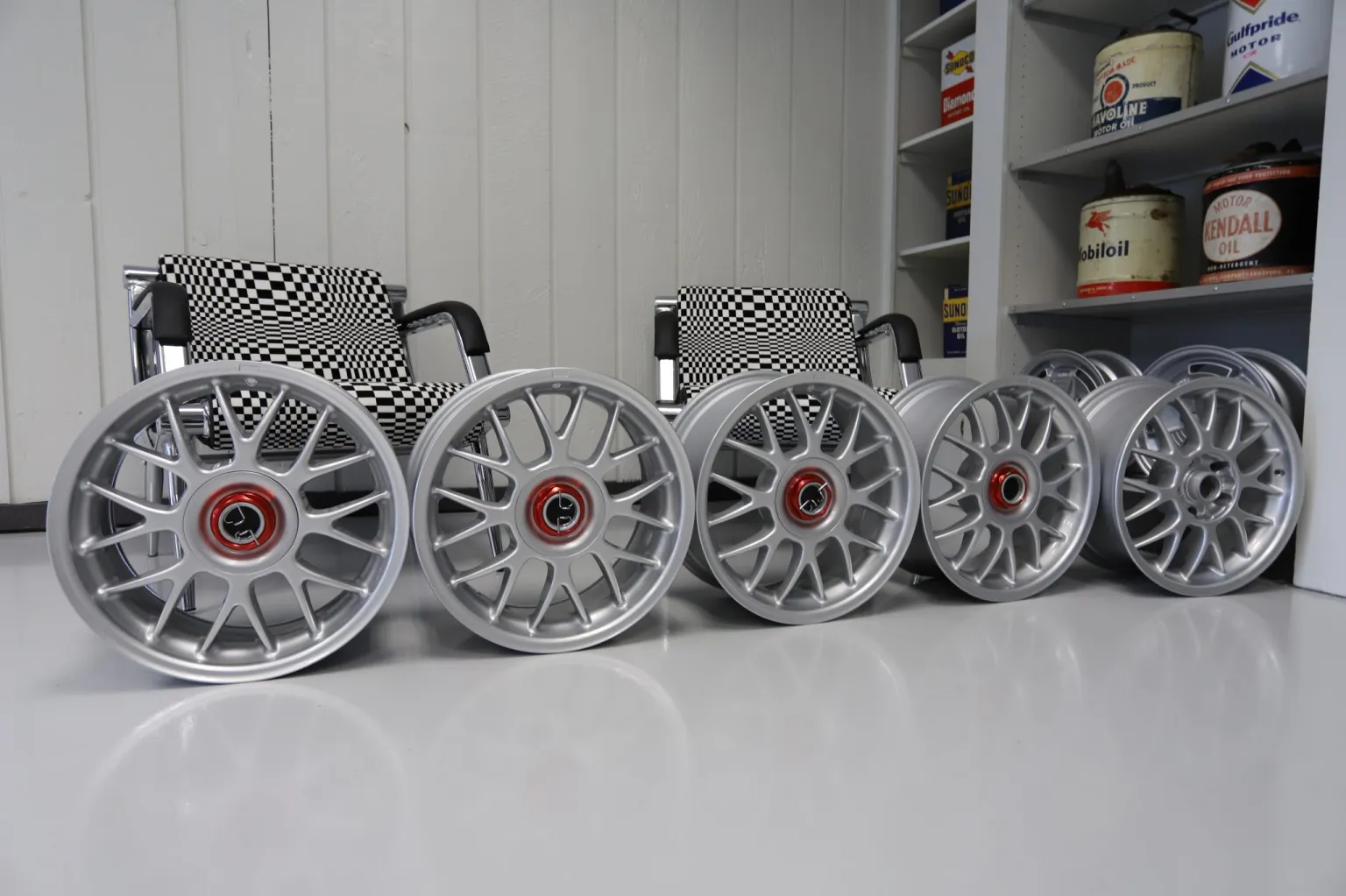

• Five TSW Hockenheim R Wheels
• Produced in 1995

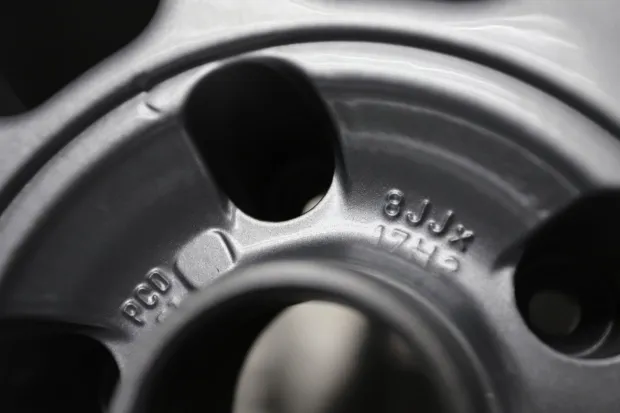

• 17×8″ with +15mm Offset
• 5x120mm PCD
• Recently Refinished Silver
• Four Center Caps Included

Technical Specifications (BMW Fitment)

For most BMW applications, these wheels were produced with the following specifications:

• Size: $17\times8″$

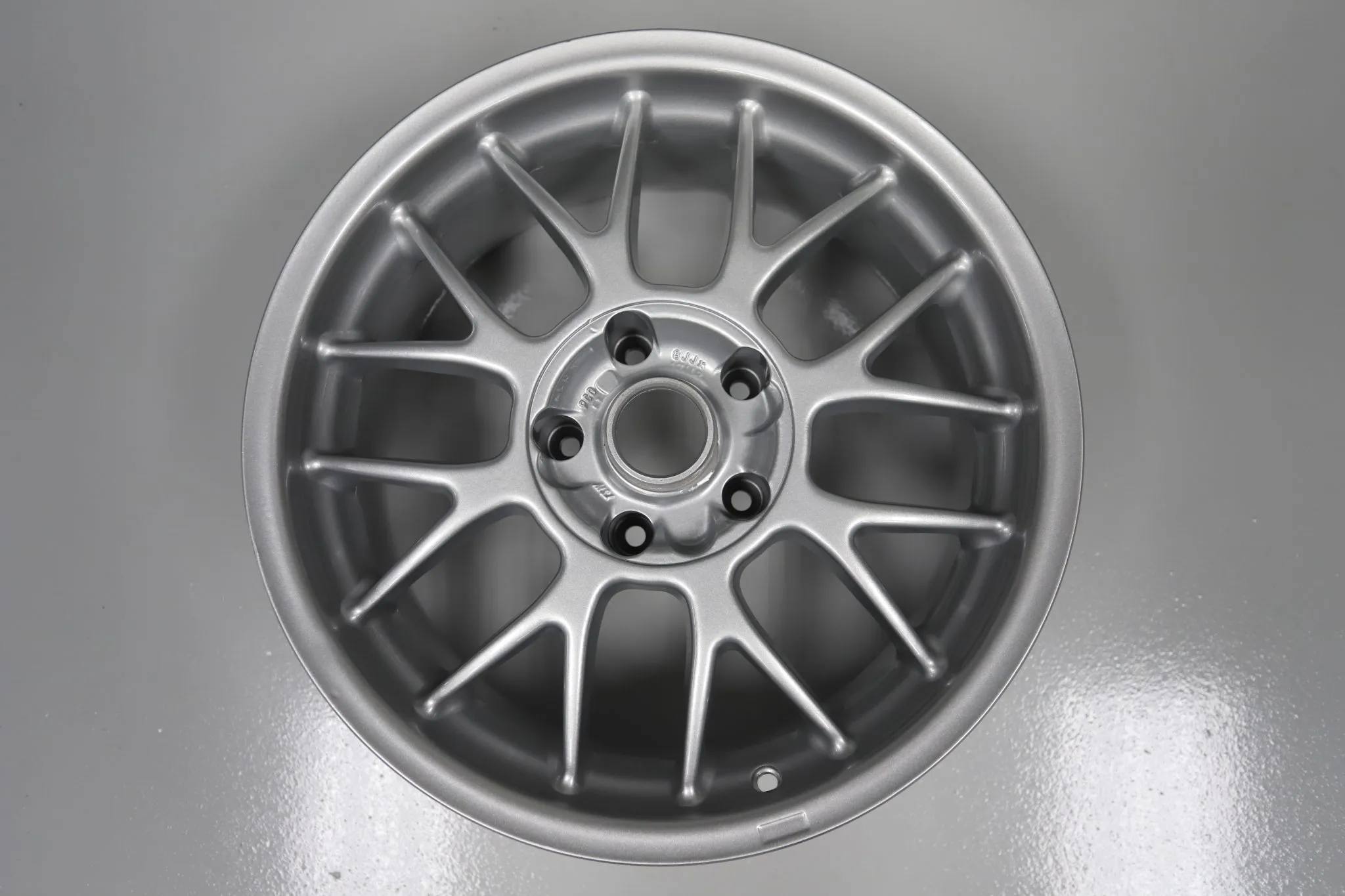

• Bolt Pattern (PCD): $5\times120$ mm

• Typical Offset (ET): $+15$ mm (Aggressive/E30 M3 spec) or $+35$ mm (Standard E36/E46 spec)

• Center Bore: $72.56$ mm (Standard BMW)

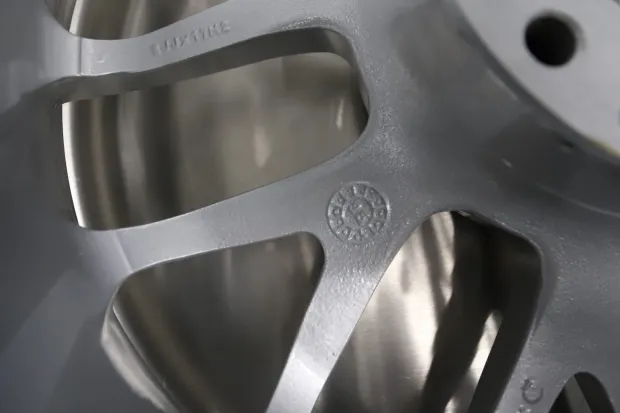

• Construction: Single-piece cast aluminum alloy

Fitment Guide

Because these wheels are from the 90s, their offset dictates which BMW they fit best:

• E30 M3: The $17\times8$ ET15 is considered a period-correct “holy grail” fitment for the E30 M3. It sits flush with the box flares without needing spacers.

• E36 / E46 3-Series: If the wheels have a higher offset (around ET35), they are a direct fit. If they are the ET15 version, they will poke out significantly and may require rolled fenders and stretched tires.

• E34 / E32 / E38: These 5, 7, and 8-series models typically use lower offsets (ET10–20), making the ET15 version of these wheels a great fit.

What to Look For

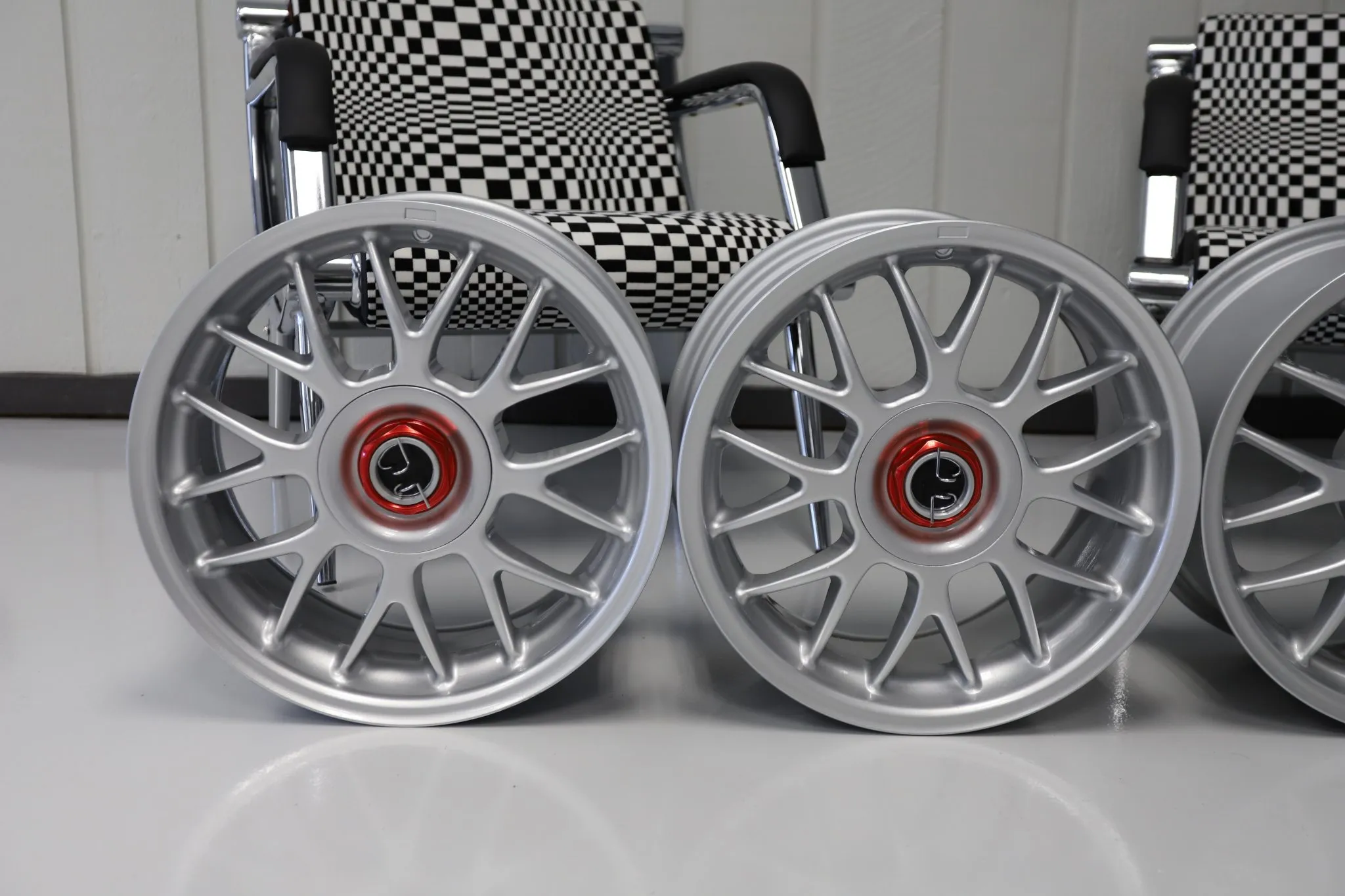

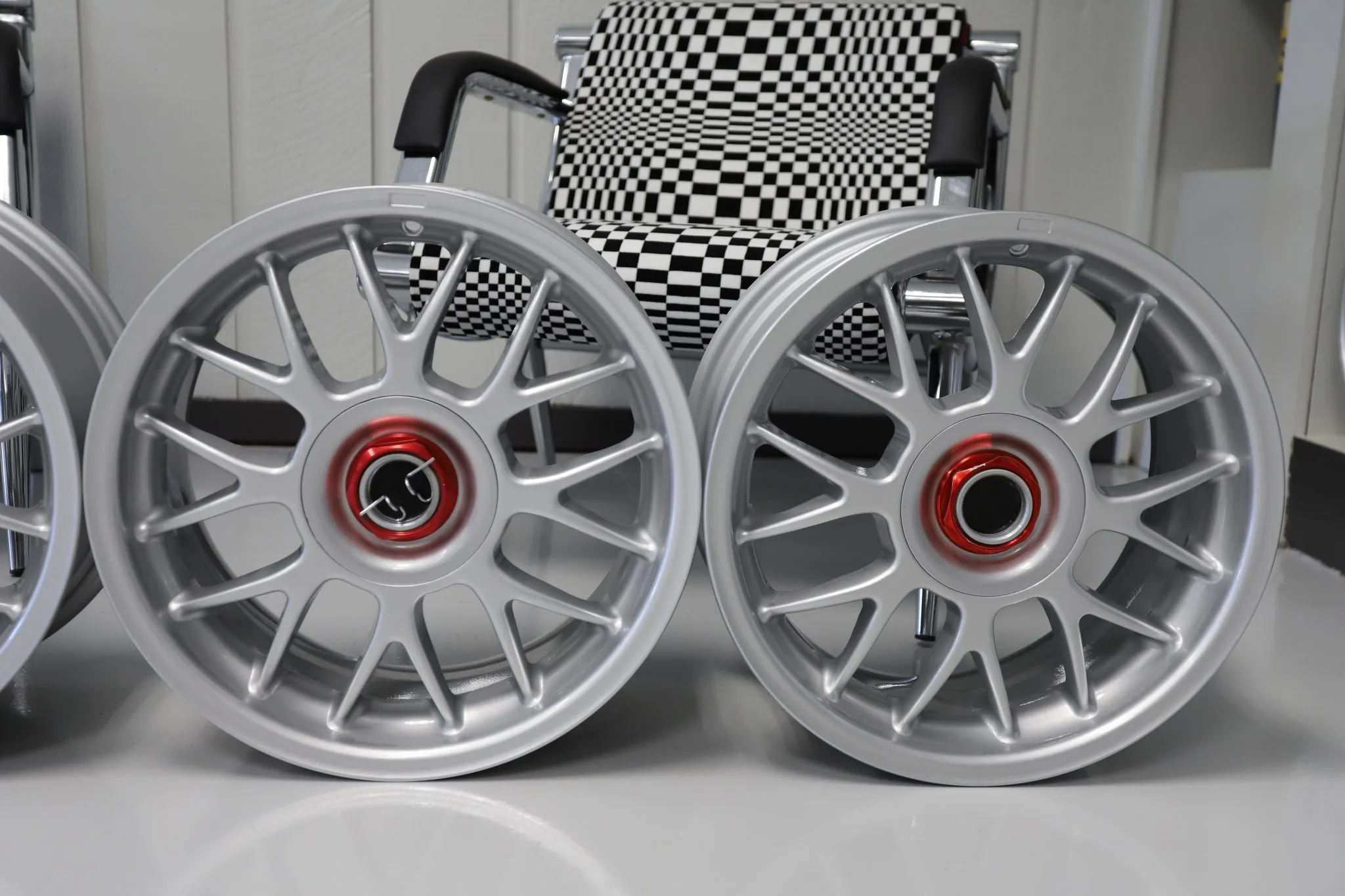

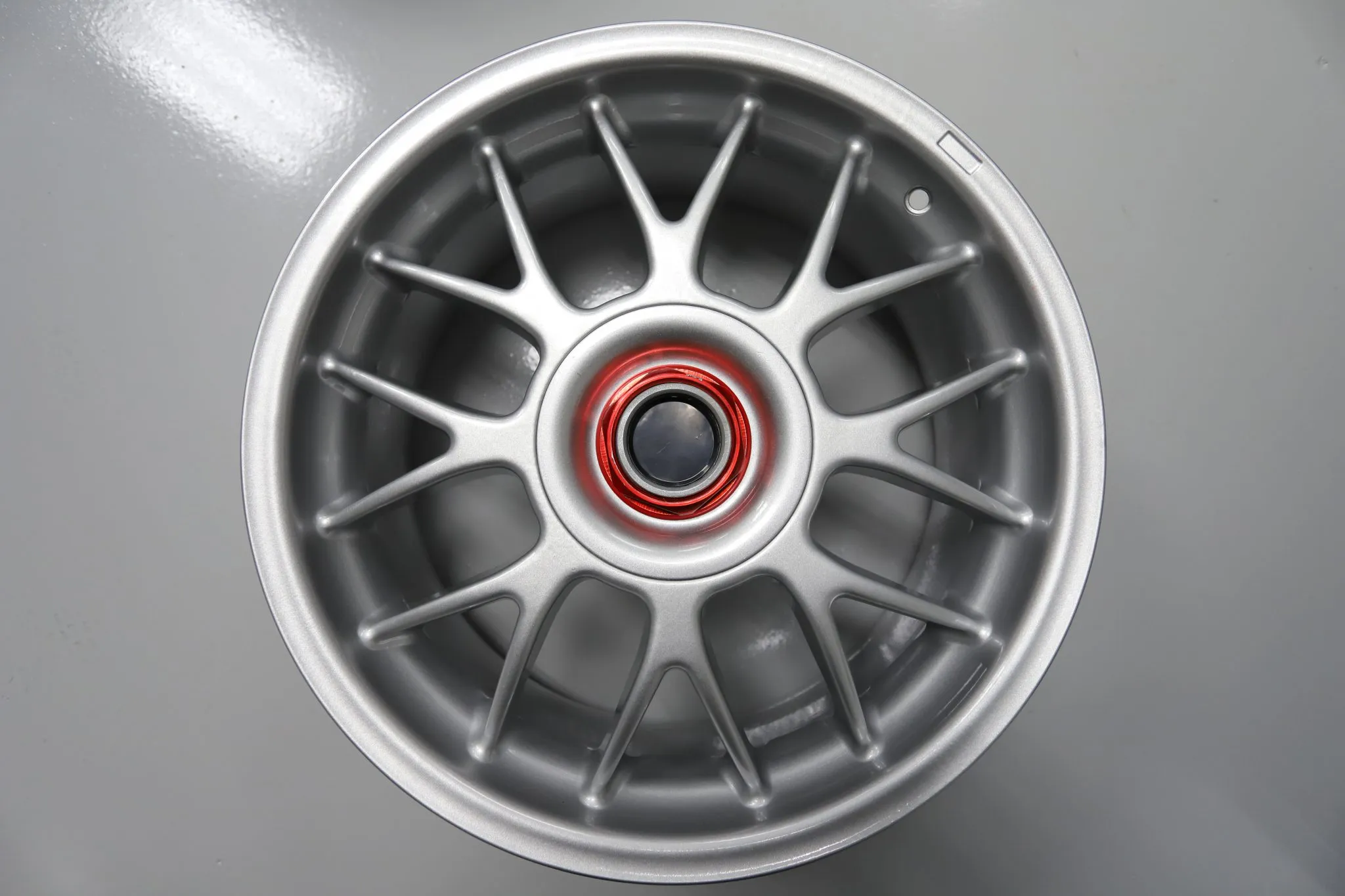

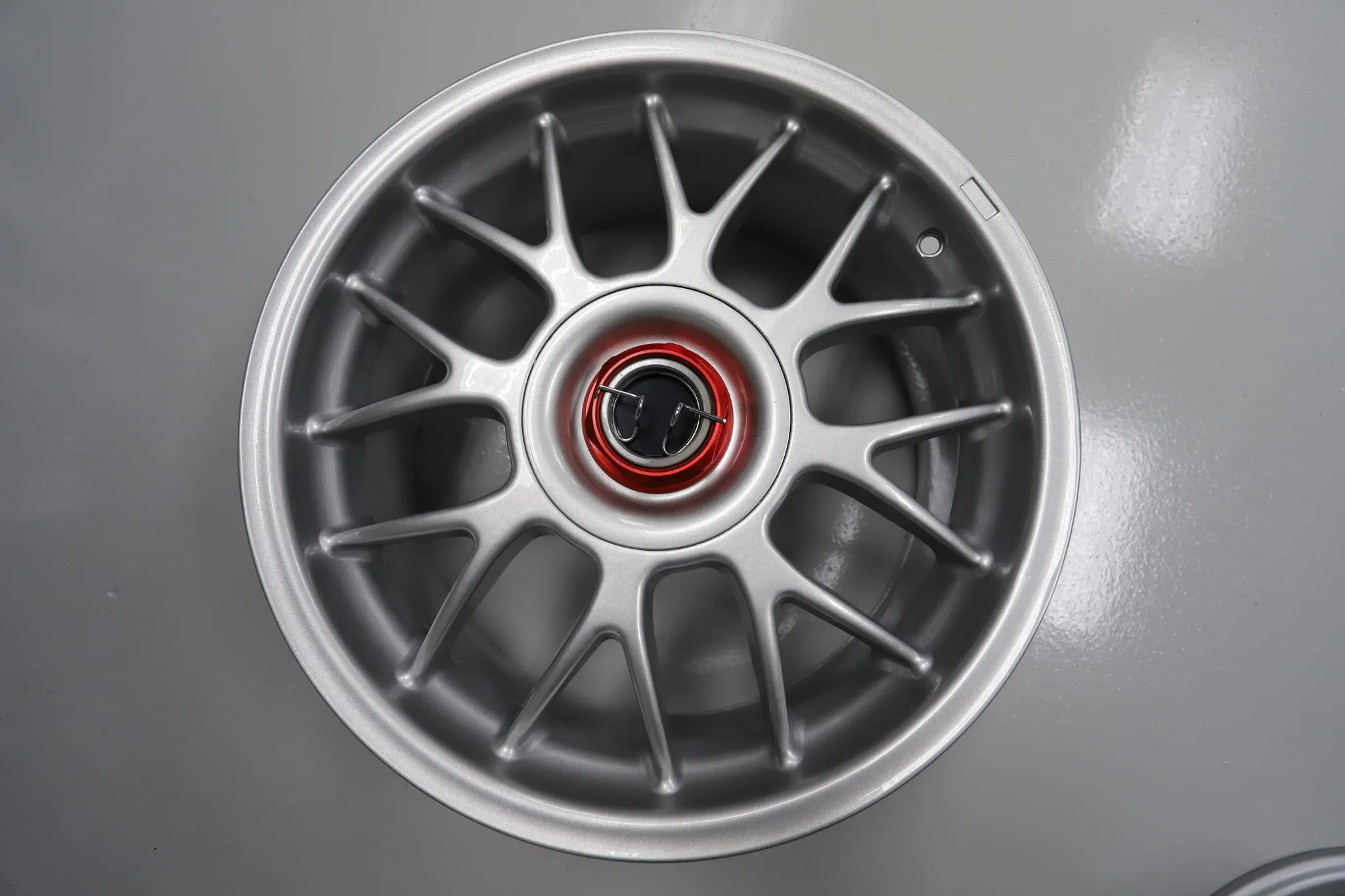

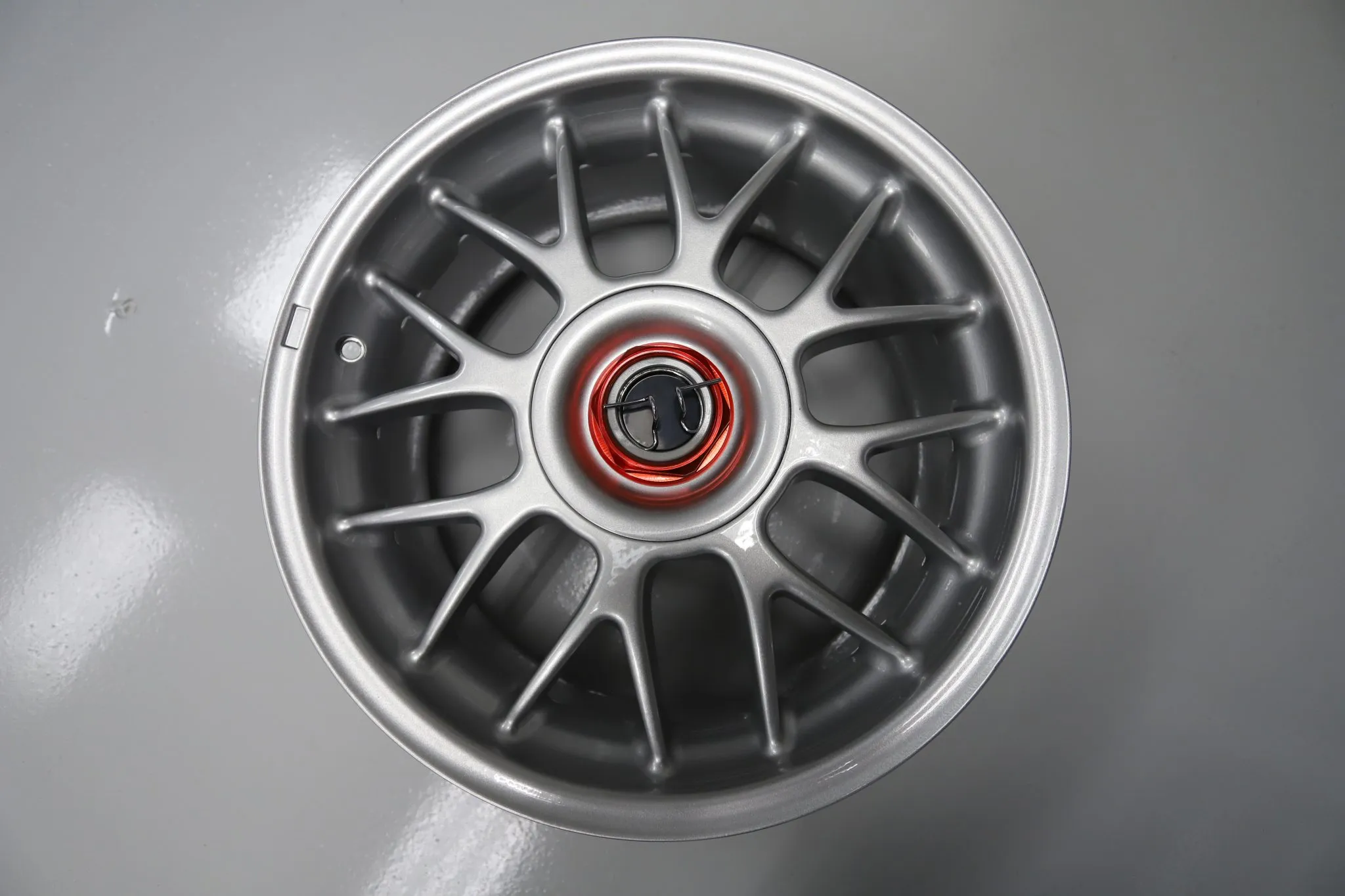

If you are buying or selling a set of five, pay close attention to the Center Caps. The Hockenheim R is defined by its multi-piece cap assembly:

1. The Plate: Covers the lug holes.

2. The Hex Nut: Usually red or silver, which threads on or snaps in.

3. The Locking Pin: A small metal clip that secures the nut.



4. The TSW Logo: The center emblem.

Note: These caps are discontinued and very difficult to replace. A “set of five” wheels with only “four caps” (a common scenario) significantly impacts the value of the fifth wheel.
