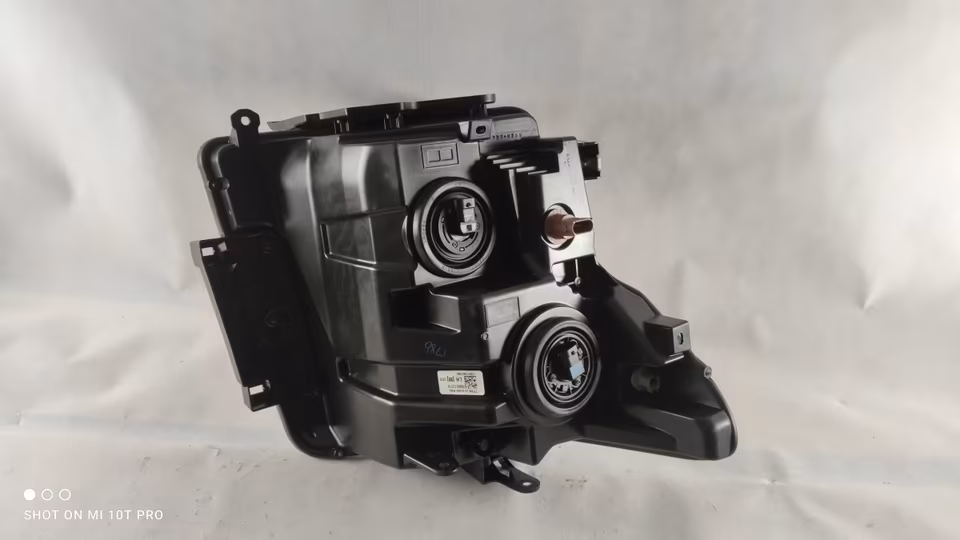

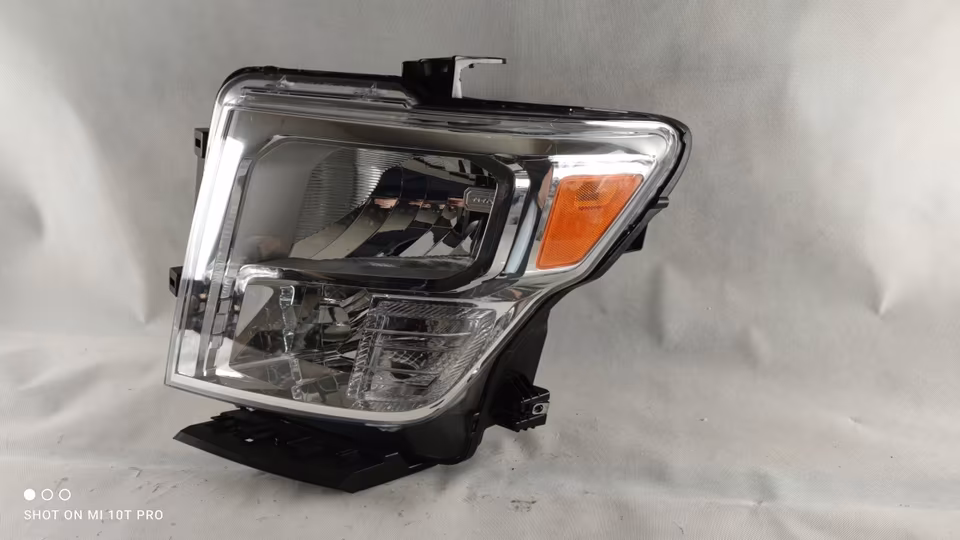

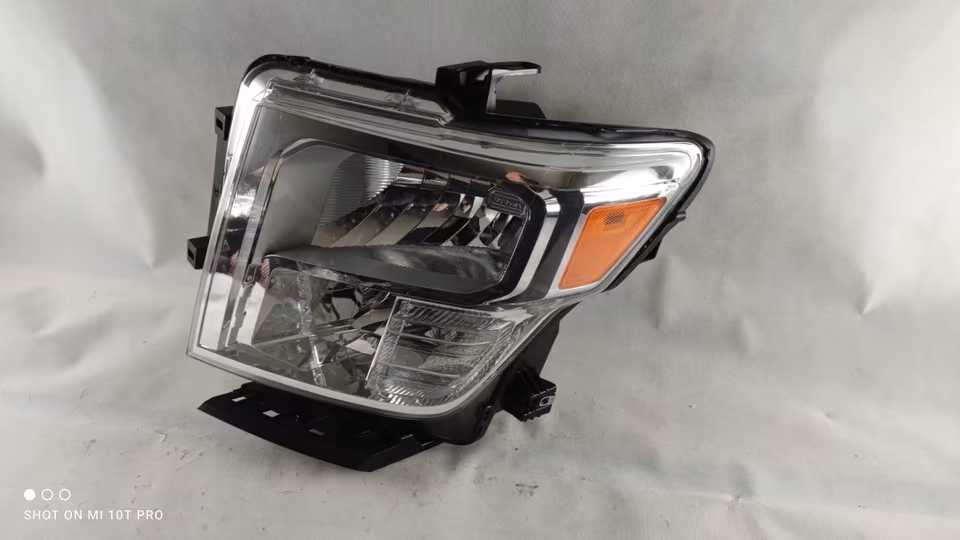

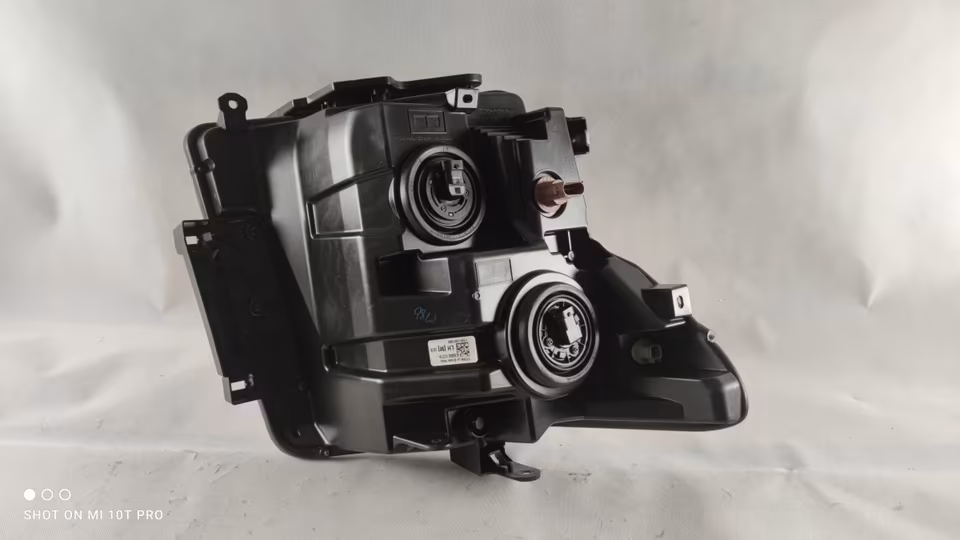

Headlight Nissan Titan 2015-2020 Left 26060EZ21A

part number 26060EZ21A corresponds to the Left (Driver Side) Headlight Assembly for the Nissan Titan and Titan XD models covering the 2016–2019 production years (often categorized under the 2015–2020 generation).

This is a specific “Premium” or “Luxury” trim level component, typically found on the SL, Platinum Reserve, and PRO-4X trims.

Technical Specifications: 26060EZ21A

• Light Source: Full LED Low Beam / LED High Beam.

• Signature Lighting: Includes the “C-Channel” LED Daytime Running Light (DRL).

• Housing Color: Dark Chrome / Black Inner Bezel (standard on PRO-4X and Platinum Reserve).

• Lens Material: Polycarbonate with UV-resistant coating.

• Voltage: 12V.

Vehicle Compatibility

While the body style of the Titan remained similar, this specific LED unit has a unique internal harness. It is a direct fit for:

• Nissan Titan (Half-Ton): 2017, 2018, 2019.

• Nissan Titan XD (Heavy Duty): 2016, 2017, 2018, 2019.

Note on 2020 Models: In 2020, Nissan performed a major “refresh” on the Titan’s front fascia. The 2020+ headlights feature a different LED signature and internal wiring. 26060EZ21A will NOT fit a 2020 model without significant modification to the grille and wiring harness.

Critical Inspection Points for Inventory

If you are inspecting this unit for resale or installation, check the following “high-failure” areas:

1. Mounting Tabs: There are three main plastic mounting tabs (Top, Inner, and Bottom). These are brittle and frequently snap during minor front-end impacts. Check for professional plastic welds or “tab repair kits.”

2. Internal LED Driver: Unlike halogen bulbs, the LED driver is integrated. Test the “C-shaped” DRL strip specifically, as a failure here requires the entire assembly to be replaced.

3. Rear Dust Caps: Ensure the rear rubber seals/caps are present. If missing, moisture will enter the housing and permanently cloud the internal chrome or short out the LED boards.

4. Lens Condition: Look for “crazing” (tiny internal spider-web cracks) which occurs from heat stress, distinct from surface scratches.

Cross-Reference Part Numbers

• Direct Interchange: 26060-EZ21A, 26060EZ20A (Standard Chrome version).

• Hollander Interchange: 114-60721L.
