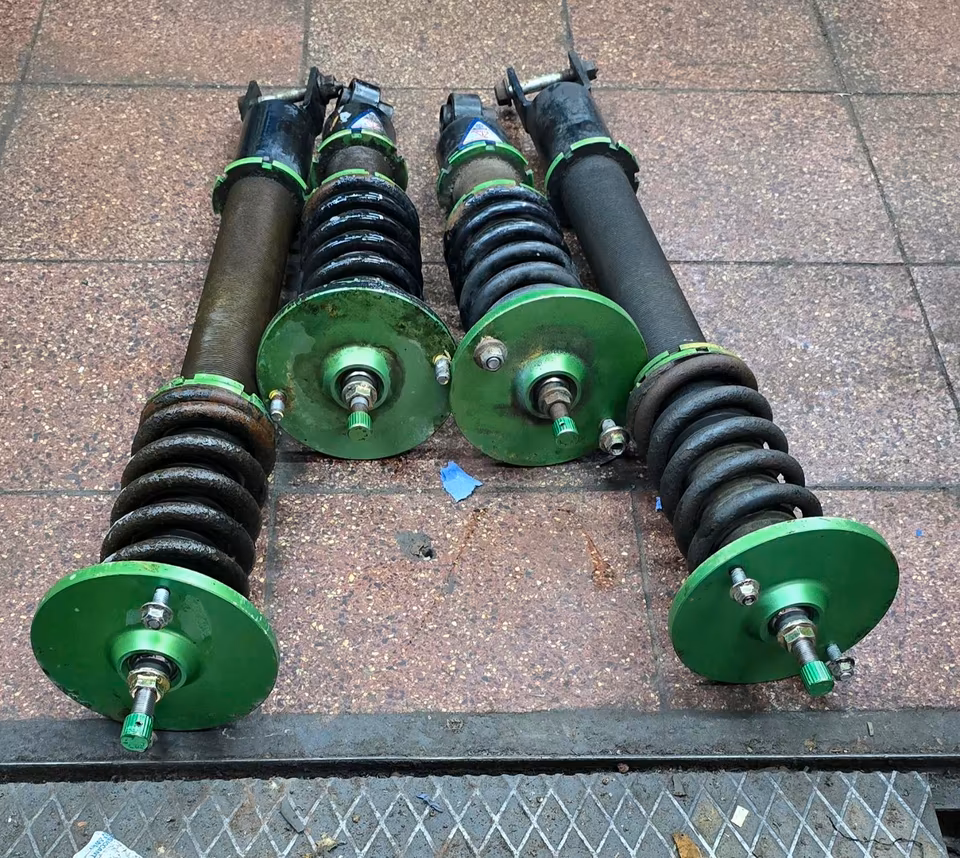

HSD Monotube Suspension Nissan Skyline R34 GTR

inventory at Buy Mustang parts Ltd, the HSD MonoPro Coilovers are the flagship monotube suspension solution for the Nissan Skyline R34 GT-R. These are specifically designed for the performance-oriented owner who needs a setup capable of handling both aggressive street driving and heavy track use without the overheating issues common in twin-tube designs.

1. Technical Identification: MonoPro vs. DualTech

HSD offers two main tiers. For the R34 GT-R, the MonoPro is almost always the preferred choice over the entry-level DualTech.

• Damper Design: Monotube. This allows for a larger piston and higher oil capacity, which provides superior heat dissipation and more consistent damping during prolonged hard driving.

• Adjustability: 16-stage damping adjustment (rebound and compression combined).

• Spring Rates: The default setup for the BNR34 is 9kg/mm (Front) and 7kg/mm (Rear).

• Top Mounts: Features high-grade aluminum top mounts with spherical pillow-ball bearings for precise steering response and zero deflection.

2. 2026 Market Value & Sourcing

As of 2026, HSD remains a high-value-for-money brand, sitting just below high-end names like Ohlins or KW but offering significantly better performance than generic budget coilovers.

3. Strategic Advice for Buy Mustang parts Ltd

• The “Inverted” Advantage: For the R34’s front strut, the MonoPro uses an inverted damper design. This moves the heavy components to the top, reducing unsprung weight and increasing the strength of the strut against lateral forces—a major talking point for track enthusiasts.

• Full Serviceability: One of HSD’s biggest selling points is that every part is available as a spare. If a customer blows a single damper after the 12-month warranty, you can sell them a replacement individual damper rather than a whole new kit.

• The “Stance” Market: HSDs are known for having a huge range of height adjustment. You can market these to the “stance” crowd as a kit that can go “super low” while still maintaining full damper travel, thanks to the independent base-height adjustment.

4. Inspection & Quality Control

• Zinc Plating: HSD uses a zinc-plated shock body to prevent corrosion. Inspect for any “white rust” or pitting on the threads, which can make height adjustment difficult.

• Locking Collars: Ensure the locking collars are not seized. For your premium customers, we recommend applying a light coat of anti-seize or lanolin spray to the threads before shipping to prevent future seizing in salt-heavy climates.

• Damper Seals: Check for any oily residue around the top of the damper shaft. A “sweating” seal is an early sign of failure.

5. Logistics & Shipping

• Weight: This is a heavy kit, approximately 27kg (60 lbs).

• Protocol: 1. Box Reinforcement: The original HSD boxes are often thin. We recommend double-boxing or adding a layer of heavy-duty tape around the corners to prevent the coilovers from punching through during transit.

  2. C-Spanners: Ensure the two adjustment C-spanners and the fitting instructions are taped to the inside of the box so they don’t rattle around and scratch the powder-coated springs.

  3. Individual Wrapping: Wrap each coilover in thick bubble wr
