Jaguar XJ40 4.0L speedometer/instrument cluster

The Jaguar XJ40 (1986–1994) 4.0L instrument cluster is a specialized piece of hardware that saw a major technological shift halfway through the car’s production. Because of this, parts for early and late XJ40s are not interchangeable.

1. Digital vs. Analog Generations

The XJ40 used two primary styles of instrument packs depending on the model year:

• 1986–1989 (Early Digital/Hybrid): These clusters are famous for their “Vehicle Condition Monitor” (VCM)—a 32×32 vacuum fluorescent dot-matrix display. While the speedometer and tachometer were analog, the ancillary gauges (oil, temp, fuel, volts) used segmented digital readouts.

• 1990–1994 (Late Analog): Coinciding with the 4.0L engine’s introduction, Jaguar moved to a more reliable, traditional full-analog layout. These use high-precision stepper motors for all gauges and are generally considered much more “driver-friendly.”

2. Common Failure Points

Regardless of the version, age-related electrical issues are common:

• “Cold” Solder Joints: The circuit boards often develop micro-cracks in the solder, leading to flickering displays, intermittent power, or “ghost” warning lights.

• VCM Pixel Failure: On early cars, the dot-matrix screen can lose individual pixels or fail entirely due to heat and aging capacitors.

• Speedometer Lag: Often caused by a failing speed sensor on the transmission or differential rather than the gauge itself.

• Dim Backlighting: Usually caused by blown miniature bulbs (JLM1928 or JLM1929), which are housed in specialized twist-lock holders.

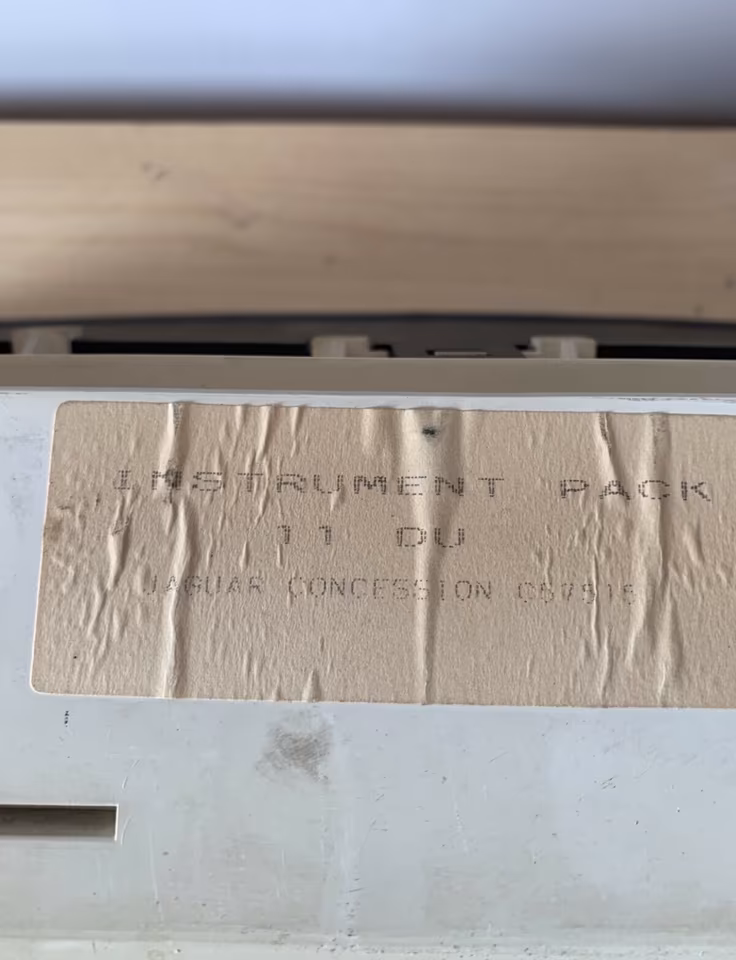

3. Part Numbers & Identification

When sourcing a replacement, look for these specific Jaguar/Lucas identifiers:

• 1990–1994 (4.0L Models): Common part numbers include DBC5392, DPP1024, and DPP1025/01.

• Special Editions: Models like the JaguarSport (XJR) or Vanden Plas may feature different wood trim (e.g., Rosewood vs. Walnut) or different dial faces.

4. Market Value & Repair (2026 Estimates)

Because the “electronic pack” contains the vehicle’s odometer data, repair is usually preferred over replacement.

Technical Diagnostic Tip

If your entire cluster is “dark,” check Fuse #6 (5 amp) in the center console fuse panel first. It provides the 12V ignition-switched power to Pin 2 (orange/white wire) on the 24-pin black connector at the back of the cluster.
