Jaguar XJ8 XK8 3.2i 4.0i automatic transmission ZF 5HP24

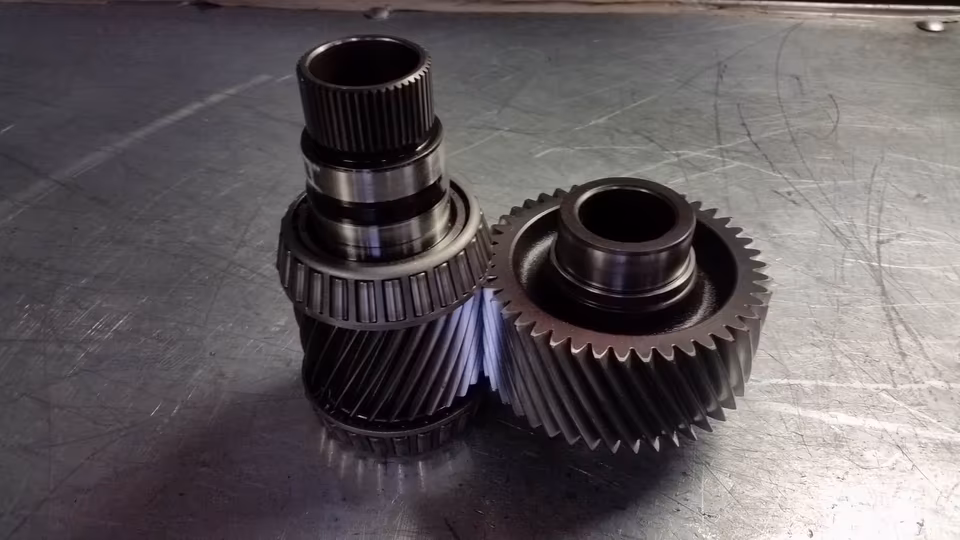

The ZF 5HP24 is a 5-speed automatic transmission found in the Jaguar XJ8 (X308) and Jaguar XK8 (X100) from approximately 1997 to 2002. While highly advanced for its time—featuring adaptive learning and smooth “overlap” shifts—it is well-known in the Jaguar community for a few specific, high-stakes mechanical failures.

1. The Notorious “A-Drum” Failure

The most common major issue with the 5HP24 is the failure of the Forward Clutch Drum (A-Drum).

• The Cause: A design flaw in the original drum’s snap-ring groove causes the metal to fatigue and eventually shear off under hydraulic pressure.

• Symptoms: Hesitation when taking off from a stop, a “thump” when engaging Drive, or a total loss of forward gears (while Reverse often still works).

• The Fix: Replacing the drum with a reinforced/upgraded version. Specialists also recommend installing an updated pressure regulator valve in the valve body, as pressure spikes are often what trigger the drum to burst.

2. Common Symptoms & Fault Codes

If your Jaguar is experiencing transmission issues, look for these specific red flags:

• P1722 Code: Often indicates a “Stall Speed” or input speed error, frequently linked to the broken A-drum.

• Loss of Reverse: Usually caused by a cracked F-clutch piston or a failure in the valve body internal seals.

• The “Gearbox Fault” Light: This triggers “Limp Home Mode,” which locks the transmission in 4th or 5th gear to prevent further mechanical damage.

• Transmission “Hunts”: If the car pulses or shudders at highway speeds (45–60 mph), the torque converter lining may be worn, causing the lock-up clutch to slip.

3. Maintenance: The “Lifetime Fluid” Myth

Jaguar originally marketed this gearbox as “Sealed for Life,” but ZF (the manufacturer) suggests otherwise. To prevent the failures mentioned above, proactive maintenance is essential.

4. 2026 Estimated Repair & Replacement Costs

Because these cars are now classic territory, parts availability remains good through specialists, though labor for a full rebuild is significant.

• Remanufactured Transmission: $5,000 – $6,500 (plus a core charge of ~$800).

• Master Rebuild Kit (DIY): $700 – $950 (includes friction plates, seals, and gaskets).

• Valve Body Pressure Regulator Kit: $60 – $100 (a highly recommended “preventative” upgrade).

• A-Drum Replacement (Part only): $250 – $400 for an upgraded heavy-duty unit.

Crucial Installation Note: Checking the fluid level on a 5HP24 is a precise task. There is no dipstick; the level must be checked via a fill plug on the side of the transmission while the fluid is between 30°C and 50°C and the engine is running.
