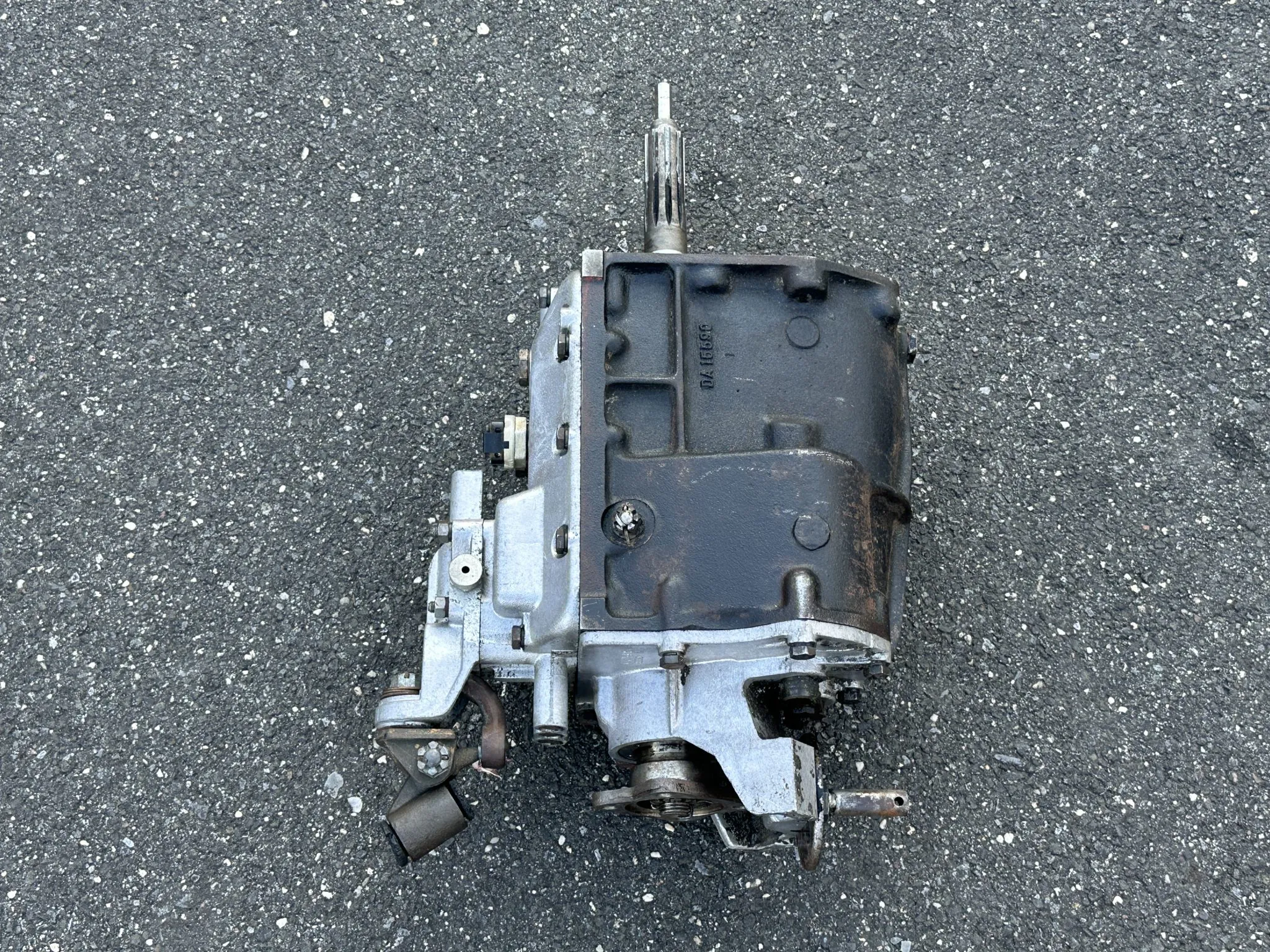

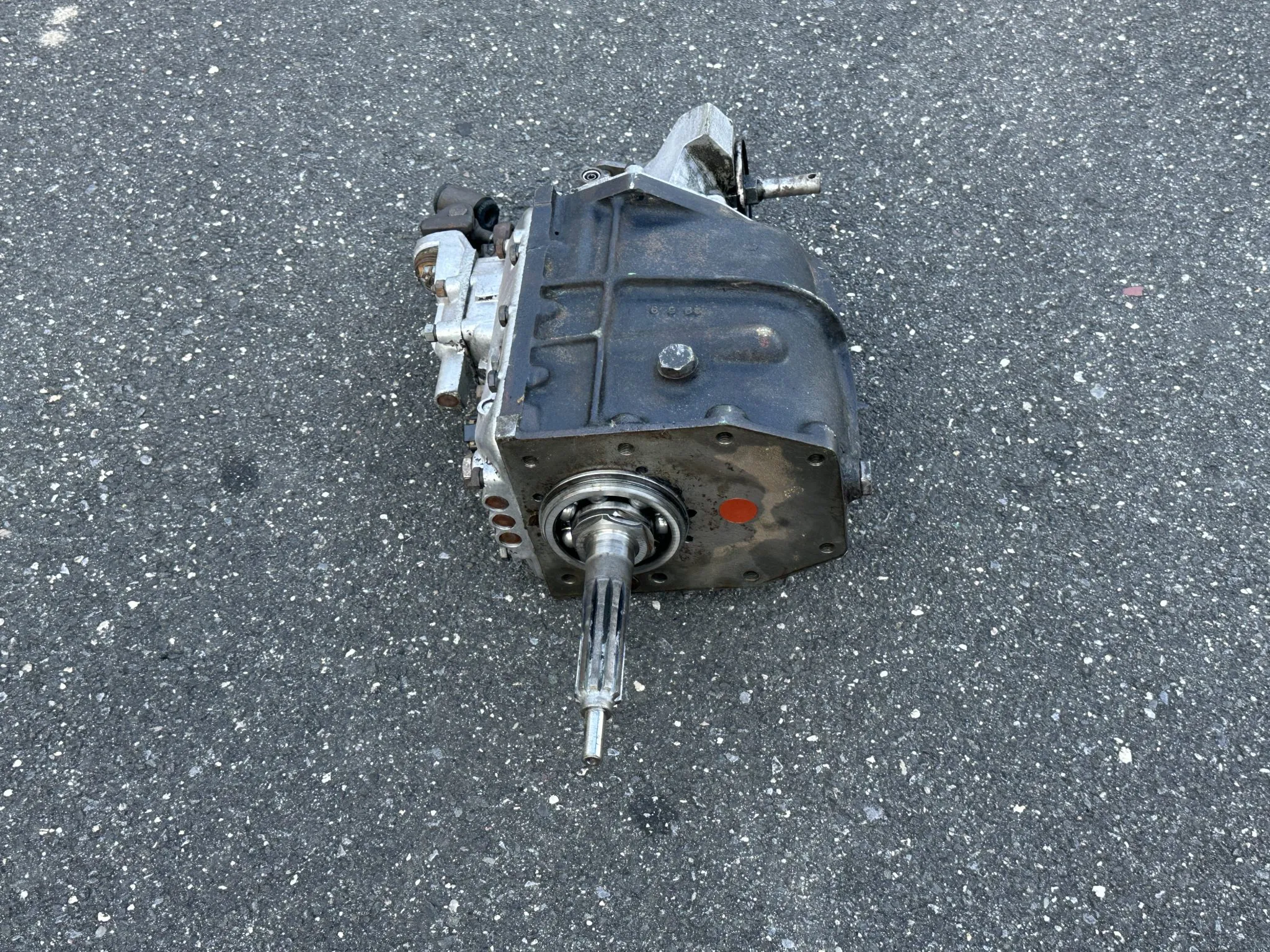

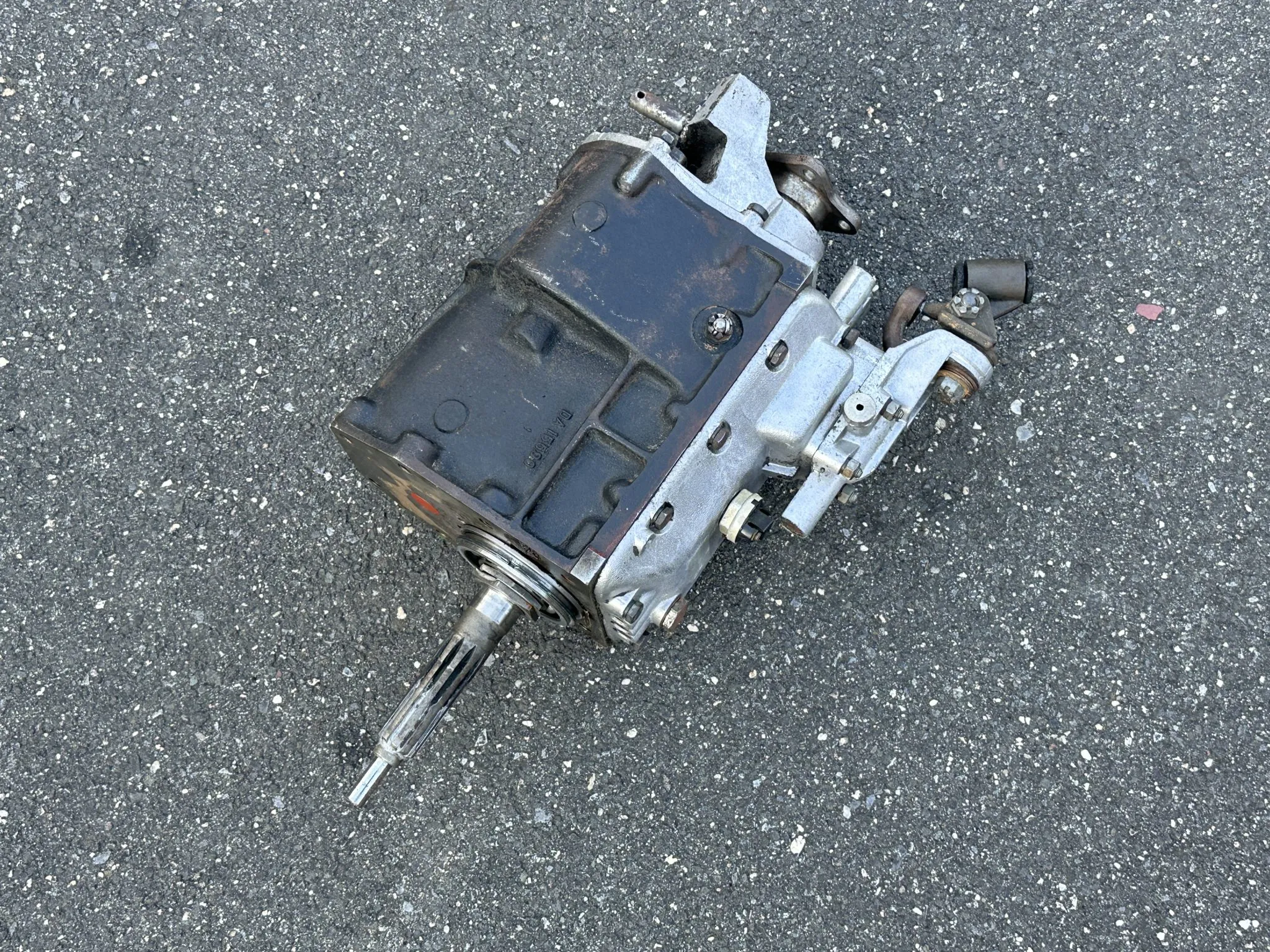

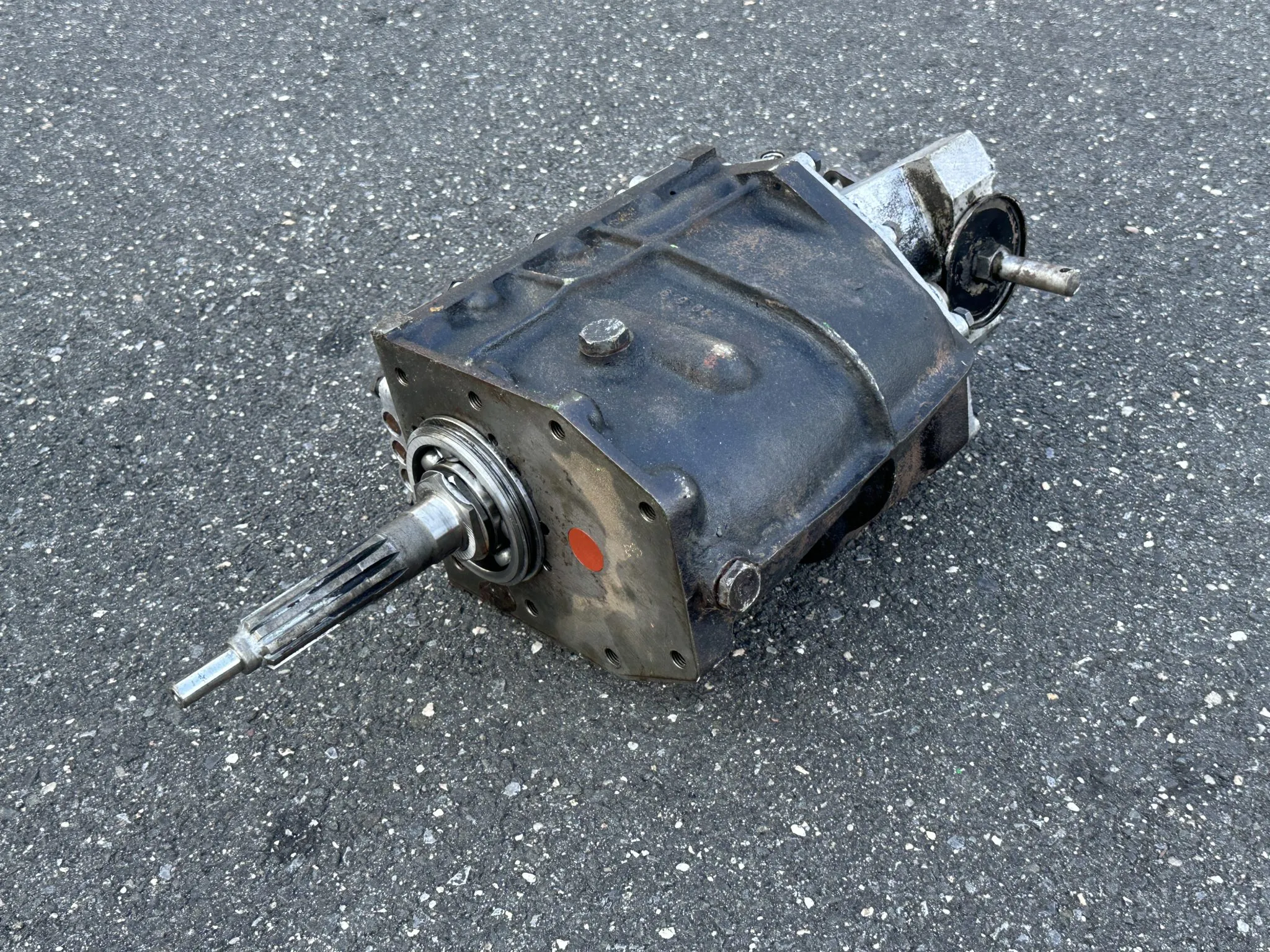

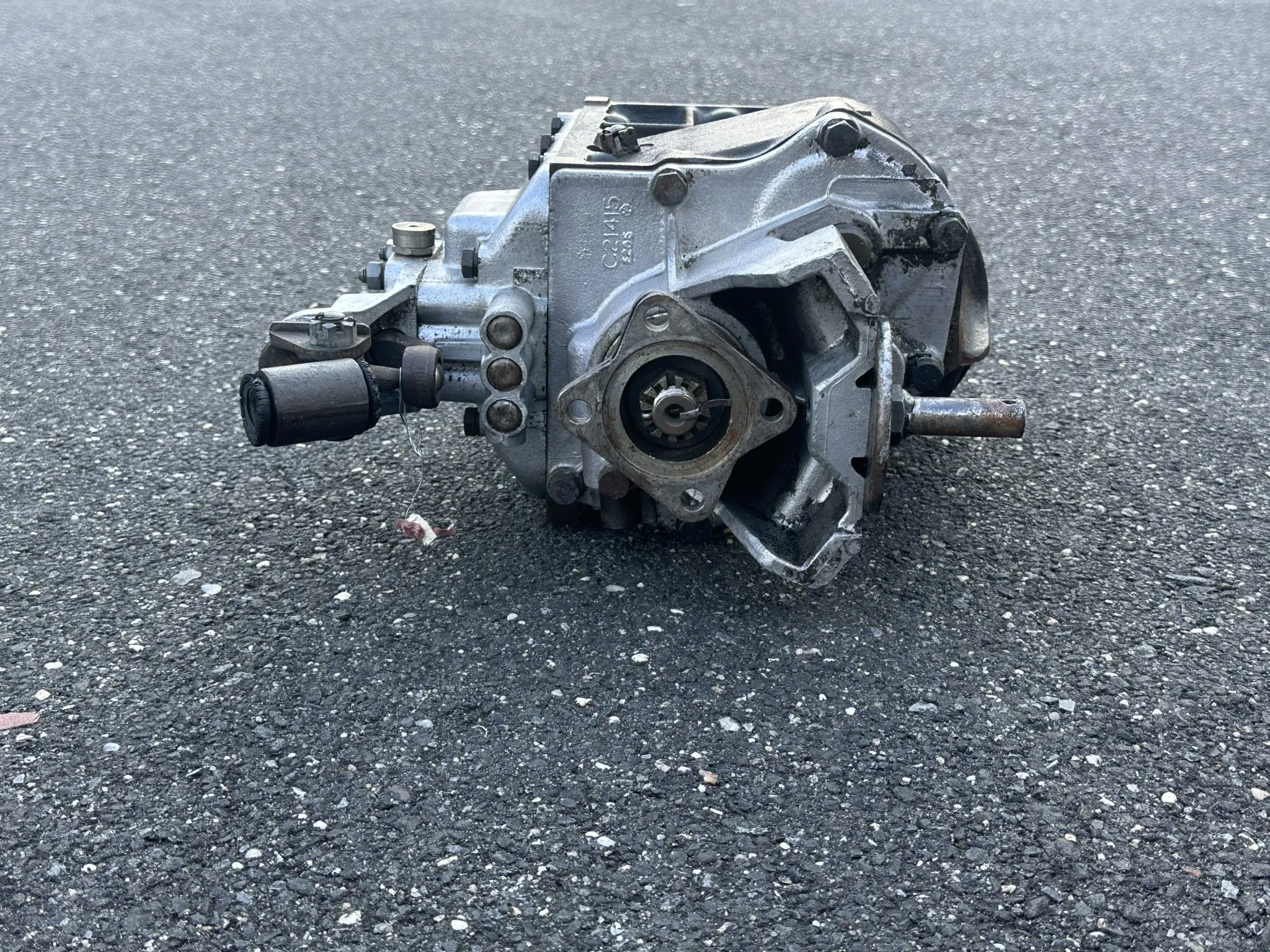

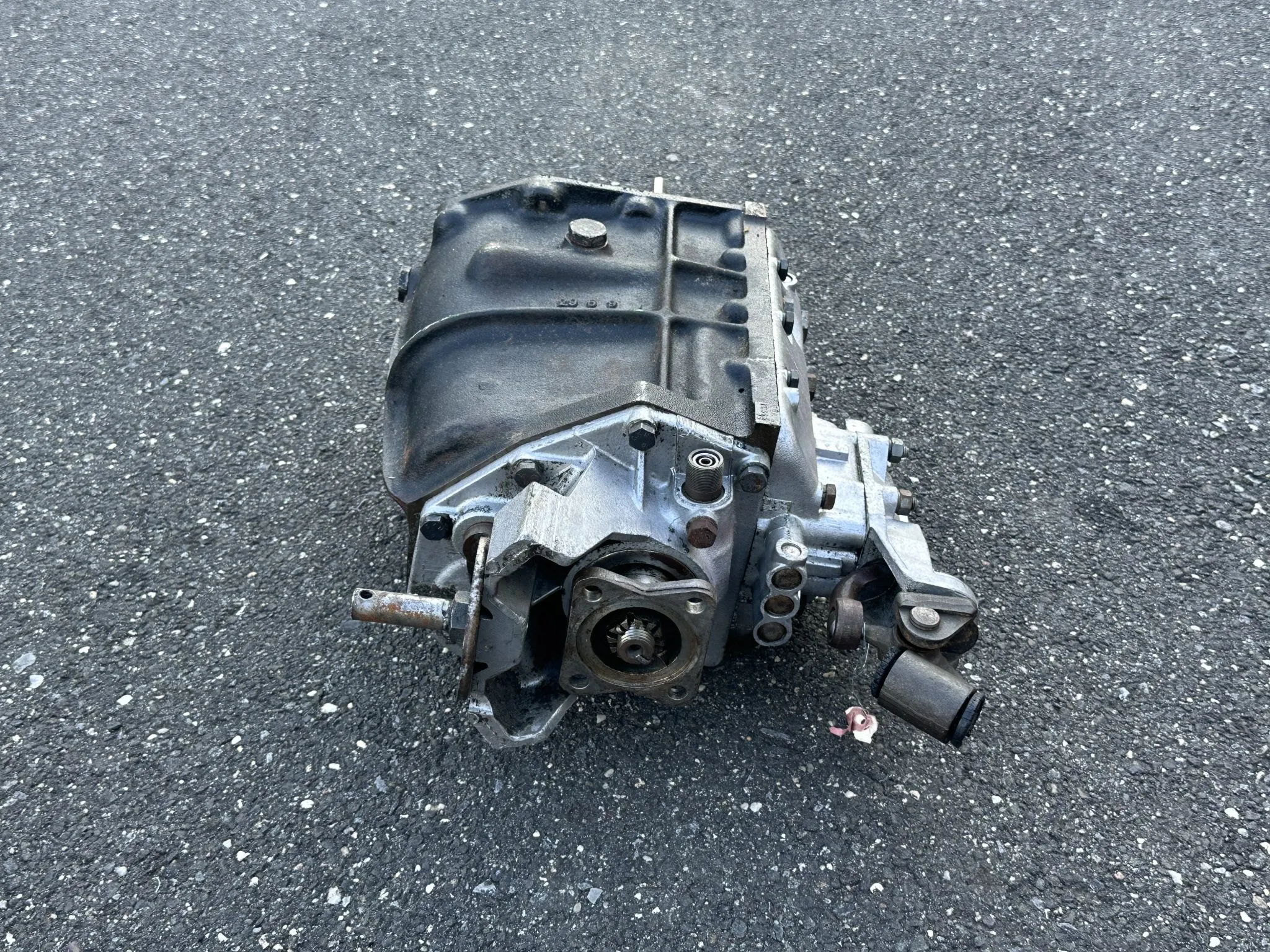

Jaguar XKE Series I 4-Speed Gearbox
4-speed manual gearbox in the Jaguar E-Type (XKE) Series I is a tale of two very different transmissions. Depending on whether you have a 3.8L or a 4.2L car, the driving experience and mechanical internals change completely.
Listing Details
- Four-Speed Manual Gearbox
- Produced for 1961–1967 Jaguar XKE Series I Models
- Designed by Moss
- Gearbox Stamping: EB 13333 JS
1. The “Moss Box” (1961–1964)
Used in all 3.8-liter E-Types, this gearbox was designed by the Moss Gear Company. It is legendary for its durability but notorious for its “agricultural” feel.
-
Non-Synchromesh First Gear: You cannot shift into 1st gear while the car is moving without a perfect “double-clutch” and rev-match, or you will hear a loud metal crunch.
-
Identification: Serial numbers usually start with the prefix EB (e.g.,
EB 1234 JS). -
The “Whine”: Features straight-cut 1st gears, which produce a distinct, loud mechanical whine that is perfectly normal for this unit.
-
Common Issue: A “stuck in first” syndrome often caused by wear in the interlock mechanism or the selector rods.
2. The Jaguar All-Synchro Box (1965–1967)
When Jaguar upgraded the E-Type to the 4.2-liter engine, they replaced the Moss box with a new, in-house designed fully synchronized 4-speed unit.
-
Full Synchromesh: Allows for smooth downshifts into 1st gear while rolling, making it significantly more user-friendly in modern traffic.
-
Identification: Serial numbers typically start with the prefix EJ (e.g.,
EJ 8577). -
Reverse Location: On the Moss box, Reverse is typically “left and up”; on the Jaguar all-synchro box, it moved to a different position (often “left and down” or protected by a lockout).
Comparison at a Glance
| Feature | Moss Box (3.8L) | Jaguar Box (4.2L) |
| Synchro on 1st? | No | Yes |
| Shift Speed | Slow / Deliberate | Moderate / Modern |
| Gear Cut | Straight-cut (1st/Rev) | Helical (Quieter) |
| Typical Value | $800 – $1,500 (Used) | $2,000 – $3,500 (Used) |
| Maintenance | Requires heavy SAE 90 oil | Uses lighter gear oils (e.g., Castrol) |
3. The Modern Alternative: 5-Speed Conversions
Many Series I owners remove these original 4-speed units to install a Tremec-based 5-speed (like the JT5 or kits from The Driven Man).
-
Why? The 5th gear acts as an overdrive, dropping highway RPMs from ~3,500 down to ~2,200, which saves the engine and makes long trips much quieter.
-
Value Tip: If you buy a car with a 5-speed already installed, always ask for the original 4-speed box. To a collector, a “matching numbers” car must have its original gearbox to command top-tier pricing.
