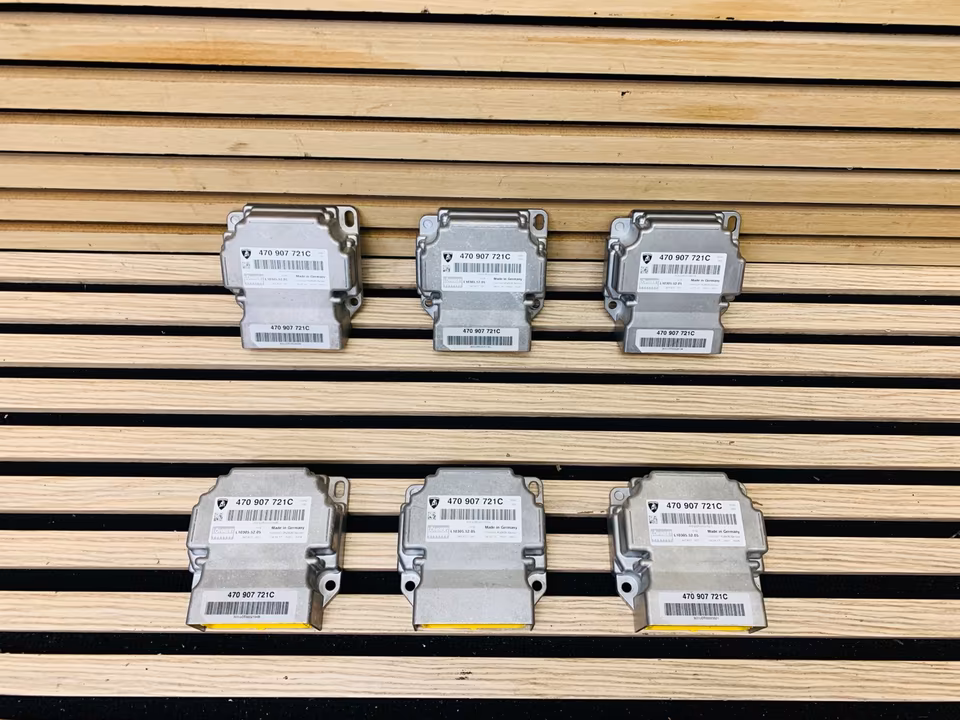

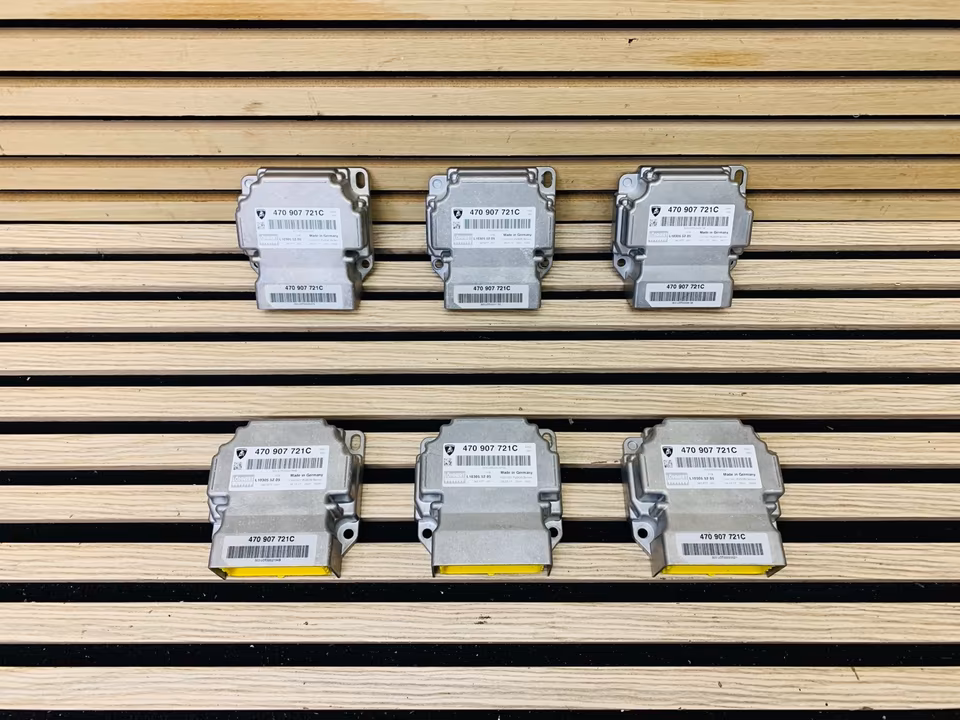

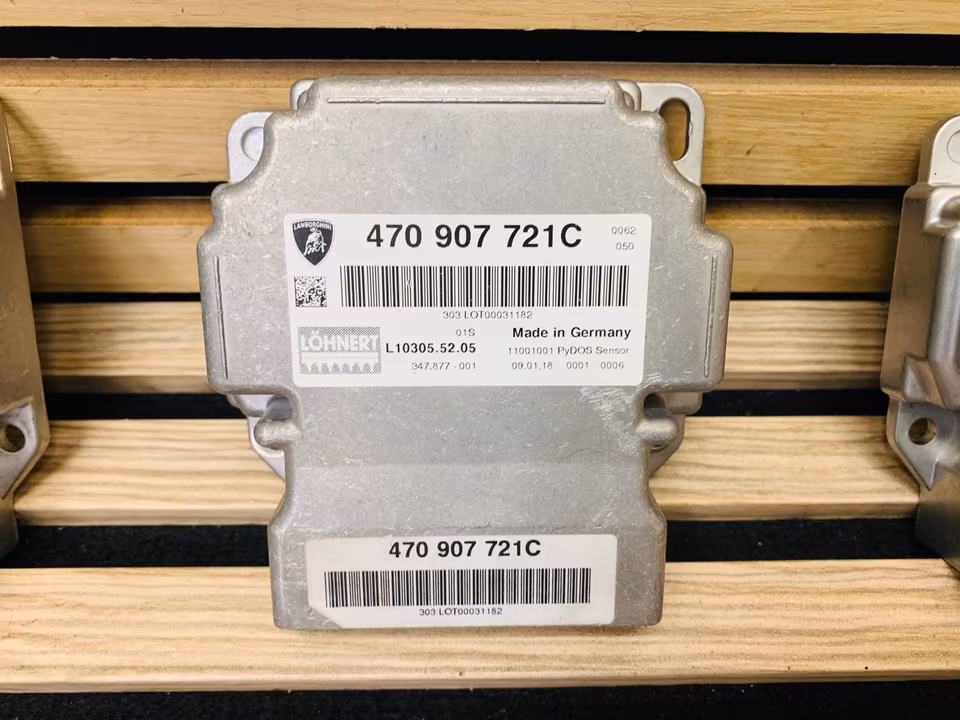

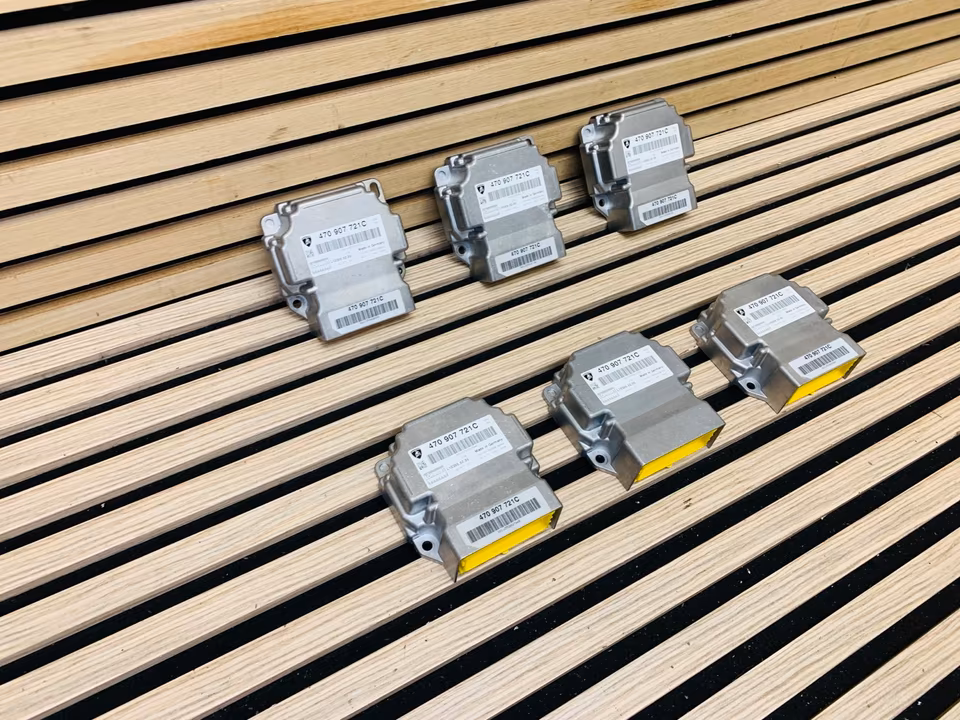

Lamborghini Huracan PyDos Sensor Module 470907721C

The 470907721C is a highly specialized electronic component within the Lamborghini Huracán and Aventador safety and chassis management ecosystem. Known as the PyDos Sensor, this module functions as a sophisticated “Pyrotechnic Battery Disconnect” and impact sensor. It is a critical link in the vehicle’s passive safety system, designed to protect the car’s electrical architecture and the occupants in the event of a significant collision or electrical surge.

Technical Specifications

• Compatibility: * Lamborghini Huracán (All variants including LP610-4, LP580-2, EVO, and STO).

  • Lamborghini Aventador (LP700-4, S, SVJ).

• Function: Monitoring and emergency disconnection of the high-current electrical circuit.

• Communication: Interfaced with the Airbag Control Module and the Engine Management System via the vehicle’s high-speed CAN bus.

• Revision: The “C” suffix denotes the third-generation hardware refinement, offering improved resistance to electromagnetic interference (EMI).

Key Features and Role

• Emergency Power Cut: In the event of an accident where the airbags are deployed, the PyDos module triggers a pyrotechnic charge that physically severs the main power connection. This prevents electrical fires by cutting off the high-current supply from the battery to the engine and fuel pumps.

• Crash Telemetry: The module contains sensitive accelerometers that contribute to the vehicle’s crash data recording, helping the onboard computers determine the severity of an impact.

• Battery Management: Beyond safety, it helps monitor battery health and voltage stability, ensuring that the sensitive electronics in the mid-engine bay are not damaged by voltage spikes.

Technical Installation & Safety Warning

The 470907721C is a “one-time use” safety device if the pyrotechnic charge has been fired.

1. Deployment Check: If you are sourcing this part for a repair, ensure the module has not been “tripped.” Once the internal fuse is blown by the airbag system, the module must be replaced; it cannot be reset.

2. Handling: Because this component contains a small pyrotechnic charge, it should be handled with the same care as an airbag. Do not drop or subject the module to high heat.

3. Programming: After installation, the vehicle’s Airbag and Gateway modules typically require a fault-code clearing and a “component protection” removal (online coding) to restore the electrical circuit to a functional state.
