McLaren 570s Lift System Pump

the Vehicle Lift System Pump for the McLaren 570S is a vital component for urban drivability, allowing the driver to raise the front axle by approximately 40mm to clear speed bumps and driveways.

By this point in the 570S lifecycle, the lift pump is a common replacement item as the hydraulic seals and electric motor can wear out over a decade of use.

1. Technical Identification & Part Numbers

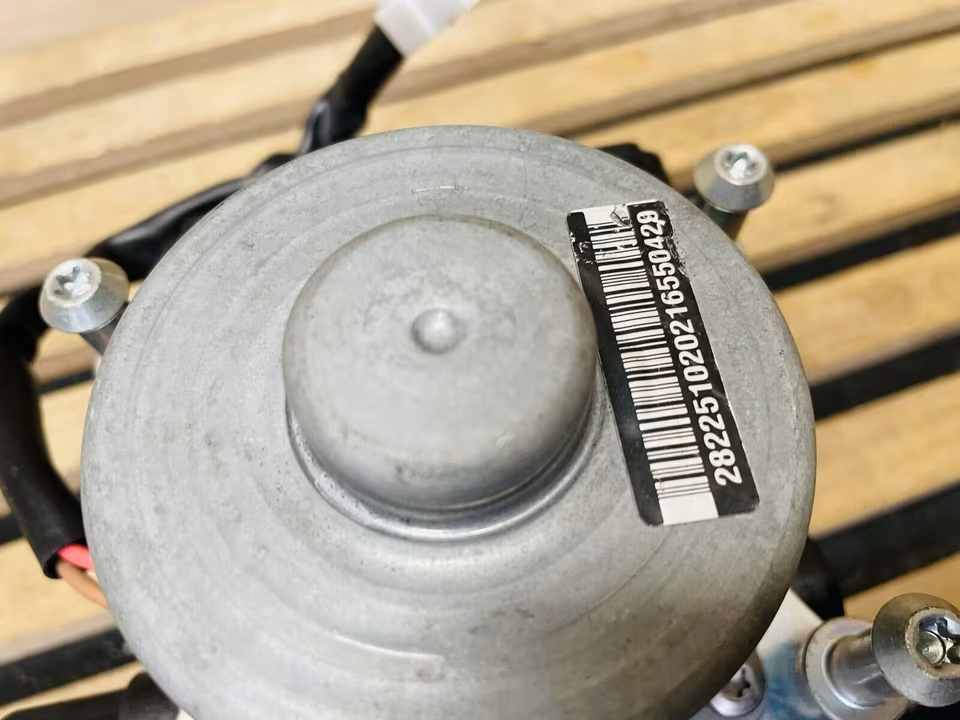

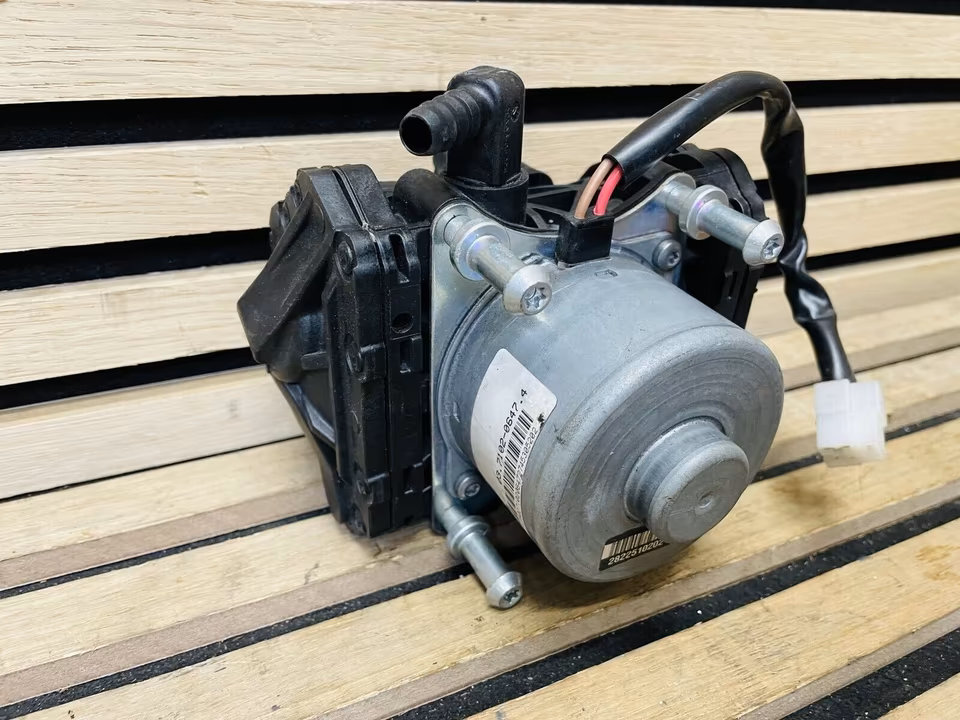

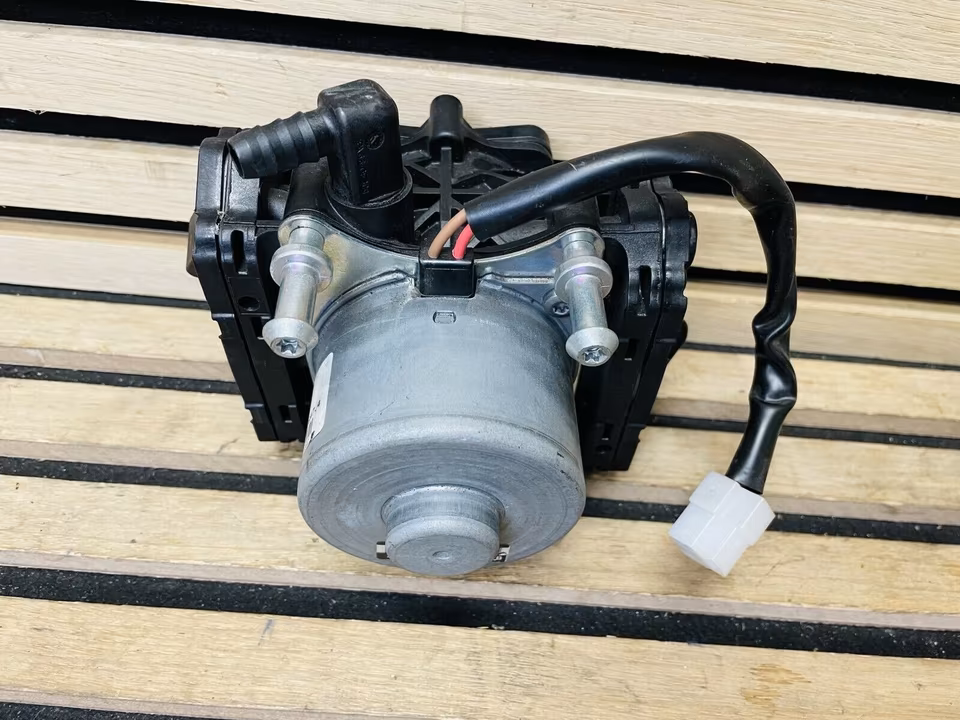

The lift system on the 570S is a hydraulic-over-mechanical setup. The “pump” is actually an electric motor mated to a hydraulic reservoir and valve block.

• Main Pump Assembly Part Number: 11G0356CP (Early revisions) or 11G0356CP.02 (Updated/more robust version).

• Location: The pump is typically located in the front luggage compartment (frunk) area, tucked behind the trim panels near the bulkhead.

• Fluid Type: Pentosin CHF 11S (or equivalent high-performance hydraulic fluid).
