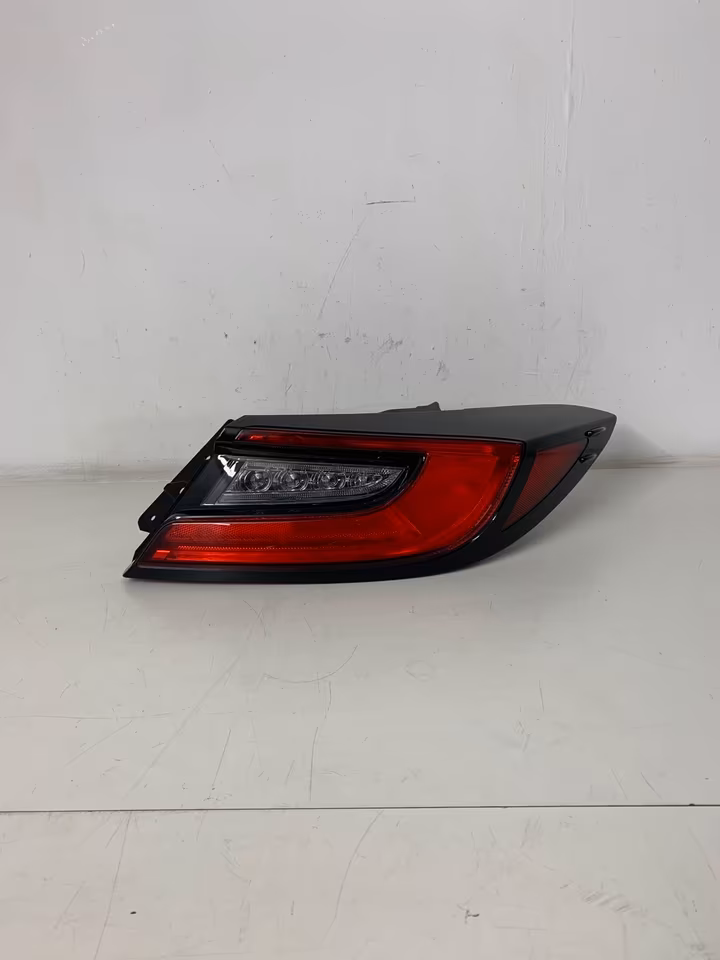

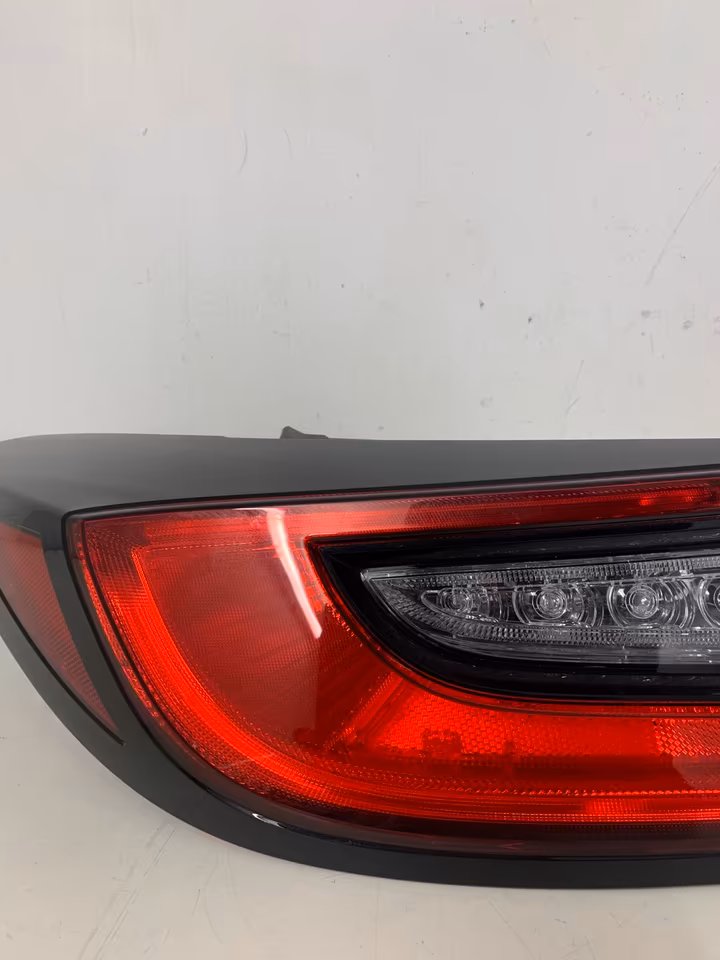

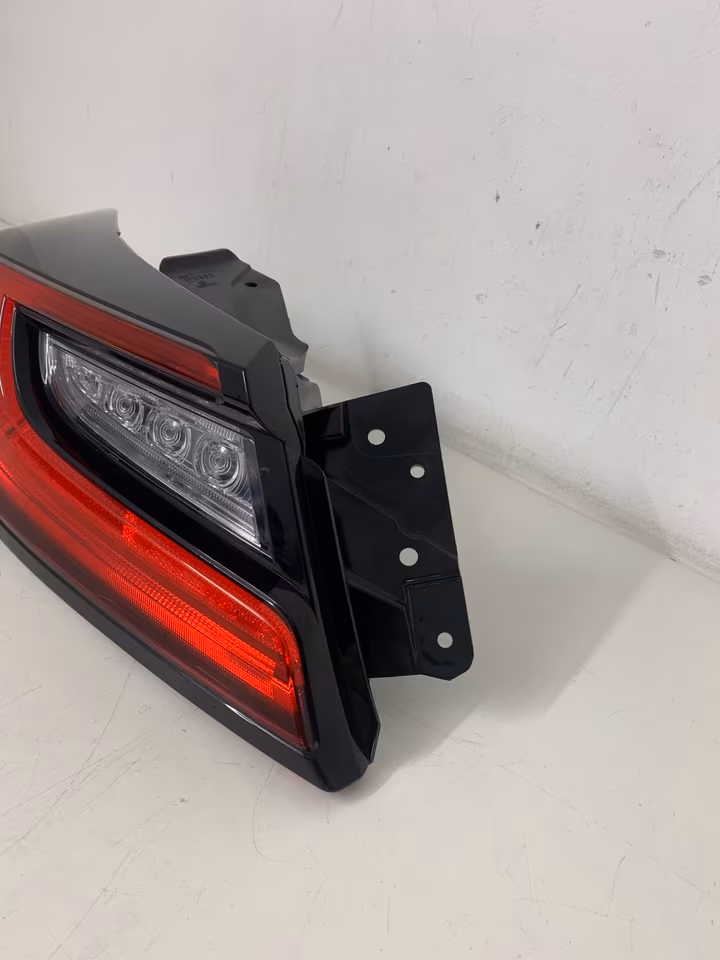

Subaru BRZ Toyota GR86 LED Taillight Set 84201CC011 84201CC001
Subaru BRZ and Toyota GR86 (2022–2025), these part numbers represent the complete Genuine OEM LED Taillight assemblies. While the cars share a chassis, these specific units are the “standard” high-visibility LED versions found on most North American and JDM trims.
Part Number Breakdown
These numbers refer to the individual Left and Right hand units:
-
84201CC011: Rear Combination Lamp Assembly – Right (Passenger Side)
-
84201CC001: Rear Combination Lamp Assembly – Left (Driver Side)
Technical Specifications
| Feature | Details |
| Light Source | Full Integrated LED (Parking, Brake, and Turn Signals). |
| Lens Type | Clear outer lens with internal red “C-clamp” signature lighting. |
| Housing Color | High-gloss black internal bezels. |
| Voltage | 12V (Plug-and-play harness included). |
| Interchangeability | 100% compatible between Toyota GR86 and Subaru BRZ (ZN8/ZD8). |
Key Features for Buyers & Sellers
If you are listing these for your website or verifying a purchase, keep these details in mind:
-
Integrated Aero Fins: The outer edge of the lens features small “vortex generator” fins. These are functional aerodynamic pieces designed to reduce air turbulence at the rear of the car.
-
Weather Sealing: These units come with a pre-installed perimeter foam gasket. Warning: If these are “take-off” parts, ensure the gasket hasn’t been compressed or torn, as this is the primary cause of condensation in the ZN8/ZD8 platform.
-
Blind Spot Detection (BSD): Note that the radar sensors for Blind Spot Detection are located behind the bumper, not inside the taillight housing itself. Replacing the light does not typically require recalibrating the BSD system.
