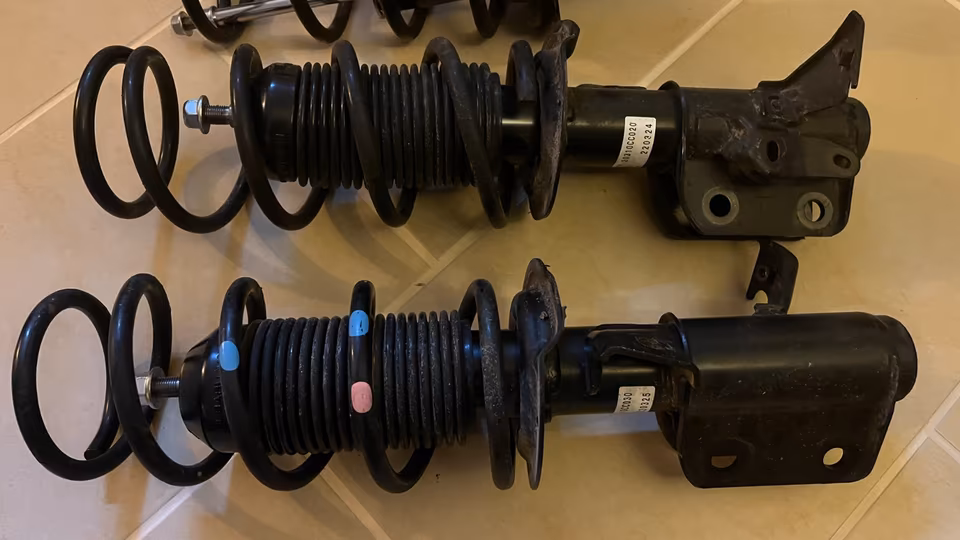

Toyota GR86 standard suspension
standard suspension for the Toyota GR86 (ZN8) is a track-tuned setup designed to be more aggressive and “oversteer-prone” compared to its sibling, the Subaru BRZ. Toyota specifically tuned this generation to be sharper and more communicative for enthusiasts.
1. System Architecture
-
Front: MacPherson strut with a focus on rigidity.
-
Rear: Double-wishbone (multi-link) design.
-
Chassis: Features a 50% increase in torsional rigidity over the previous GT86, allowing the standard dampers to work more effectively without body flex.
2. Standard vs. Performance Dampers
Depending on the year and trim, there are two primary OEM “standard” configurations:
| Component | Standard (Base/Premium) | Performance Pack (Hakone/TRUENO) |
| Manufacturer | Showa (Toyota Spec) | SACHS (ZF) |
| Characteristics | Balanced for street and light track. | Higher rebound damping; reduces body roll significantly. |
| P/N Example | SU003-09577 (Front Left) |
SU003-11420 (Front Left) |
3. Tuning Differences (GR86 vs. BRZ)
Toyota utilized specific hardware and software changes to give the GR86 a distinct “pro-drift” feel:
-
Spring Rates: The GR86 has 7% stiffer rear springs and 2.3% softer front springs than the BRZ. This encourages the rear end to rotate more easily under power.
-
Stabilizer Bars: * Front: The GR86 uses a solid front sway bar (18mm), whereas the BRZ uses a hollow one.
-
Rear: The GR86 rear sway bar is mounted directly to the subframe, while the BRZ mounts to the body.
-
-
Knuckles: The GR86 uses steel front knuckles (standard) for a specific weight/flex profile, compared to the aluminum knuckles found on the Subaru.
