BMW M3 S14 Engine
The BMW S14 is arguably the most successful touring car engine in history. Derived from the M10 block and the M88 (M1) head (minus two cylinders), it was specifically engineered to allow the E30 M3 to dominate Group A racing.
In 2026, the S14 has moved beyond a “high-performance engine” to a blue-chip collectible. Prices for parts and complete units have reached levels that make it one of the most expensive four-cylinder engines in the world.
1. Major Variants
Listing Details
- BMW E30 M3 Engine
- 2.3-Liter DOHC Inline-Four

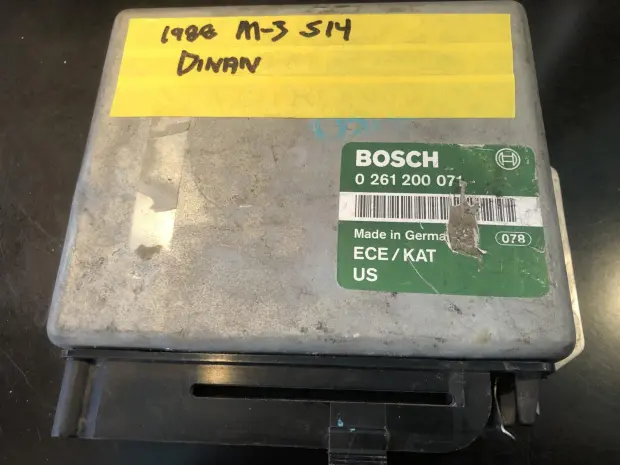

- Bosch Motronic ECU
- Dinan Chip
- Wiring Harness
- Clutch
- Flywheel
2. 2026 Market Valuation (Estimated USD)
Acquiring an S14 today is a major financial commitment. Value is dictated almost entirely by mileage and documentation of the timing chain service.
-
Complete S14B23 (Runner): $45,000 – $60,000
-
Complete S14B25 (Sport Evo): $85,000 – $110,000+
-
Rebuild Cost (Parts & Labor): $25,000 – $35,000 (using quality components like CP pistons and Carrillo rods).
3. Critical Technical Issues (2026 Status)
If you are buying or maintaining an S14 in 2026, these are the three “Non-Negotiables”:
-
Timing Chain Guides: The plastic guides become brittle with age (not just miles). If a guide snaps, the chain jumps, and the pistons meet the valves. Most owners now replace these every 60,000 miles (100,000 km) or every 10 years.
-
The “M5 Tensioner” Upgrade: A standard modification is replacing the original S14 chain tensioner with the one from the E36 M3 (S50) or E34 M5 (S38). It is a direct bolt-in and provides much more reliable hydraulic tension.
-
Throttle Body Sync: The Individual Throttle Bodies (ITBs) must be perfectly synchronized. If the linkage is worn or out of sync, the engine will have a rough idle and lose the iconic “bark” that characterizes the S14.
4. Maintenance in 2026
-
Valve Adjustments: The S14 uses a shim-and-bucket valvetrain. It requires a manual valve adjustment every 15,000 miles (25,000 km). Neglecting this leads to camshaft wear.
-
Oil Selection: High-zinc (ZDDP) oil is mandatory to protect the flat-tappet lifters. Most specialists recommend Motul 300V or Valvoline VR1 (20W-50 or 15W-50 depending on climate).
-

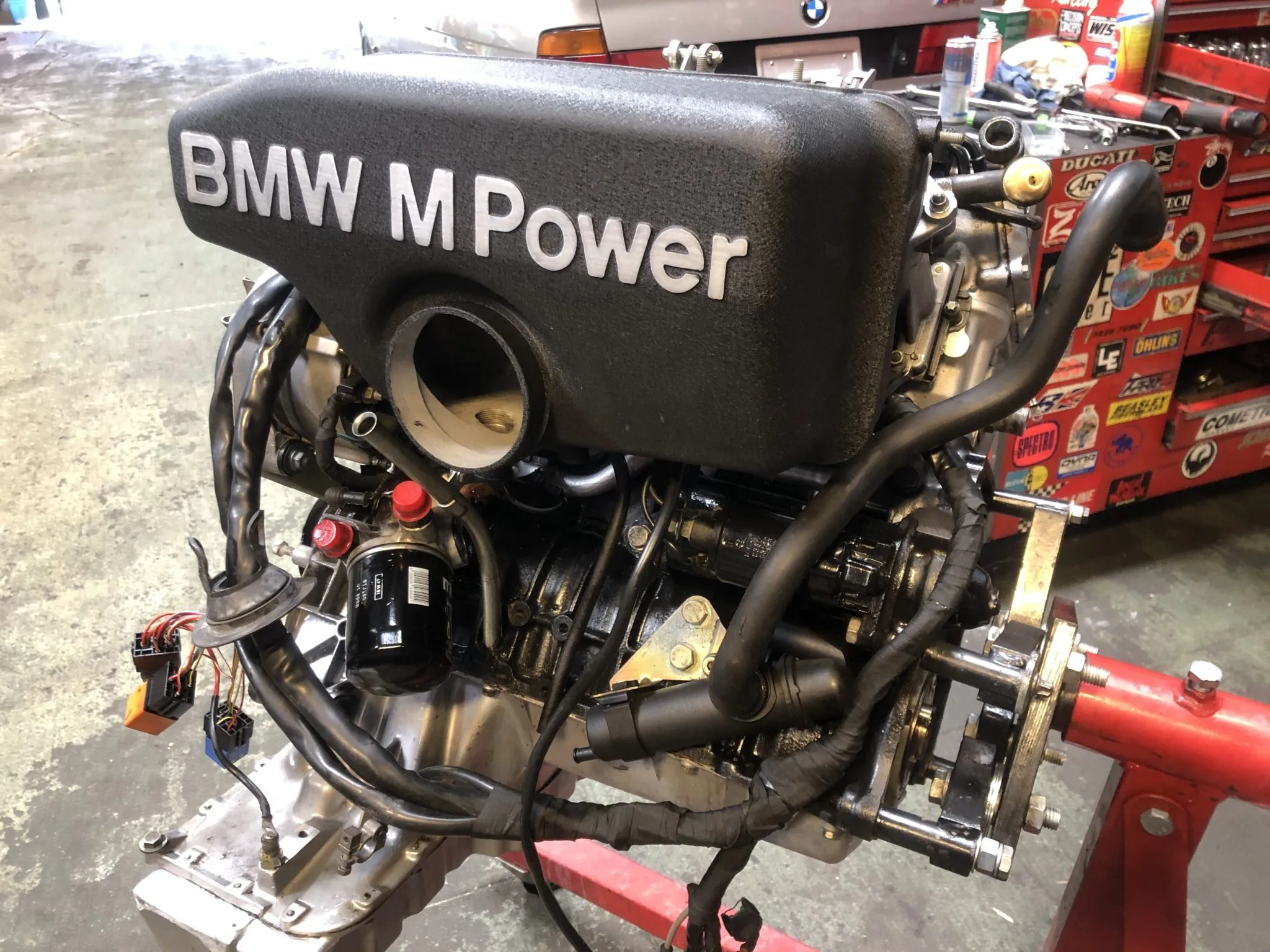

Airbox Cracks: The original carbon-fiber-reinforced plastic (CFRP) airboxes can develop hairline cracks near the mounting points, causing vacuum leaks.
5. 2026 Investment Outlook
As original E30 M3s continue to cross the $150k–$250k mark at auctions, the demand for numbers-matching engines has skyrocketed. If you have an S14 with a block serial number that matches a documented chassis, its value is roughly 30% higher than a “replacement” block.
Pro Tip: In 2026, many owners are removing their original S14s and crating them to preserve value, instead swapping in “built” 2.5L stroker S14s for track or spirited road use.
