Porsche 964 Motronic control unit ECU 96461812400 Bosch 0261
964.618.124.00 is the standard Motronic engine management computer for the Porsche 964 Carrera 2 and Carrera 4 models (1989–1994) featuring the M64/01 engine.
The full Bosch part number typically associated with this unit is 0 261 200 473.
Technical Roles
This unit is the primary “brain” for the 3.6L flat-six. Unlike earlier Porsches that split fuel and ignition, this Motronic system integrates both into a single processor to manage:
-
Sequential Fuel Injection: Precise timing for each cylinder’s injector.
-
Dual Ignition System: Managing the two spark plugs per cylinder, which is a hallmark of the 964 engine.
-
Idle Stabilization: Controlling the Idle Control Valve (ICV) to maintain a steady $880 \pm 40 \text{ RPM}$.
-
Knock Control: Utilizing two knock sensors to retard timing if low-quality fuel is detected.
Common Failure Points
These units are now over 30 years old and are prone to specific electronic aging issues:
-
DME Relay Issues: While the relay is external, a faulty relay can cause the ECU to “spike” or lose power intermittently.
-
Leaking Capacitors: The electrolytic capacitors inside the 0261 series often leak over time, causing acidic damage to the circuit board traces.
-

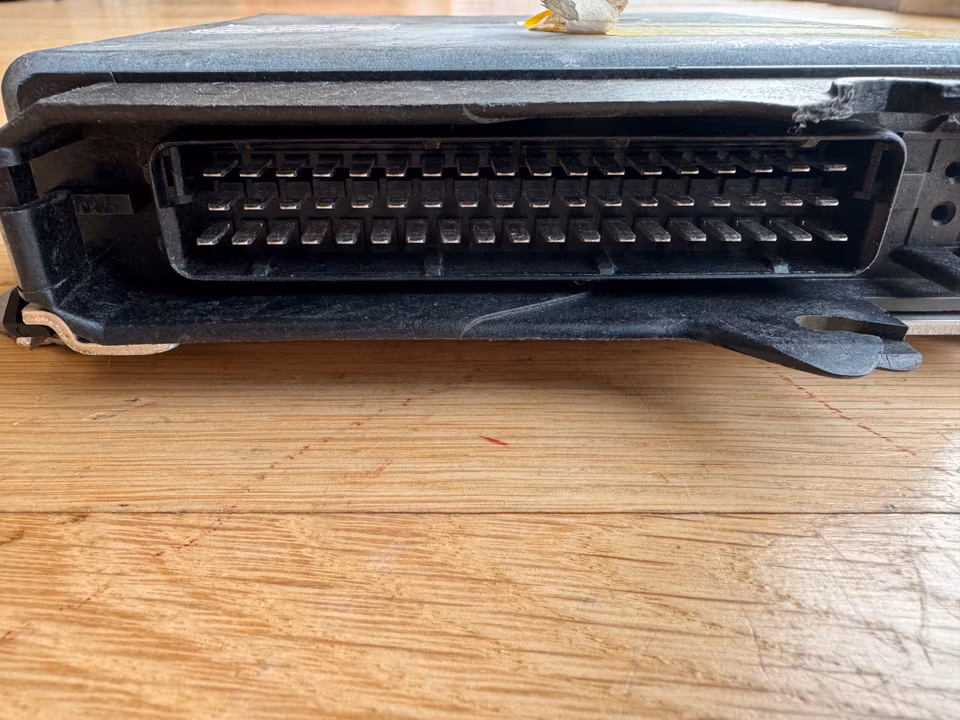

Solder Joint Fatigue: Vibration and thermal expansion can crack the solder joints on the main header pins.
-
Corroded Ground Traces: If the chassis grounds are poor, the ECU can attempt to ground itself through the internal board, causing “burnt” traces.
Quick Reference Specs
| Component | Specification |
| Model Compatibility | Porsche 964 C2 / C4 / RS |
| Engine Code | M64.01 / M64.02 / M64.03 |
| Processor | Intel 8051-based architecture |
| EPROM | 28-pin (Often upgraded with performance chips) |
Performance Upgrades
Because this unit uses a socketed EPROM chip, it is very common to find these with aftermarket tuning. A performance chip in a 964 ECU typically:
-
Removes the “flat spot” in the $2,500\text{ to }3,000 \text{ RPM}$ range.
-
Increases the rev limit slightly (standard is $6,700 \text{ RPM}$).
-
Optimizes timing for $93+$ octane fuel, resulting in roughly $+12\text{ to }15 \text{ hp}$.
Maintenance Tip: If your 964 is experiencing a “no-start” condition or random stalling, always check the DME Relay (993.615.227.01) first before condemning the Motronic unit. It is a much cheaper and more common point of failure.
